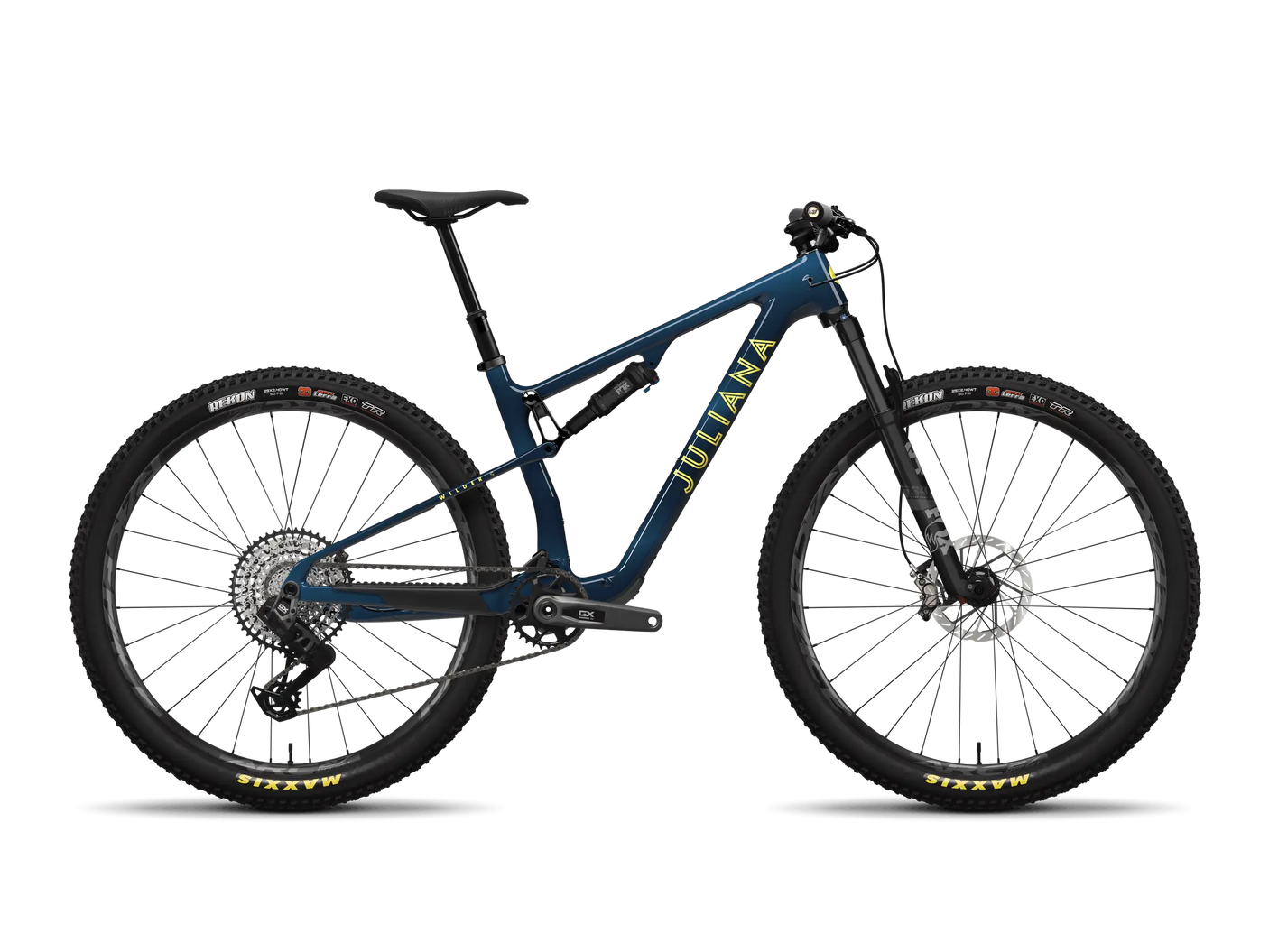

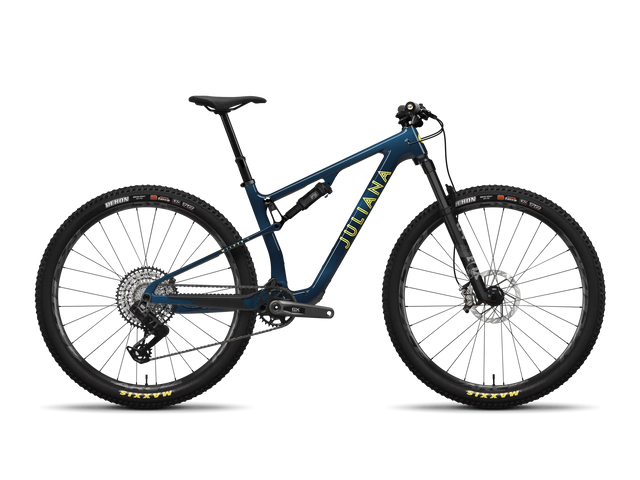

Juliana Wilder
$6,650.00
Unit price /
Unavailable
Select a build kit for an indication of price and please contact us for lead times and availability.
Juliana Wilder - Wilder CC FOX Float SL Factory DPS 115mm FRAME ONLY is backordered and will ship as soon as it is back in stock.
For more info on availability of this bike, please contact us on 03 384 0355 or click below.
Tap Into Your Wilder Side
We've taken all the acceleration and out-of-the-saddle sprint qualities of a carbon XC race rocket and fused them with a rear end that still rails corners like a hardcore trail bike. The result? A bike fast enough to win, fun enough to frolick.
Meet the wild child of XC.
Available in: Carbon C & CC
Wheel size: 29""
Front travel: 120
Rear travel: 110
Wilder Frame Specifications
| Suspension System | Superlight™ |
| Front Derailleur | No compatibility |
| Headset/Headtube | Integrated (IS41/52) |
| Seat Post | 31.6mm |
| Seat Clamp | 36.4mm |
| Eye to Eye length | 190mm |
| Stroke | 45mm |
| Fork Compatibility | 120mm |
| BB Shell | 73mm Threaded |
| Max Tire Size | 2.4" |
| Max Chainring Size | 36t |
| Water Bottle Mounts | 2 inside main triangle | 1 under downtube |
| Shock Mounting Bushing Front | 20x8 |
| Shock Mounting Bushing Rear | 20x8 |
| Brake Mount | 160 PM |
| Fork Offset | 44mm |
Geometry
All units are in millimeters or degrees.
| S | M | L | |
|---|---|---|---|
| Reach | 412.3 | 437.8 | 457.5 |
| Stack | 587.4 | 597 | 606.5 |
| Head Tube Angle | 67.1º | 67.1º | 67.1º |
| Seat Tube Length | 405 | 430 | 470 |
| Front Center | 695 | 723.7 | 747.4 |
| BB Height | 339.9 | 339.7 | 339.6 |
| BB Drop | 32.6 | 32.8 | 32.9 |
| Wheelbase | 1125.8 | 1157 | 1183.2 |
| Rear Center | 430.8 | 433.3 | 435.8 |
| Head Tube Length | 90 | 100 | 110 |
| Top Tube Length | 568.4 | 597.3 | 621.4 |
| Seat Tube Angle | 75.1º | 75º | 74.9º |
| Standover Height | 743.5 | 746.4 | 745.4 |
