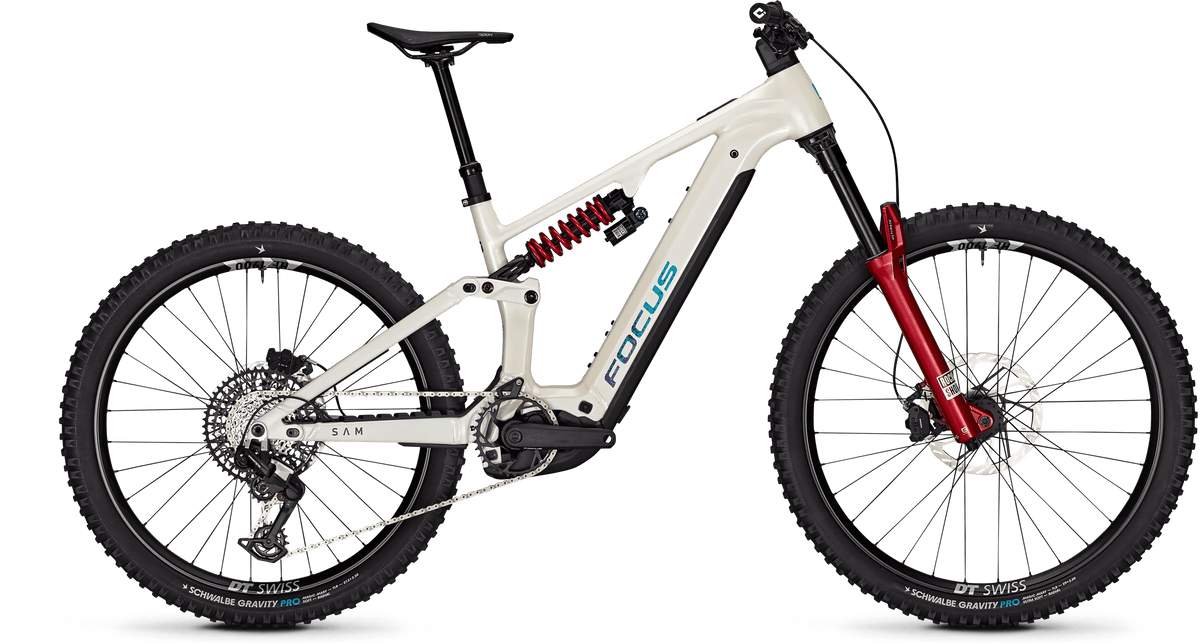

Focus Sam 9

Designed for down

• Aluminium frame with Bosch Performance Line CX e-drive 800 Wh battery

• Rockshox Zeb Ultimate fork and Vivid Coil Ultimate shock

• SRAM Eagle 90 Transmission 12-speed
• DT Swiss HX1700 mullet wheels

Specs

• Frame 7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
• Special Features Geometry adjustment of head angle and chainstay length, Tool bag (exluding size S), Hidden AirTag or Chipolo holder
• Fork RockShox ZEB Ultimate, LinearXL, Charger 3.2 RC2 w/ ButterCups, 170 mm
• Shock RockShox Vivid Ultimate, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm
• Motor Bosch Performance Line CX, 85 NM, 120 NM update via Flow App
• Battery Bosch PowerTube Li-Ion (800 Wh)

• Display & Remote Bosch Mini Remote + System Controller
• Shifter SRAM Eagle 90
• Rear derailleur SRAM Eagle 90, 12-speed
• Cassette SRAM GX EAGLE Transmission, 10-52T
• Chain SRAM GX Eagle Transmission
• Crankset Samox, 160 mm
• Chainring SRAM T-Type, 36 T
• Handlebar OneUp Riser, width: 800 mm, rise: 35 mm
• Grips ODI Elite Pro
• Stem FOCUS C.I.S. 2.0, 40 mm
• Headset ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
• Saddle fi'zi:k Ridon X5
• Seatpost Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 34,9 mm
• Brakes front | rear SRAM Maven SLV, 4-piston | SRAM Maven SLV, 4-piston
• Disc brake rotors SRAM HS2, front: 220 mm / rear: 220 mm
• Wheelset DT Swiss HF 1900, alloy, front: 29", rear: 27,5"
• Tyres front | rear Schwalbe Magic Marry, Gravity Pro, Addix Ultra Soft, 29 x 2,5" | Schwalbe Magic Marry, Gravity Pro, Addix Soft, 27,5 x 2,5"
• Weight 27.3 kg (800 Wh)
• Permissible system weight 150 kg

Geometry
