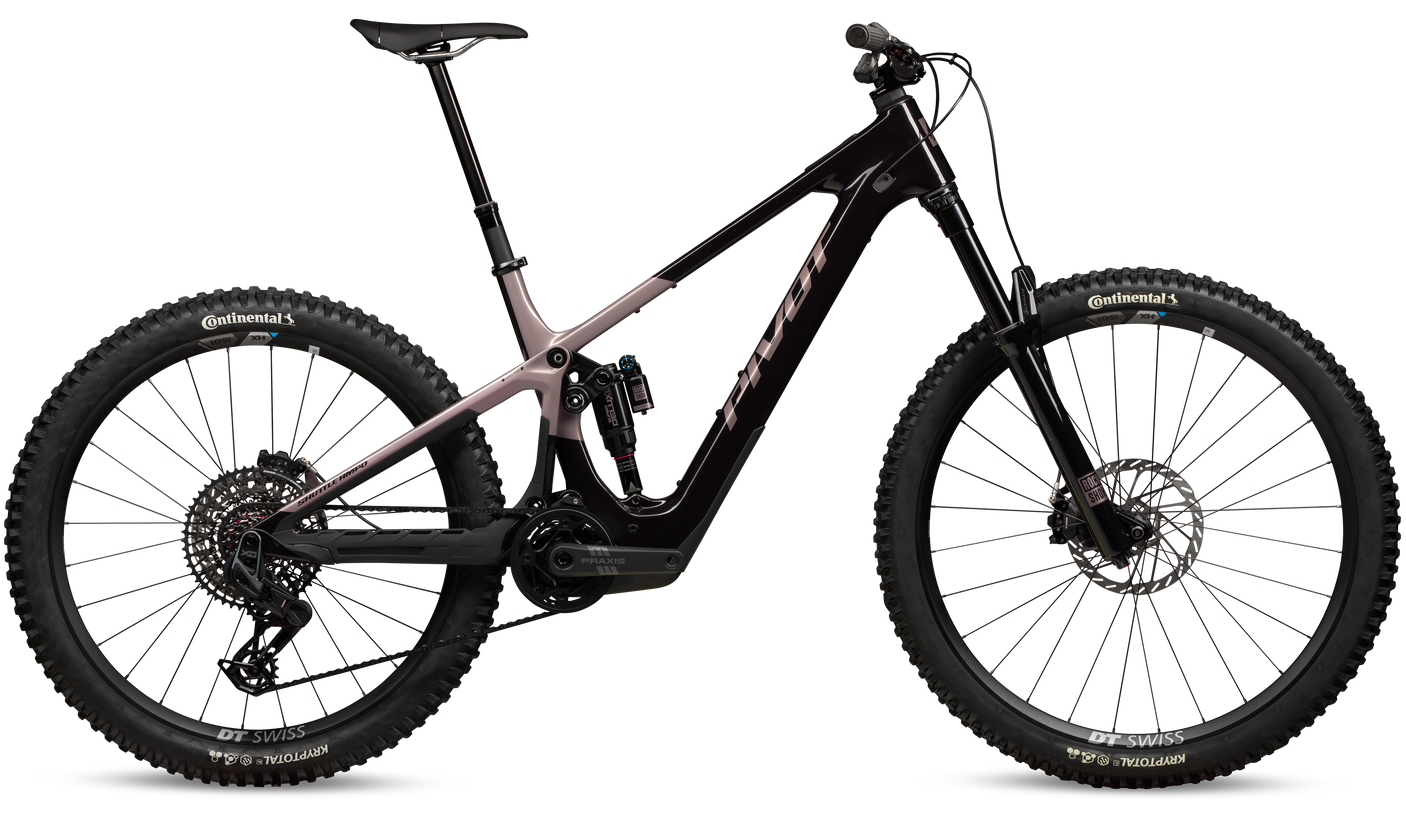

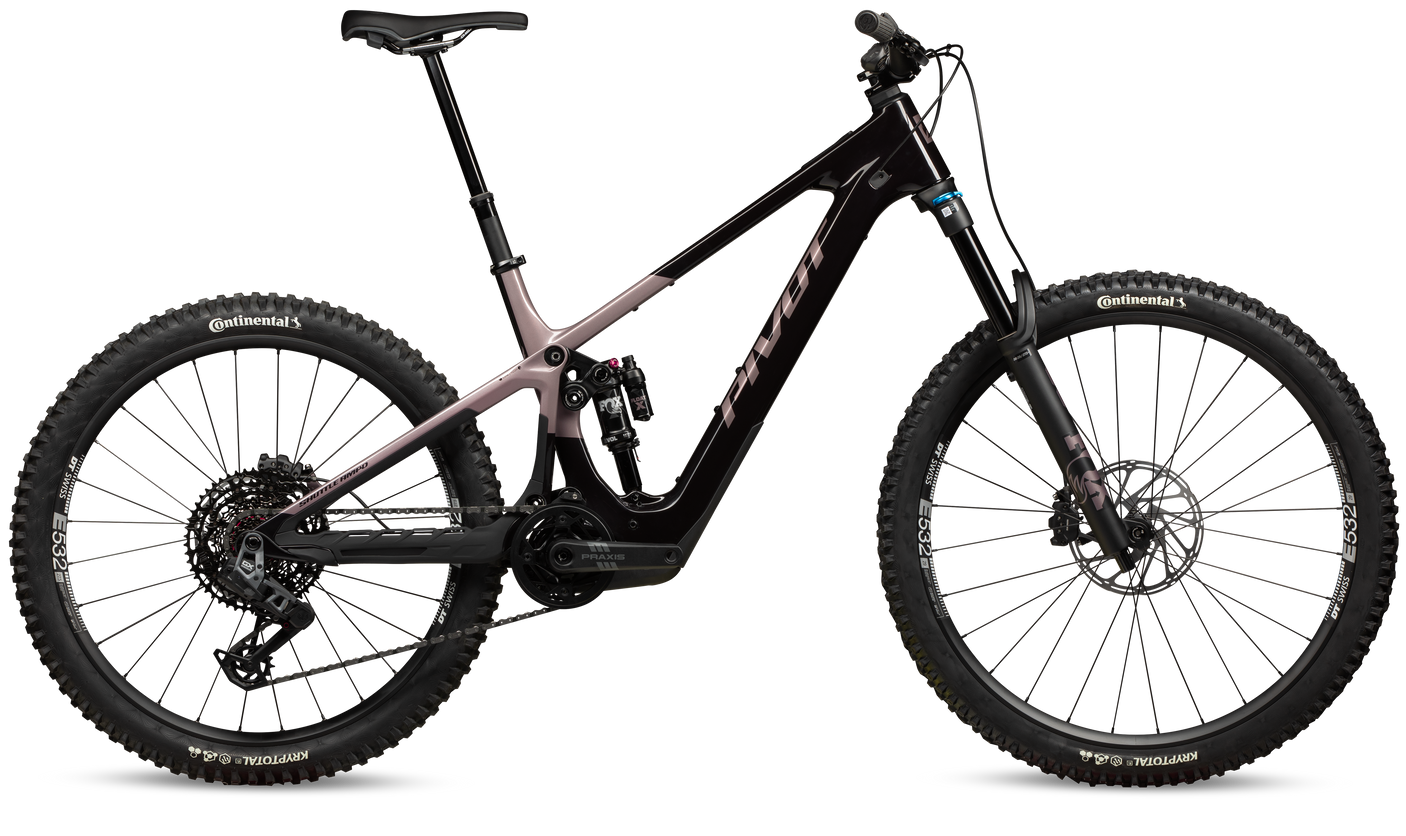

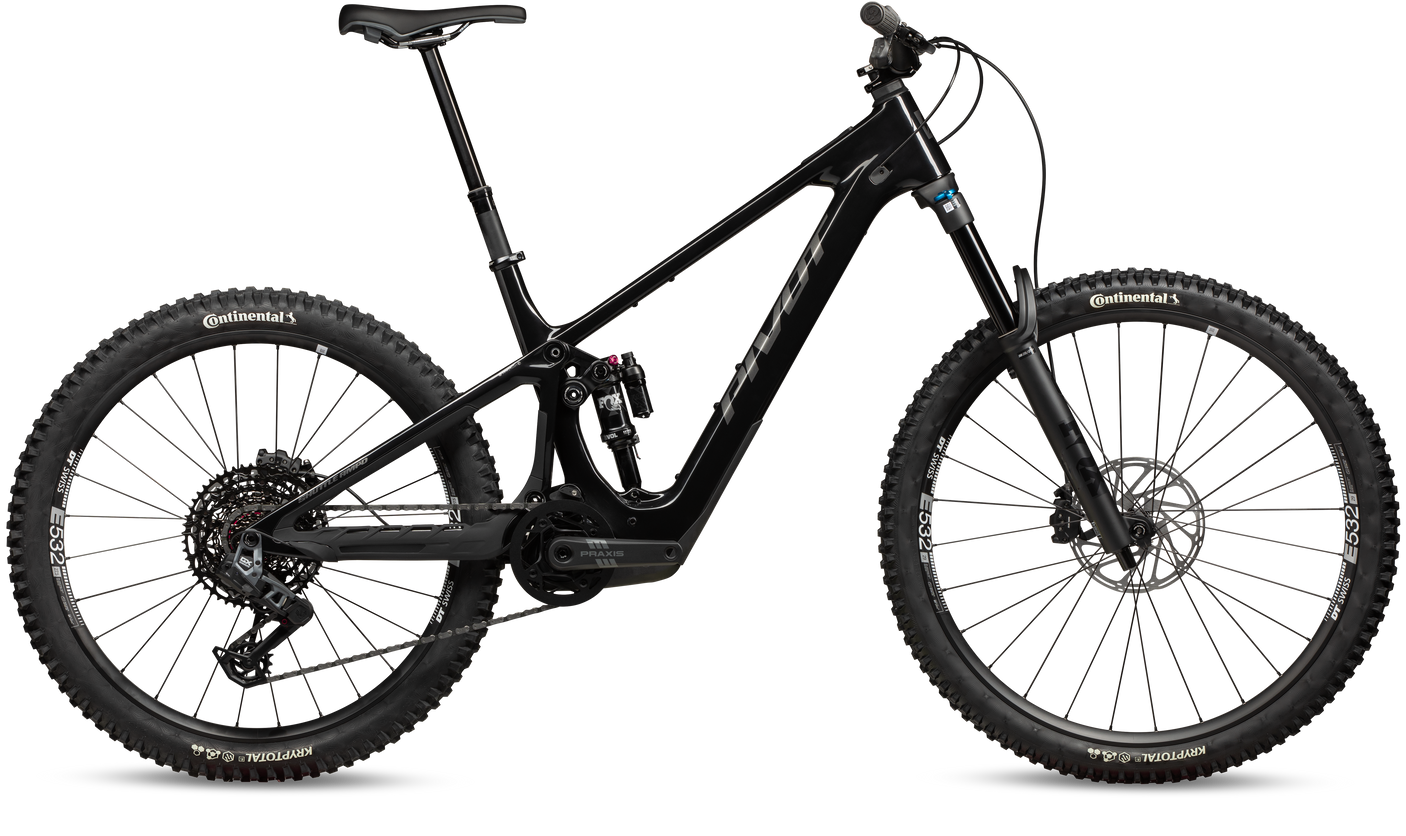

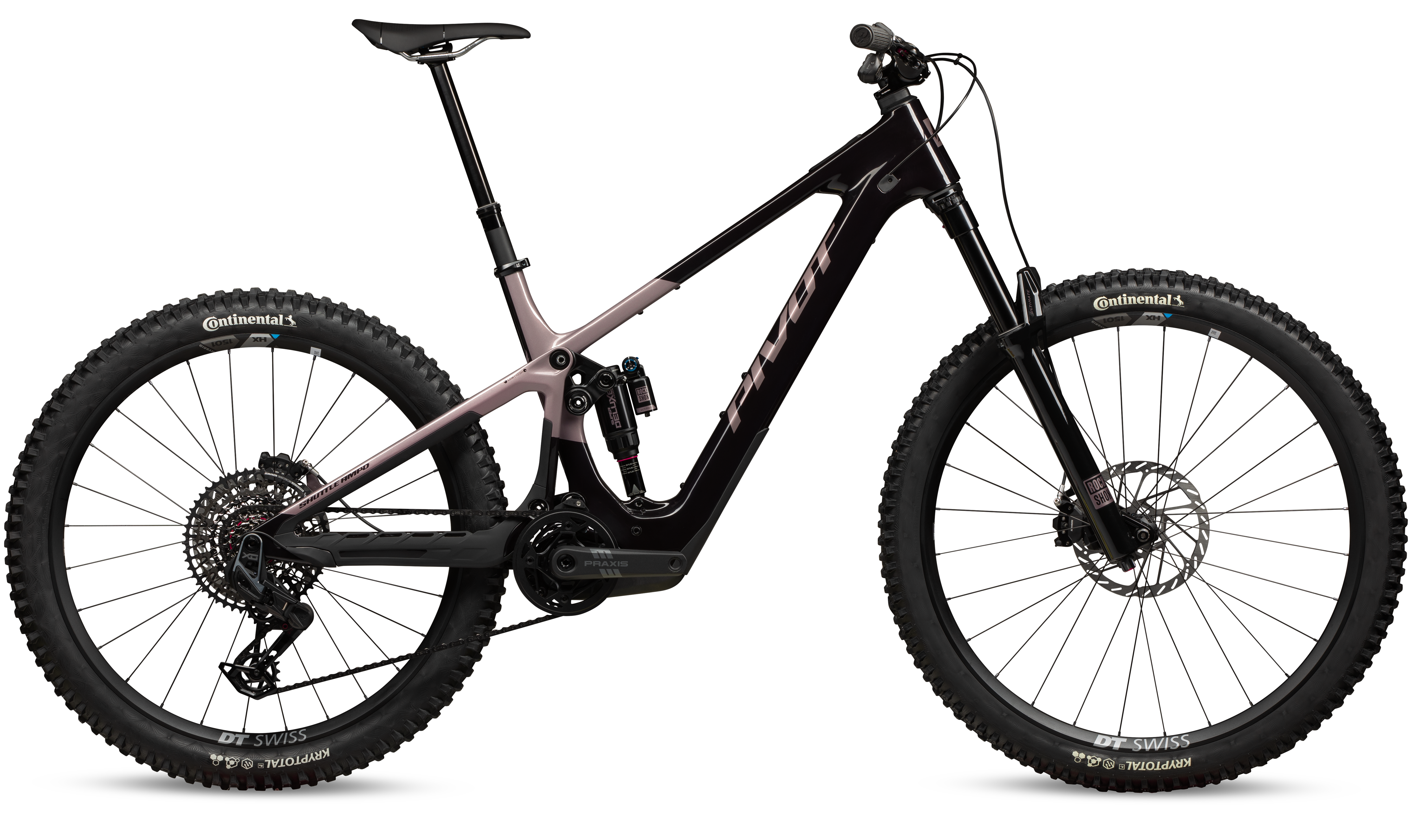

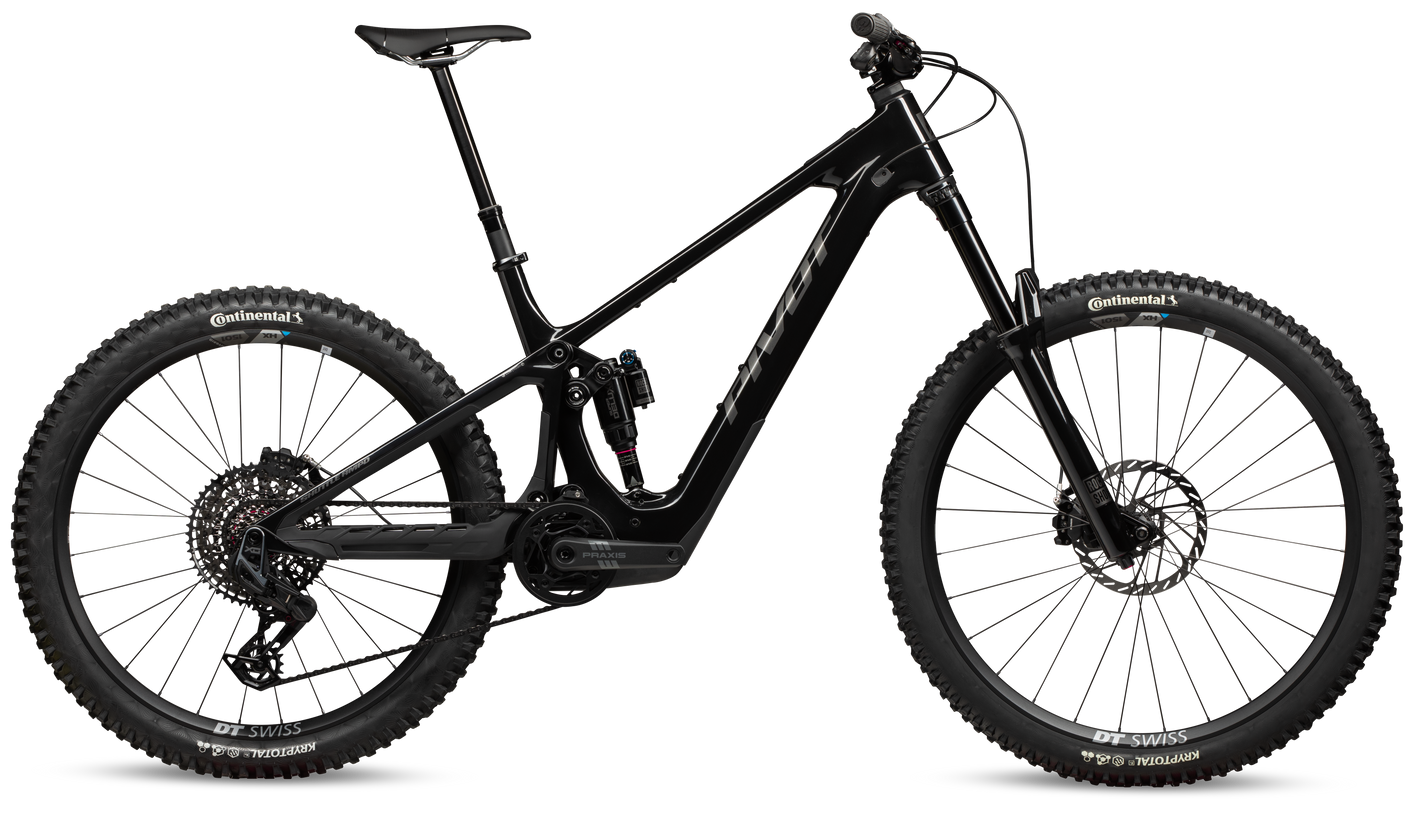

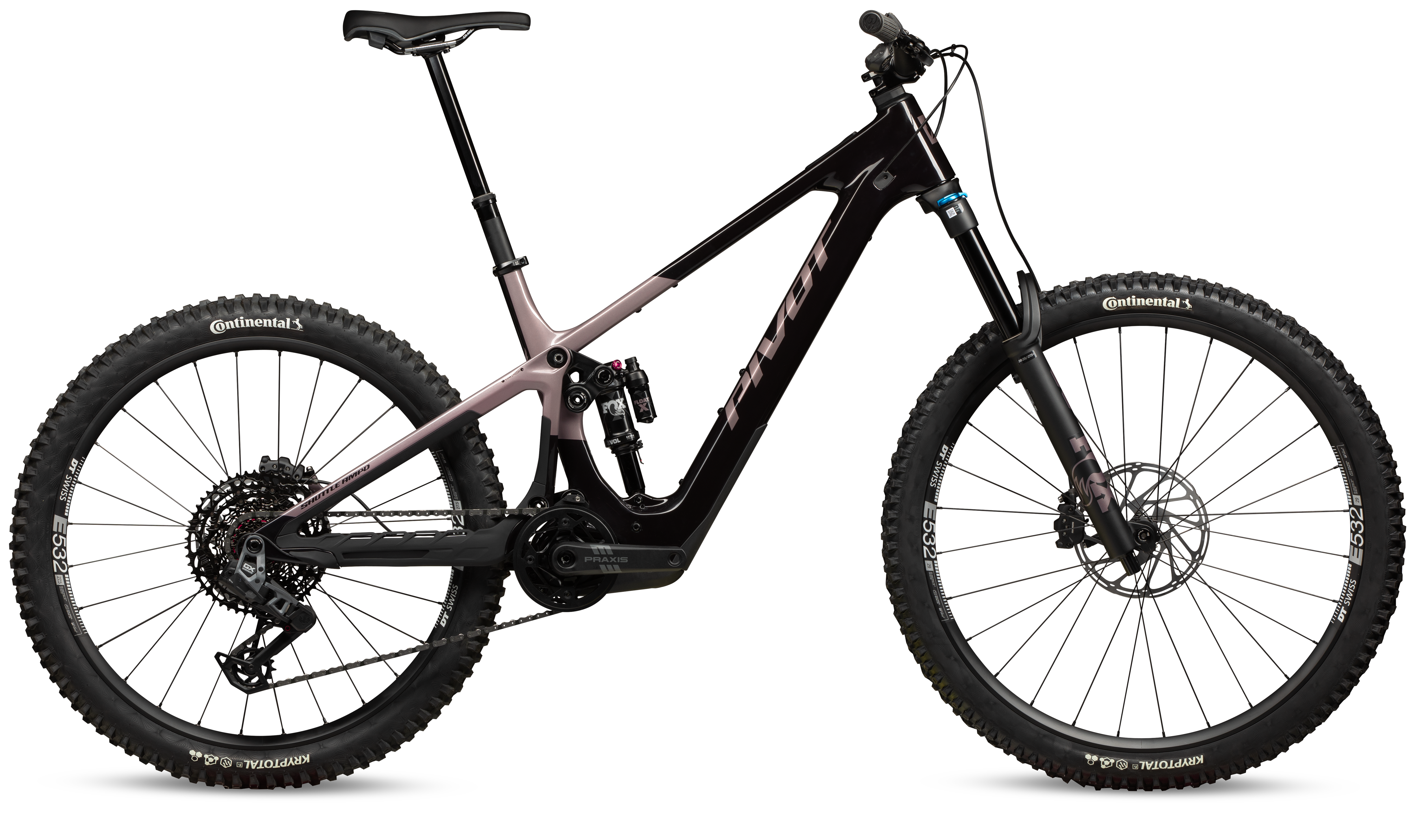

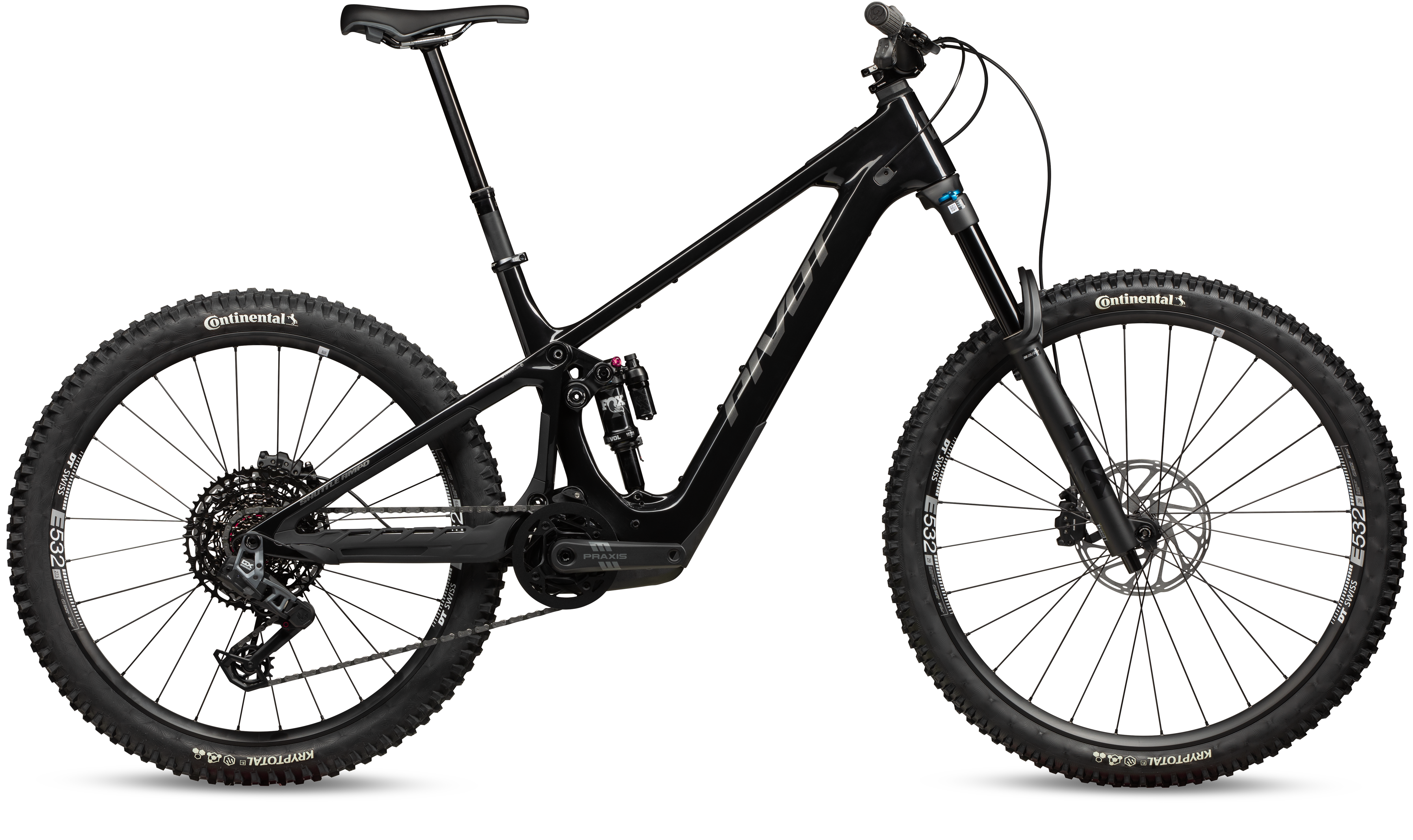

Dialed Disruption

The Shuttle AMP’d brings a full-volume assault to the mountain. Built to shred with sharp reactions, lively handling and a ride that stays settled even when the trail is not. The Shuttle AMP’d stays planted and aggressive through it all.

This one goes to eleven

Built for riders who don’t dial it back — more drive, more bite, more command — the AMP’d is a showcase of what the Avinox M2S can unleash when paired with a chassis forged through two decades of suspension design. The platform works in harmony with the motor, driving the rear wheel, and turning power into speed. dw-link's renowned kinematics maintain traction while providing a plush but supportive foundation that wants to slash turns and pop off even the smallest side hits. Pedaling is distinctly efficient; impacts are dead calm—but the trail stays raw and alive. With 150mm of rear travel, a 160mm up front and a gravity-derived build kit, the AMP’d delivers a ride that feels alert, connected and quietly rebellious.

Smashin' watts

The Avinox M2S drive unit packs serious performance into a compact 2.6 kg package, producing 130 Nm of torque and up to 1300 W of peak power for instant acceleration with smooth control on technical terrain. An integrated 800 Wh battery delivers extended range while its compact cross-section enables slimmer frame profiles and cleaner integration. When it’s time to recharge, the Avinox 508 W fast charger—standard on Pro and Team builds—gets you powered back up at the pace of a snack break.

Ride GX Eagle Specs

• REAR SHOCK: Fox Performance Float X

• FORK: Fox Performance 38 29”, 44mm offset, GRIP - 1 60mm

• HEADSET: Pivot Precision Sealed Cartridge

• REAR DERAILLEUR: Sram GX Eagle Transmission 12-Speed

• SHIFTER: Sram AXS Pod Controller

• CASSETTE: Sram XS-1270 Eagle Transmission 10 -52t

• CHAIN: Sram Eagle 70 Flattop 12-Speed

• CRANKSET: Praxis Alloy eCranks E-MTB 34t - 155mm

• BRAKES: Sram Maven 4-piston

• ROTORS: Sram Centerline 2.0 6 Bol t | F - 2 00mm / R - 2 00mm

• DRIVE UNIT: Avinox M2S

• BATTERY: Avinox 800Wh

• DISPLAY: Avinox OLED Control Display w/ L/R Remotes

• CHARGER: Avinox 168W Charger

• HANDLEBAR: Phoenix Race Aluminum- 20mm Rise 780mm(XS-SM), 35mm Rise
• 780mm(MD-XL)

• GRIPS: Phoenix Factory Lock-On

• STEM: Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)

• SEATPOST: OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL))

• SADDLE: Pivot Team E-Bike

• WHEELS: DT Swiss E532, 30mm - M ixed - M ixed | F - 1 5x110 / R - 1 2x157

• FRONT TIRE: Continental Kryptotal-F 29” x 2.4” Super Soft Compound Enduro Casing

• REAR TIRE: Continental Kryptotal-R 27.5” x 2.6” S oft Compound Enduro Casing

Pro X0 Eagle Specs

• REAR SHOCK: RockShox Super Deluxe Ultimate

• FORK: RockShox Zeb Ultimate 29”, 44mm offset, 160mm

• HEADSET: Pivot Precision Sealed Cartridge

• REAR DERAILLEUR: Sram X0 Eagle Transmission 12-Speed

• SHIFTER: Sram AXS Pod Controller

• CASSETTE: Sram GX 1275 Eagle Transmission 10 -52t

• CHAIN: Sram X0 Eagle Flattop 12-Speed
• CRANKSET: Praxis Alloy eCranks E-MTB 34t - 155mm

• BRAKES: Sram Maven Silver 4-piston

• ROTORS: Sram HS2 6 bol t | F - 2 00mm / R - 2 00mm

• DRIVE UNIT: Avinox M2S

• BATTERY: Avinox 800Wh

• DISPLAY: Avinox OLED Control Display w/ L/R Remotes

• CHARGER: Avinox 508W Fast Charger

• HANDLEBAR: Phoenix Team Carbon - 20mm Rise 760mm(XS), 20mm Rise 780mm(SM), 35mm Rise 780mm(MD-XL)

• GRIPS: Phoenix Factory Lock-On

• STEM: Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)

• SEATPOST: OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL)

• SADDLE: Pivot Team E-Bike

• WHEELS: DT Swiss Hybrid HX1501, 30mm - M ixed | F - 1 5x110 / R - 1 2x157

• FRONT TIRE: Continental Kryptotal-F 29” x 2.4” Super Soft Compound Enduro Casing

• REAR TIRE: Continental Kryptotal-R 27.5” x 2.6” S oft Compound Enduro Casing

Geometry

Flip Chip in High mode

		XS	SM	MD	LG	XL
A	Seat Tube Length (C-T)	34.3 cm	37.8 cm	39.87 cm	43.18 cm	47.0 cm
B	Top Tube Length (Eff.)	57.46 cm	60.44 cm	63.18 cm	64.91 cm	67.15 cm
C	Head Tube Length	9.5 cm	11.0 cm	12.0 cm	13.0 cm	14.0 cm
D	Head Tube Angle	63.7°	63.7°	63.7°	63.7°	63.7°
E	Seat Tube Angle (Eff.)	76.5°	76.5°	76.5°	76.5°	76.5°
F	Chain Stay Length	44.3 cm	44.3 cm	44.3 cm	44.3 cm	44.3 cm
G	Bottom Bracket Height	34.0 cm	34.0 cm	34.0 cm	34.0 cm	34.0 cm
H	Bottom Bracket Drop	1.8 cm	1.8 cm	1.8 cm	1.8 cm	1.8 cm
I	Standover Height	64.5 cm	66.3 cm	67.1 cm	67.1 cm	68.2 cm
J	Wheelbase	118.78 cm	121.76 cm	124.69 cm	126.62 cm	129.05 cm
	Stack	61.34 cm	63.3 cm	64.22 cm	65.14 cm	66.05 cm
	Reach	42.0 cm	43.5 cm	46.0 cm	47.5 cm	49.5 cm
