PILO - SMALL PARTS

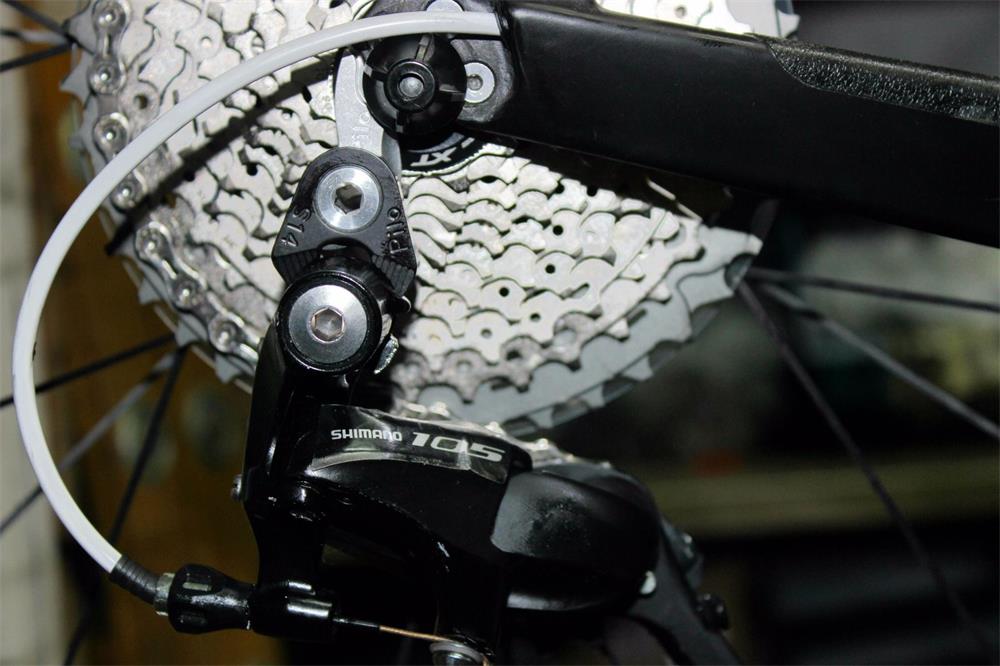

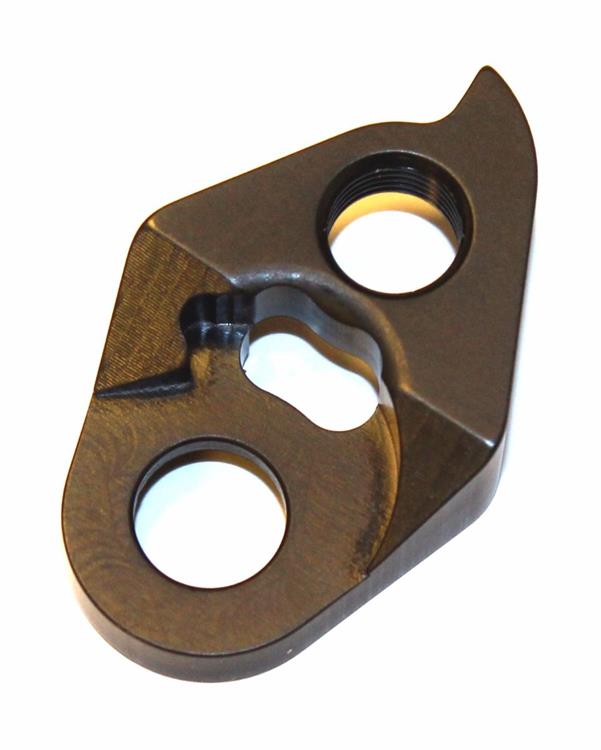

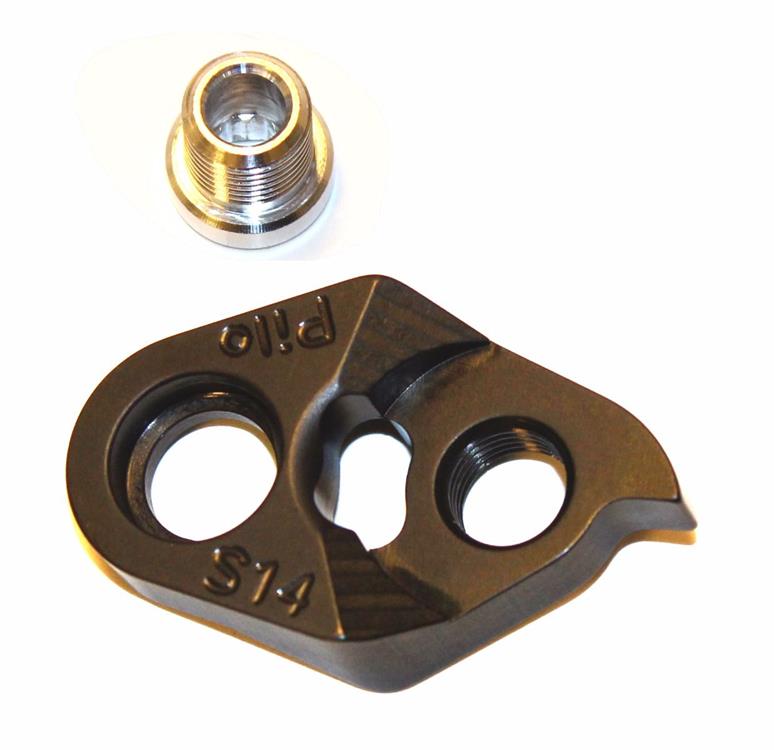

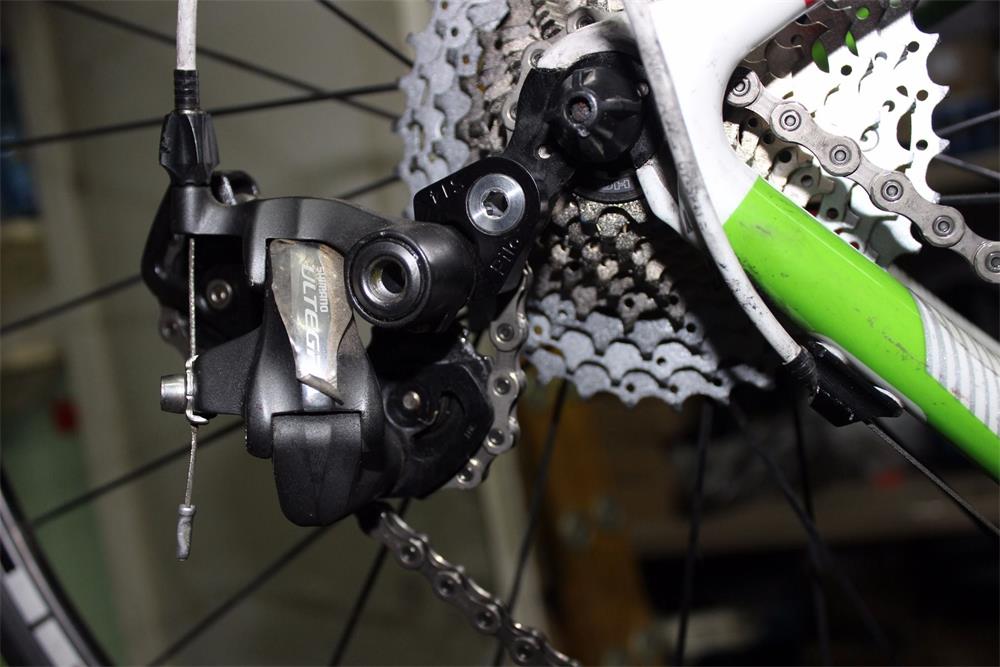

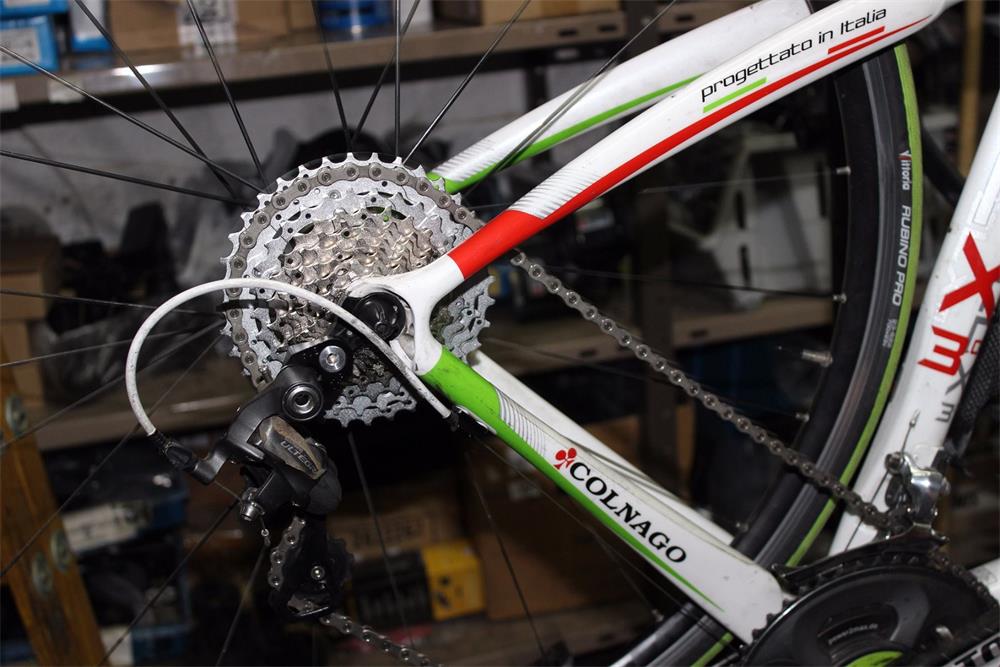

HAN-S14: This part will improve performance for road cyclists, by allowing a bigger rear cassette installation. Bolt included.

Works with any 1-11 or 1-10 Drivetrain (42T max cassette, with a single chain ring crankset)
Crank should be with a single chain ring or a double chain ring where the difference between the plates sizes is 14T max (with an exception: works with a compact Shimano crank of 34-50T plates, 2-10 cassette 11-36)
In a double chain ring crankset there is a limitation of 40T rear cassette with Shimano and Sram, and 36T with Campagnolo.

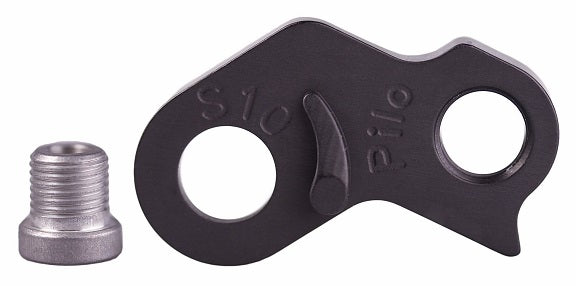

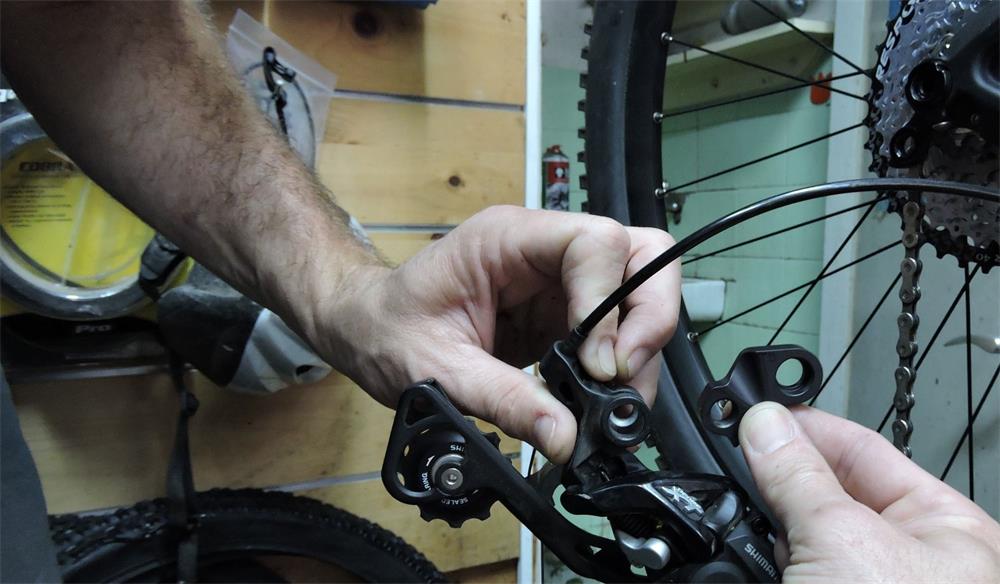

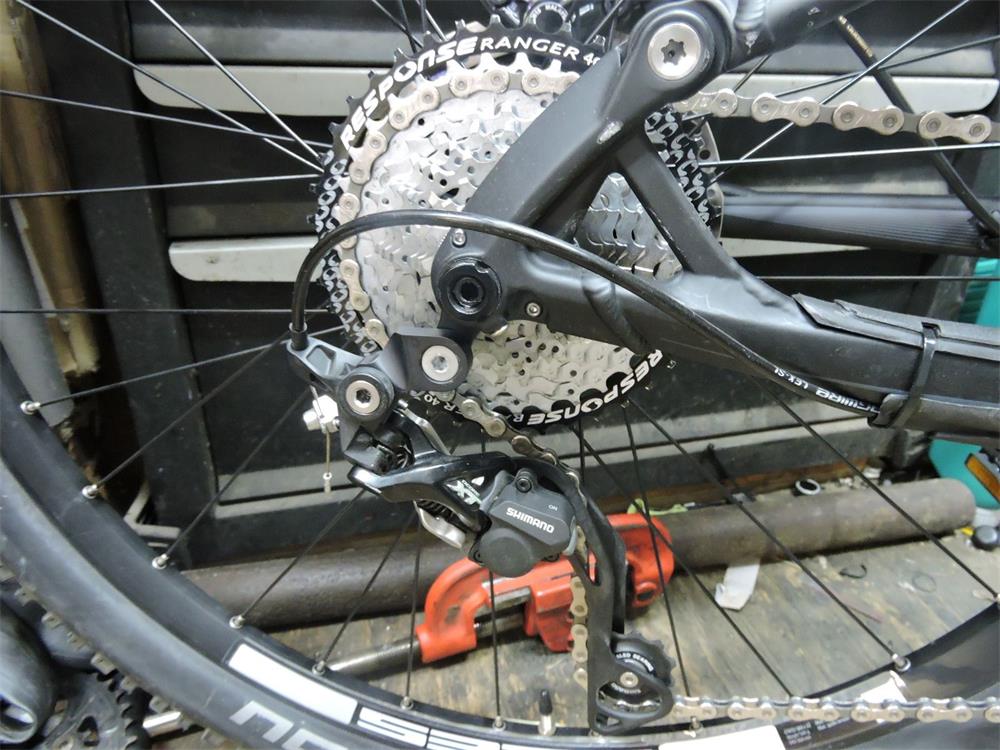

HAN-S10: This part is used on Shimano Shadow rear derailleurs starting 2013. Bolt included.

Will fit a cassette size of 40T or bigger
Improves shifting performance on 1-10 systems
Increases chain wrap, eliminates the need to drastically thread in the b-tension screw
Replaces the Direct Mount link on 2013 or later Shimano 10-speed Shadow+ rear derailleurs to reduce premature shifting degradation
Works with any 11-40t or 11-42t 10-speed cassette

S1 - S2 - S3 (2)

PILO

Pilo - Small Parts

From $5.00

PILO - SMALL PARTS

HAN-S14: This part will improve performance for road cyclists, by allowing a bigger rear cassette installation. Bolt included.

Works with any 1-11 or 1-10 Drivetrain (42T max cassette, with a single chain ring crankset)
Crank should be with a single chain ring or a double chain ring where the difference between the plates sizes is 14T max (with an exception: works with a compact Shimano crank of 34-50T plates, 2-10 cassette 11-36)
In a double chain ring crankset there is a limitation of 40T rear cassette with Shimano and Sram, and 36T with Campagnolo.

HAN-S10: This part is used on Shimano Shadow rear derailleurs starting 2013. Bolt included.

Will fit a cassette size of 40T or bigger
Improves shifting performance on 1-10 systems
Increases chain wrap, eliminates the need to drastically thread in the b-tension screw
Replaces the Direct Mount link on 2013 or later Shimano 10-speed Shadow+ rear derailleurs to reduce premature shifting degradation
Works with any 11-40t or 11-42t 10-speed cassette

Stock Item

PILO SMALL PART - S17 NB8 STANDARD DERAILEUR HANGER NUT & BOLT M8X0.75
PILO SMALL PART - DERAILEUR HANGER BOLT 8MM

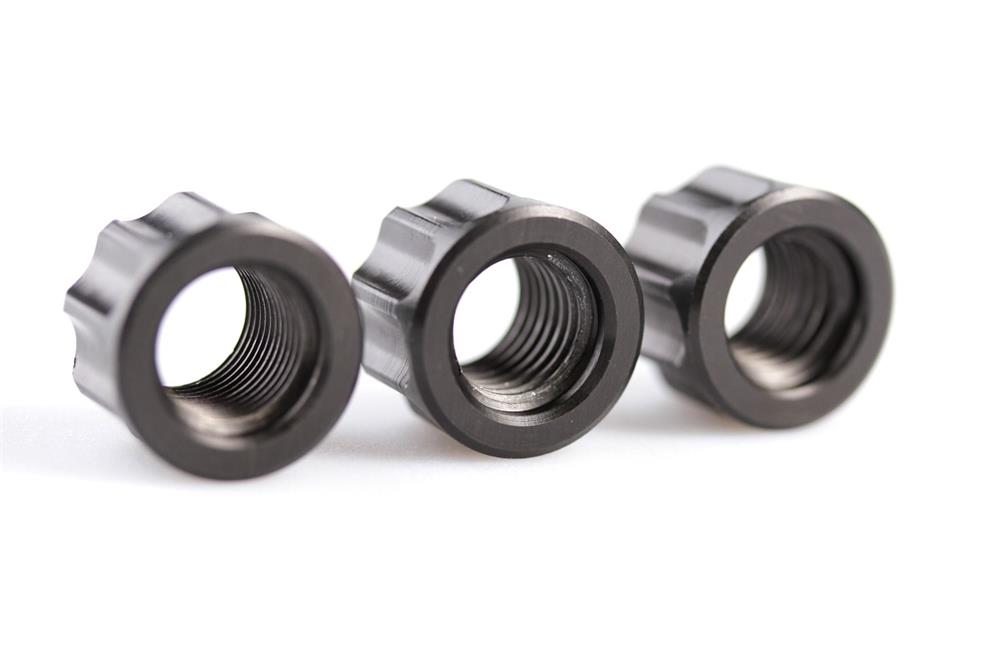

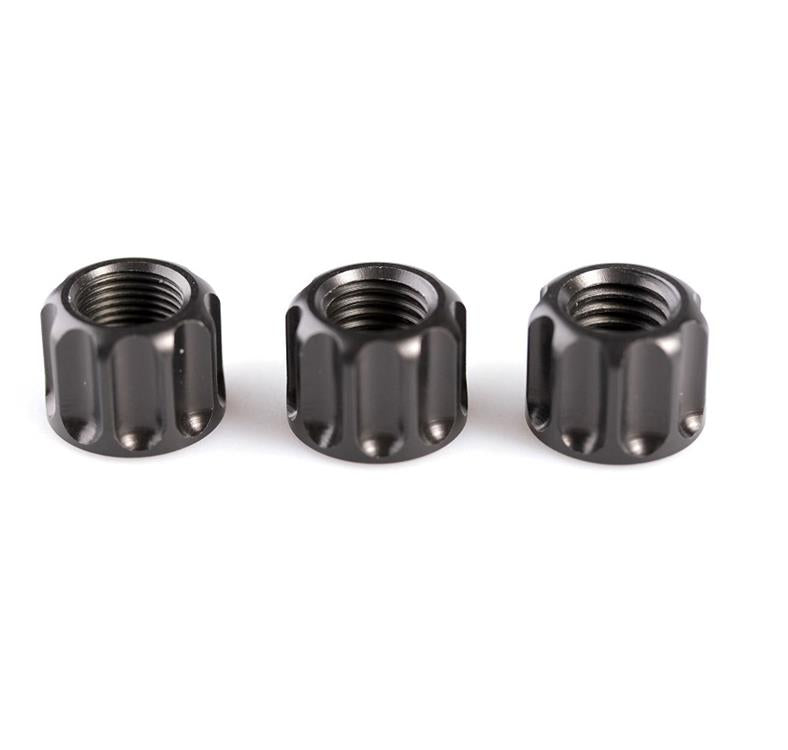

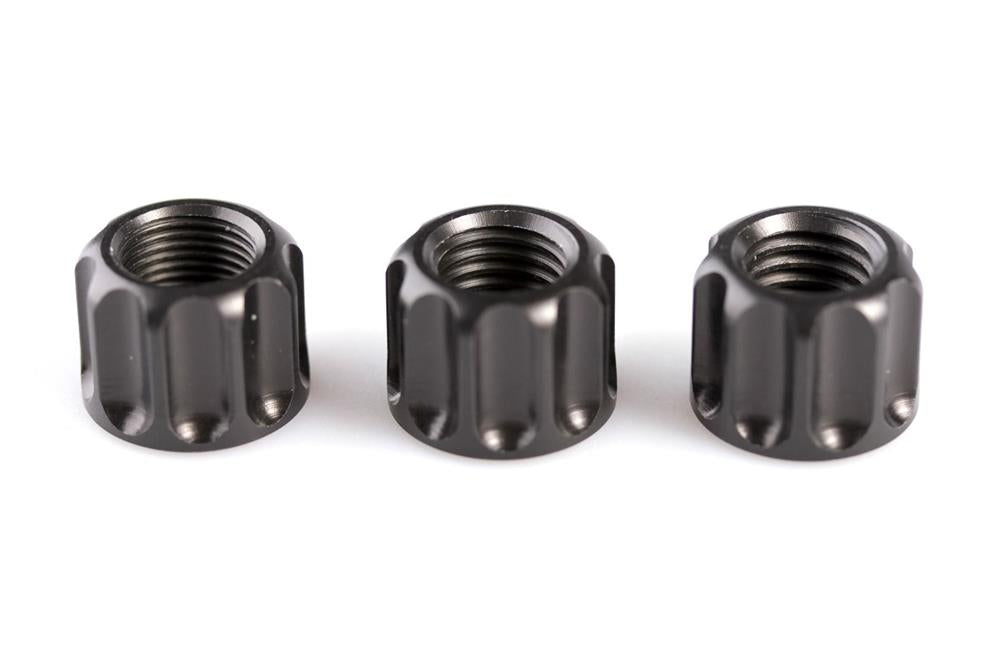

PILO SMALL PART - S01 DT SWISS 12x142 AXLE LOCK NUT M12 x 1 THREAD
PILO SMALL PART - S02 DT SWISS 12x142 AXLE LOCK NUT M12 x 1.5 THREAD
PILO SMALL PART - S03 SRAM AND SHIMANO AXLE LOCK NUT M12 x 1.75 ISO Thread
PILO SMALL PART - S10 ADAPTER FOR SHIMNAO SHADOW DIRECT LINK REAR DERAILLEUR
PILO SMALL PART -S12 LOCK NUT FOR D398 M12 X 1.50 THREAD

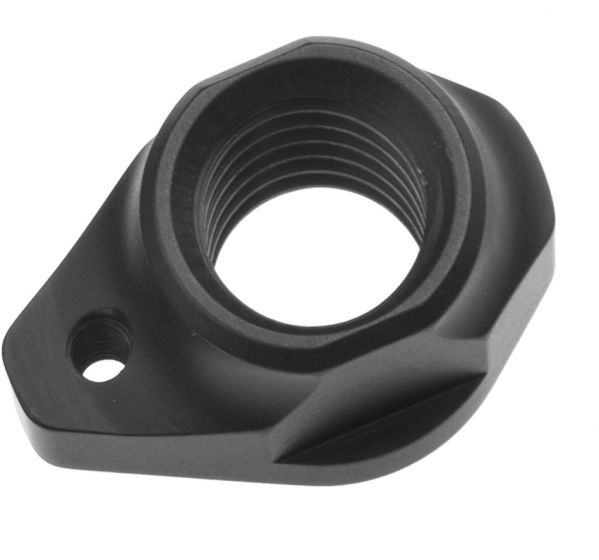

PILO SMALL PART - S13 LOCK NUT FOR D398 M12 X 1.75 THREAD
PILO SMALL PART - S14 ALPE D'HUEZ FAIRY - (Allows use of larger cassettes on road bikes)

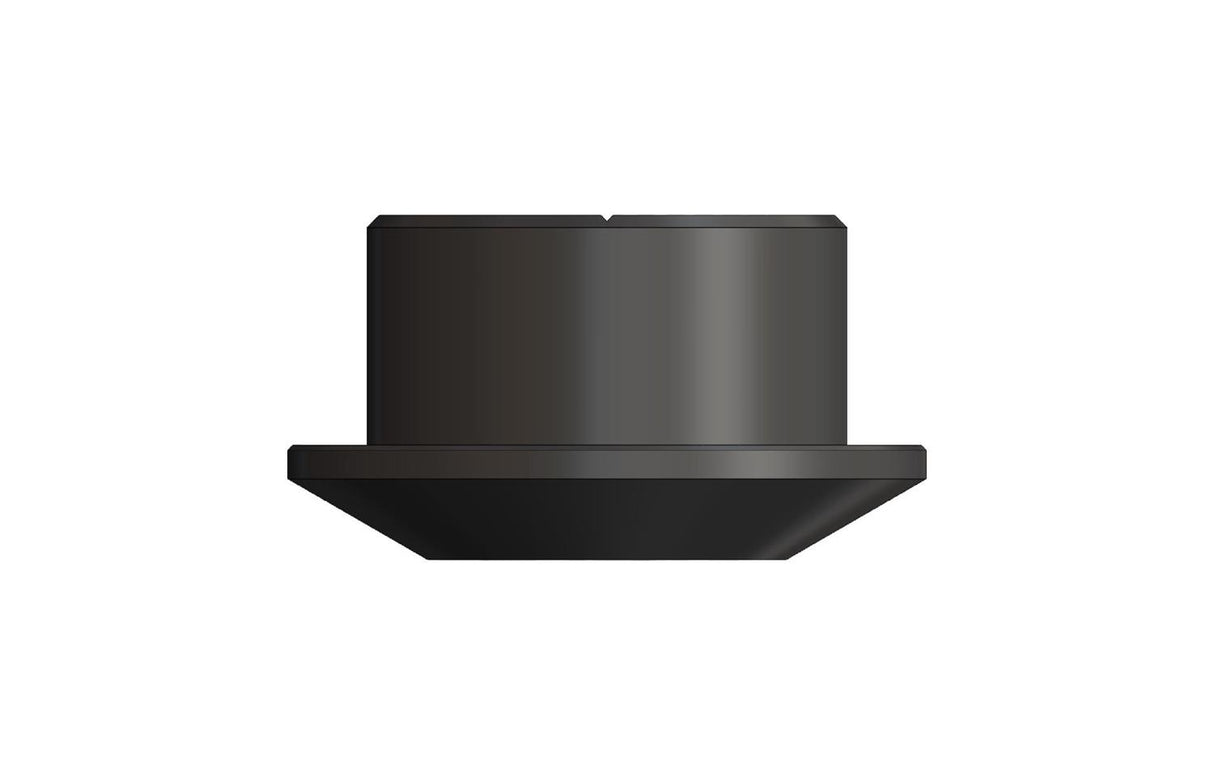

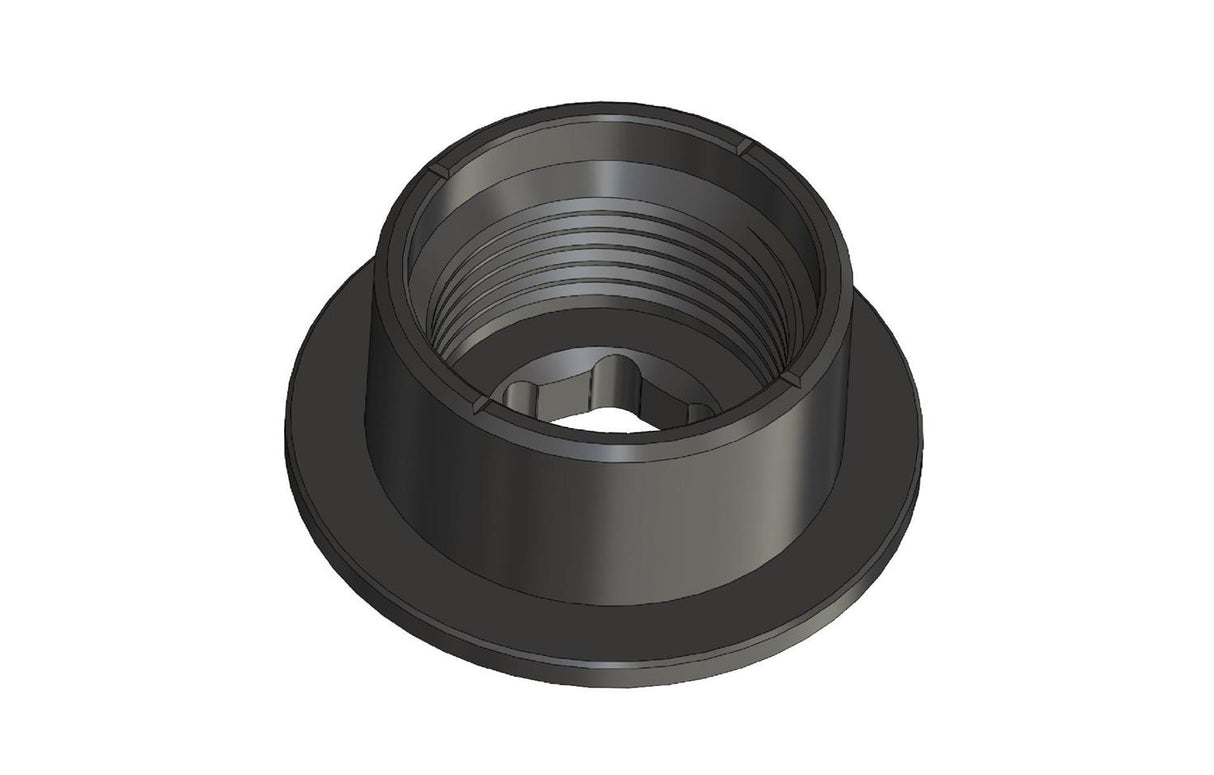

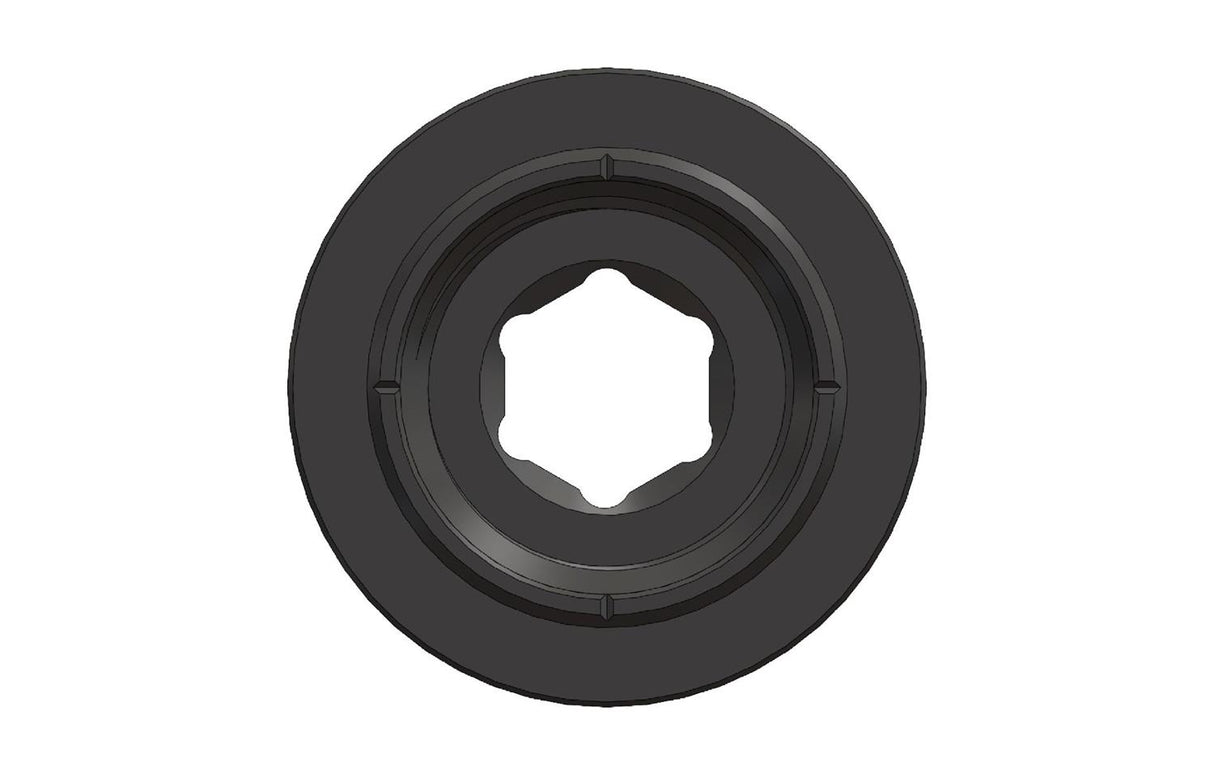

PILO SMALL PART - S81 LOCK NUT FOR D664, M15 x 1, 10mm DEPTH
