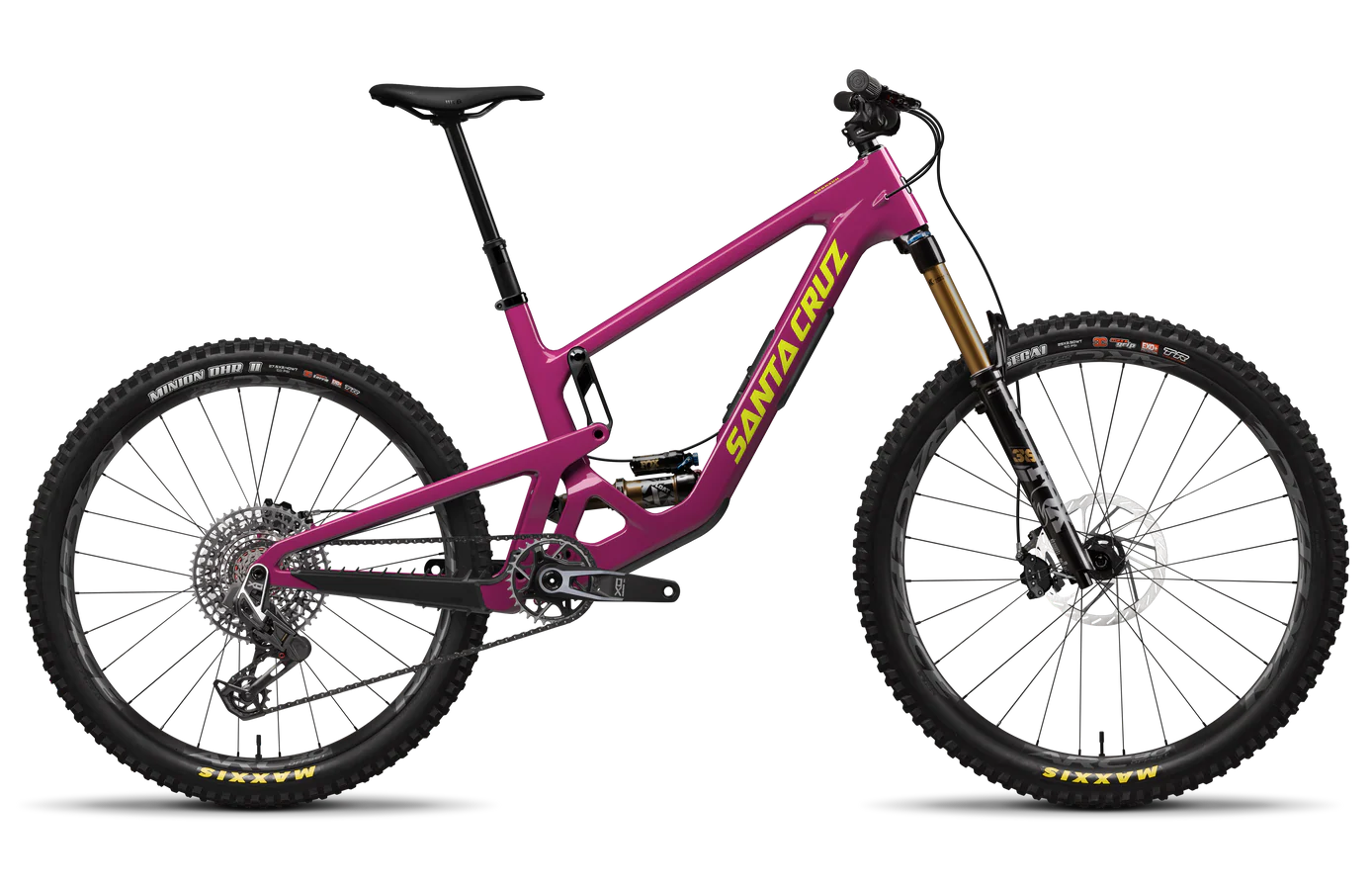

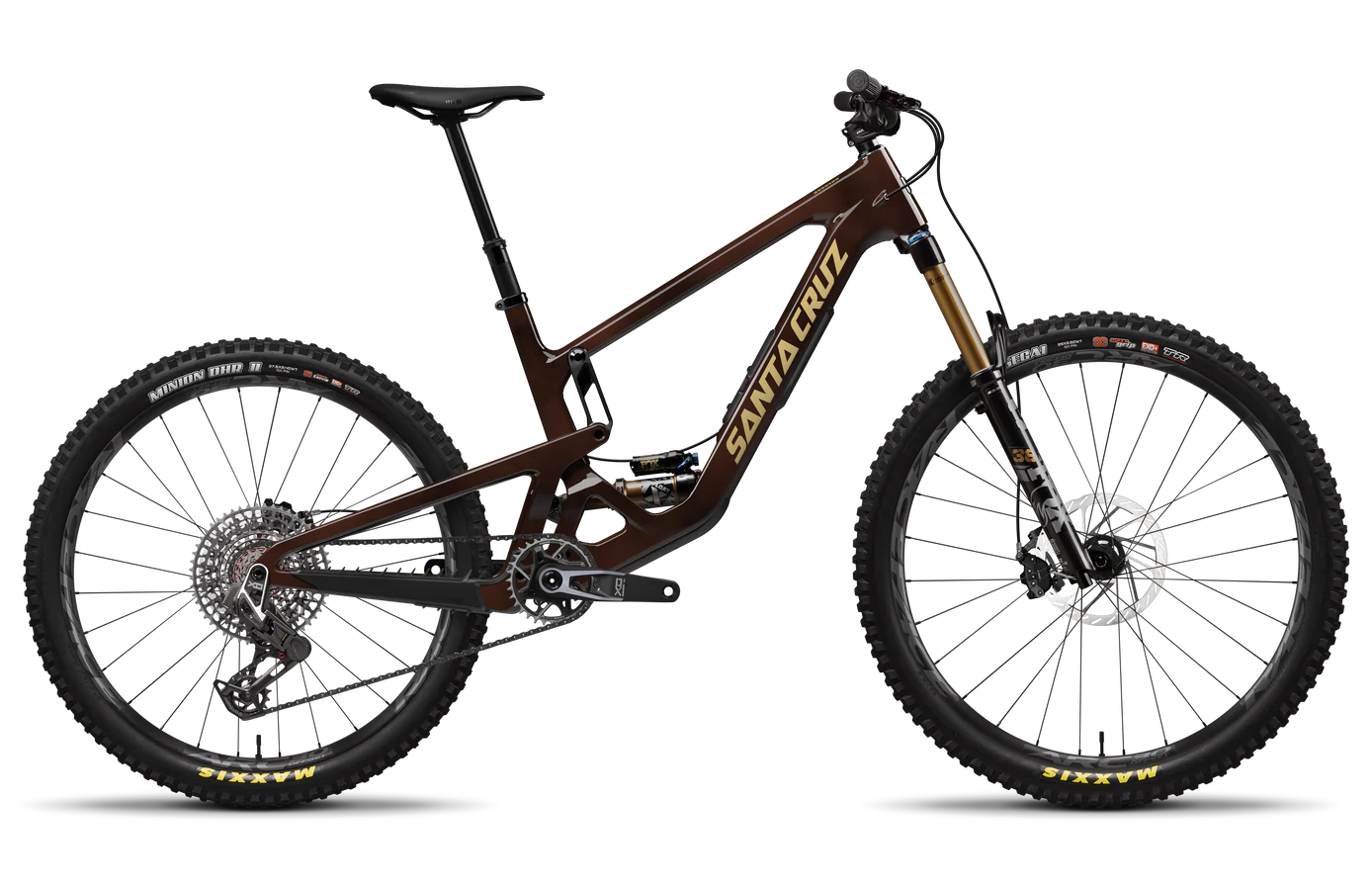

Santa Cruz Bronson 5 CC X0 AXS
Santa Cruz Bronson 5 CC X0 AXS
All-rounder with an attitude
When you can only have one bike, and your mission is to ride it into oblivion, this is the one. From manicured bike parks to blown-out loamy berms, alpine lines to backyard trails, the Bronson feels just as at home in the air as it does in the dirt. For the rider with a Peter Pan disposition or anyone looking to get into a pan-flat tabletop position, the Bronson encourages bad behavior.
A wild side for side hits
The Bronson’s suspension and geometry work in harmony to create a settled, assured ride that feels as if it's whispering to you, ‘You’ve got this. Don’t brake. Go for the side hit. Do it.’ You might even find yourself asking your riding buddies for another lap.
Pull up, send deep
This is the best VPP™ Santa Cruz has ever made. There’s more traction on offer, and it makes for very composed descending. The lower VPP™ link is placed low and forward to optimize anti-squat. The result is a plush, open feel with a lot of traction, and minimal kickback on square-edge hits.
Geometry
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/478 | 500/498 | 525/523 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 437 | 439 | 442 | 445 | 448 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 10/13 | 10/13 | 10/13 | 10/13 | 10/13 |
| Wheelbase (Hi/Lo) | 1208 | 1240 | 1267 | 1299 | 1331 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4°/78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
Specs
| Frame | ||
|---|---|---|
|
Material |
Carbon CC | |
|
Travel |
150mm | |
|
Weight |
32.48 lbs / 14.73 kg | |
|
Wheel Size |
MX | |
| Suspension | ||
|
Fork |
Fox 36 Float Factory, Grip X2, 160mm | |
|
Shock |
FOX Float X Factory, 230x57.5 | |
| Drivetrain | ||
|
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB | |
|
Cassette |
SRAM X0 Eagle T-Type, 10-52t | |
|
Chain |
SRAM X0 Eagle T-Type, Flattop, 12spd | |
|
Crankset |
SRAM X0 Eagle DUB T-Type Crankset, 32t | |
|
Rear Derailleur |
SRAM X0 Eagle AXS T-Type, 12spd | |
|
Right Shifter |
SRAM AXS Pod Controller Rocker Paddle | |
| Brakes | ||
|
Brakes |
SRAM Maven Silver Stealth | |
|
Front Rotor |
SRAM HS2 200mm | |
|
Rear Rotor |
SRAM HS2 180mm | |
| Cockpit | ||
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | |
|
Handlebars |
Santa Cruz 35 Carbon Bar, 800mm | |
|
Headset |
Cane Creek 40 IS Integrated Headset | |
|
Saddle |
WTB Silverado Medium Fusion, CroMo SL | |
|
Seatpost |
OneUp Dropper Post, 31.6 | |
|
Stem |
OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm | |
| Wheels | ||
|
Front Rim |
Reserve 30|SL AL 6069 -or- Raceface ARC 30 | |
|
Front Hub |
Industry Nine 1/1, 15x110, 6-Bolt, 28h | |
|
Front Tire |
Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+ | |
|
Rear Rim |
Reserve 30|SL AL 6069 -or- Raceface ARC 30 | |
|
Rear Hub |
Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h | |
|
Rear Tire |
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ | |
|
Valves |
Reserve Fillmore Valves | |
| Ebike | ||
|
Battery Charger |
SRAM eTap Powerpack 1 Battery & Charger | |
| Specs | ||
|
Bottom Bracket Shell |
73mm Threaded | |
|
Rear Brake Mount |
180 PM | |
|
Shock Length |
230mm | |
|
Fork Offset |
44mm | |
|
Front Derailleur Mount |
No compatibility | |
|
Headset |
Integrated (IS41/52) | |
|
Max Chainring Size |
36t | |
|
Max Rotor Size |
223mm | |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" | |
|
Seat Clamp Diameter |
36.4mm | |
|
Seat Post Diameter |
31.6mm | |
|
Shock Bushing Size Front |
40x10 (standard bushing) | |
|
Shock Bushing Size Rear |
30x8 (roller bearing) | |
|
Shock Stroke |
57.5mm | |
|
Suspension System |
VPP | |
|
Water Bottle Mounts |
1 | |
