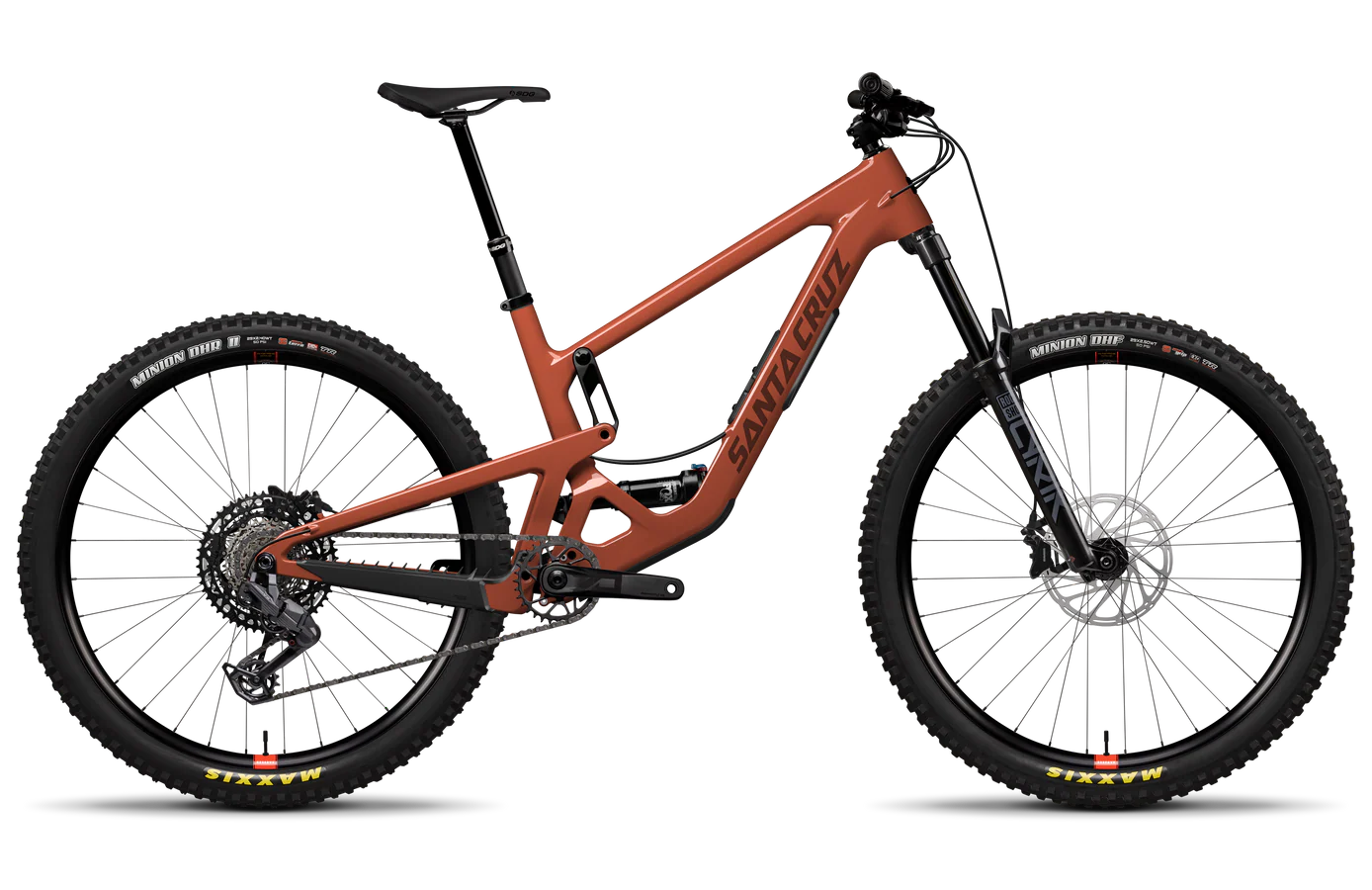

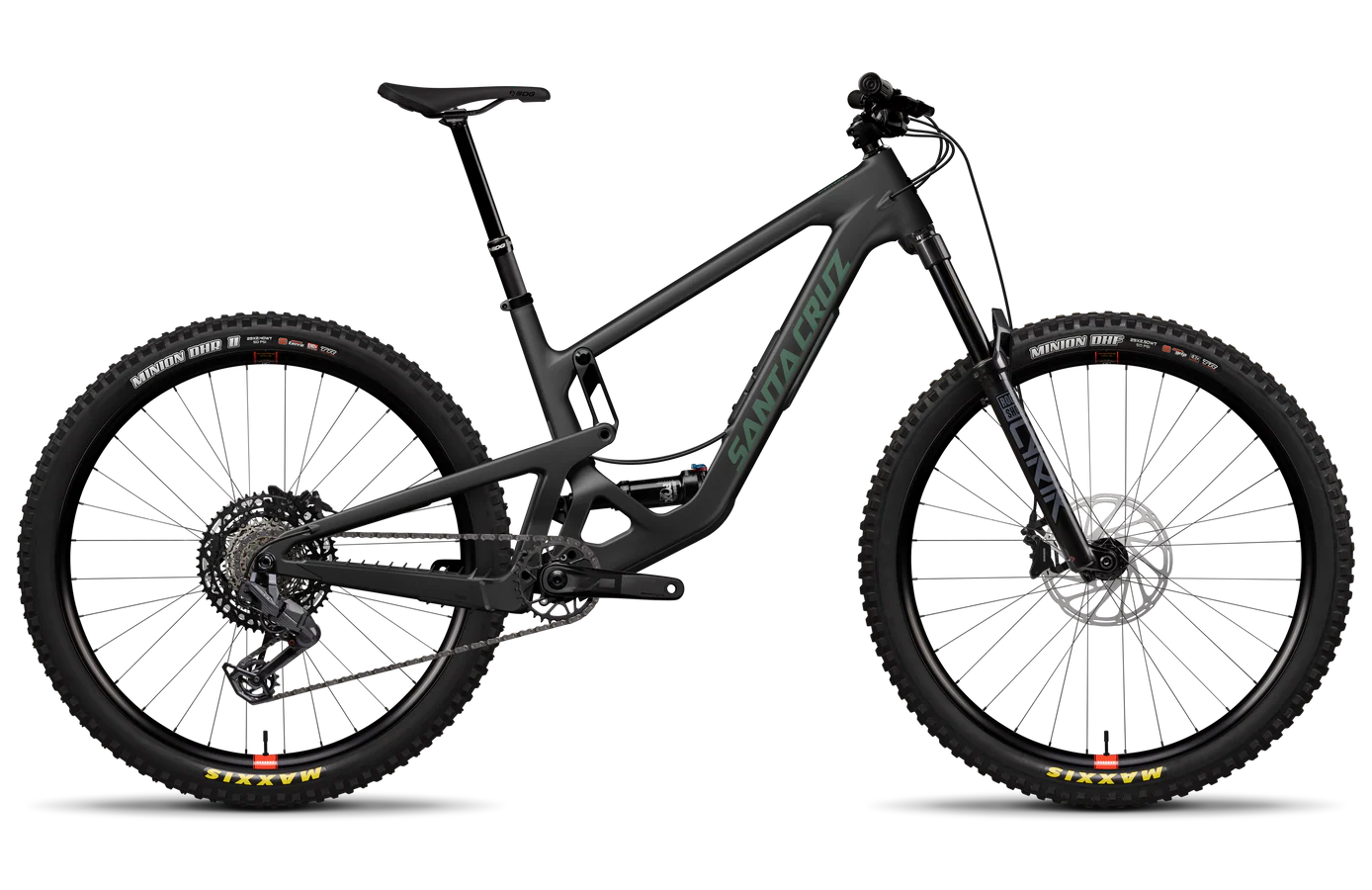

Santa Cruz Hightower 4 C 70
Santa Cruz Hightower 4 C 70
The definitive mountain bike
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. Plenty of travel, 29-inch wheels, and a do-it-all attitude makes Hightower a go-to choice for modern mountain biking. Whether that includes the rarefied air of the alpine or local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
An all-terrain thriller
For local laps or international riding vacations, Hightower goes. The combination of travel, poised geometry, 29-inch wheels, and a can-do attitude make Hightower an easy choice when you're not sure exactly what's down the trail. Light enough to pedal, and long-legged enough to send, you'll come home with plenty of stories no matter how far you went.
For modern mountain biking
The Hightower has the brawn to back up the brains. 150mm-travel VPP™ provides a plush, open feel with a lot of traction. This suspension travel sweetspot provides a broad riding envelope, meaning you’ll be pushing yourself and not the bike.
Geometry
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 434 | 436 | 439 | 442 | 445 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase (Hi/Lo) | 1206 | 1237 | 1264 | 1296 | 1328 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
Specs
| Frame | ||
|---|---|---|
|
Material |
Carbon C | |
|
Frame |
Carbon C 29" 150mm Travel VPP™ | |
|
Travel |
150mm | |
|
Weight |
34.71lbs / 15.74kg | |
|
Wheel Size |
29" | |
| Suspension | ||
|
Fork |
RockShox Lyrik Base, 160mm | |
|
Shock |
FOX Float Rhythm, 230x57.5 | |
| Drivetrain | ||
|
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB | |
|
Cassette |
SRAM XS 1270 Eagle T-Type, 10-52t | |
|
Chain |
SRAM 70 Eagle T-Type, Flattop, 12spd | |
|
Chainguide |
N/A | |
|
Crankset |
SRAM 70 Eagle DUB T-Type Crankset, 32t All Sizes: 170mm | |
|
Rear Derailleur |
SRAM 70 Eagle T-Type, 12spd | |
|
Right Shifter |
SRAM 90 Eagle T-Type, 12spd | |
| Brakes | ||
|
Brakes |
SRAM DB8 | |
|
Front Rotor |
SRAM Centerline, 200mm | |
|
Rear Rotor |
SRAM Centerline, 200mm | |
| Cockpit | ||
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | |
|
Handlebars |
Burgtec Alloy Bar S: 35x760mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 30mm Rise -or- e13 TRS Base Bar | |
|
Headset |
Cane Creek 10 IS Integrated Headset | |
|
Saddle |
SDG Bel-Air V3, Steel | |
|
Seatpost |
SDG Tellis Dropper, 31.6 S: 125mm, M: 150, L: 170mm, XL/XXL: 200mm | |
|
Stem |
OneUp Enduro Stem All Sizes: 42mm -or- e13 TRS Base Stem All Sizes: 40mm | |
| Wheels | ||
|
Front Rim |
Reserve 30|TR AL | |
|
Front Hub |
SRAM MTH 716, 15x110, 6-Bolt, 32h | |
|
Front Tire |
Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO | |
|
Rear Rim |
Reserve 30|TR AL | |
|
Rear Hub |
SRAM MTH 746, 12x148, HG, 6-Bolt, 32h | |
|
Rear Tire |
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ | |
|
Valves |
Reserve Fillmore Valves | |
| Ebike | ||
| Specs | ||
|
Bottom Bracket Shell |
Threaded 73mm | |
|
Rear Brake Mount |
180mm PM | |
|
Chainguide Standard |
ISCG05 | |
|
Shock Length |
230mm | |
|
Fork Axle to Crown |
571mm | |
|
Fork Offset |
44mm | |
|
Front Derailleur Mount |
None | |
|
Headset |
Integrated (IS41/52) | |
|
Max Chainring Size |
36t | |
|
Max Rotor Size |
220mm | |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" | |
|
Rear Spacing |
148mm | |
|
Rear Travel |
150mm | |
|
Recommended Sag |
30% | |
|
Seat Clamp Diameter |
36.4mm | |
|
Shock Mounting Hardware Lower |
30x8 | |
|
Shock Mounting Hardware Upper |
40x10 | |
|
Shock Stroke |
57.5mm | |
|
Suspension System |
VPP | |
|
UDH Compatible |
Yes | |
|
Water Bottle Mounts |
1 | |
