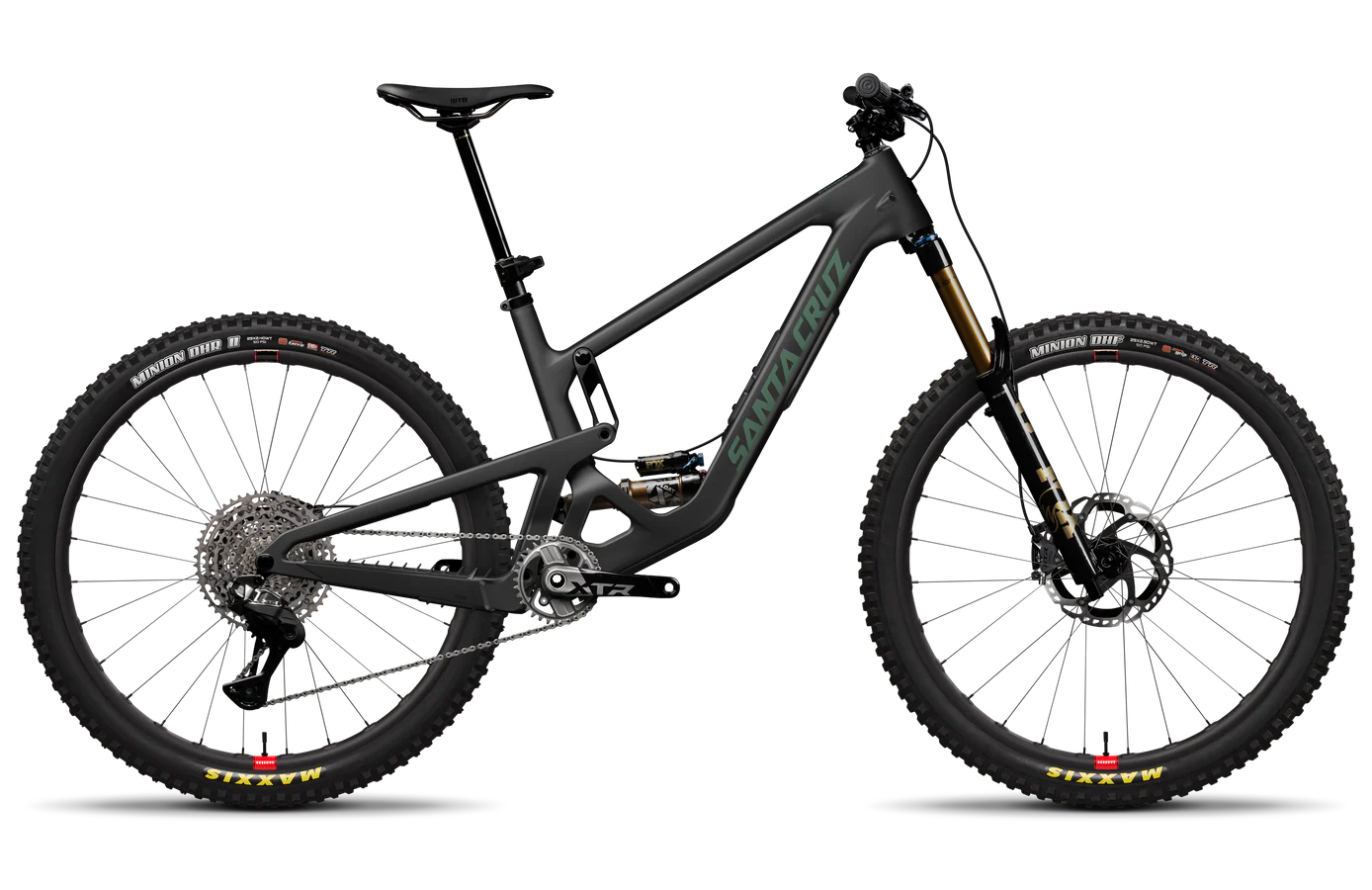

Santa Cruz Hightower 4 CC XTR Reserve
Santa Cruz Hightower 4 CC XTR Reserve
The definitive mountain bike
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. Plenty of travel, 29-inch wheels, and a do-it-all attitude makes Hightower a go-to choice for modern mountain biking. Whether that includes the rarefied air of the alpine or local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
An all-terrain thriller
For local laps or international riding vacations, Hightower goes. The combination of travel, poised geometry, 29-inch wheels, and a can-do attitude make Hightower an easy choice when you're not sure exactly what's down the trail. Light enough to pedal, and long-legged enough to send, you'll come home with plenty of stories no matter how far you went.
For modern mountain biking
The Hightower has the brawn to back up the brains. 150mm-travel VPP™ provides a plush, open feel with a lot of traction. This suspension travel sweetspot provides a broad riding envelope, meaning you’ll be pushing yourself and not the bike.
Geometry
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 434 | 436 | 439 | 442 | 445 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase (Hi/Lo) | 1206 | 1237 | 1264 | 1296 | 1328 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
Specs
| Frame | ||
|---|---|---|
|
Material |
Carbon CC | |
|
Frame |
Carbon CC 29" 150mm Travel VPP™ | |
|
Travel |
150mm | |
|
Weight |
31.95lbs / 14.49kg | |
|
Wheel Size |
29" | |
| Suspension | ||
|
Fork |
FOX 36 Float Factory, Grip X2, 160mm | |
|
Shock |
FOX Float X Factory, 230x57.5 | |
| Drivetrain | ||
|
Bottom Bracket |
Shimano XTR Threaded | |
|
Cassette |
Shimano XTR 9200, 10-51t | |
|
Chain |
Shimano XTR 9100, 12spd | |
|
Chainguide |
N/A | |
|
Crankset |
Shimano XTR M9220, 32t All Sizes: 170mm | |
|
Rear Derailleur |
Shimano XTR Di2 M9250, SGS, 12spd | |
|
Right Shifter |
Shimano XTR M9250 Shift Switch | |
| Brakes | ||
|
Brakes |
Shimano XTR 9220 | |
|
Front Rotor |
Shimano MT905, 203mm | |
|
Rear Rotor |
Shimano MT905, 180mm | |
| Cockpit | ||
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | |
|
Handlebars |
Santa Cruz Carbon Bar S: 35x800mm, 20mm Rise, M/L/XL/XXL: 35x800mm, 35mm Rise | |
|
Headset |
Chris King DropSet 3 Integrated Headset | |
|
Saddle |
WTB Silverado Medium Fusion, Stainless | |
|
Seatpost |
RockShox Reverb AXS S: 150mm, M: 175mm, L/XL: 200, XXL: 225mm | |
|
Stem |
Industry Nine A35 All Sizes: 40mm | |
| Wheels | ||
|
Front Rim |
Reserve 30|HD Carbon | |
|
Front Hub |
Industry Nine Hydra 2, 15x110, 6-Bolt 28h | |
|
Front Tire |
Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO | |
|
Rear Rim |
Reserve 30|HD Carbon | |
|
Rear Hub |
Industry Nine Hydra 2, 12x148, MicroSpline, 6-Bolt 28h | |
|
Rear Tire |
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ | |
|
Valves |
Reserve Fillmore Valves | |
| Ebike | ||
|
Battery |
Shimano Battery DN320 | |
|
Battery Charger |
Shimano Charger DN100 | |
| Specs | ||
|
Bottom Bracket Shell |
Threaded 73mm | |
|
Rear Brake Mount |
180mm PM | |
|
Chainguide Standard |
ISCG05 | |
|
Shock Length |
230mm | |
|
Fork Axle to Crown |
571mm | |
|
Fork Offset |
44mm | |
|
Front Derailleur Mount |
None | |
|
Headset |
Integrated (IS41/52) | |
|
Max Chainring Size |
36t | |
|
Max Rotor Size |
220mm | |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" | |
|
Rear Spacing |
148mm | |
|
Rear Travel |
150mm | |
|
Recommended Sag |
30% | |
|
Seat Clamp Diameter |
36.4mm | |
|
Shock Mounting Hardware Lower |
30x8 | |
|
Shock Mounting Hardware Upper |
40x10 | |
|
Shock Stroke |
57.5mm | |
|
Suspension System |
VPP | |
|
UDH Compatible |
Yes | |
|
Water Bottle Mounts |
1 | |
