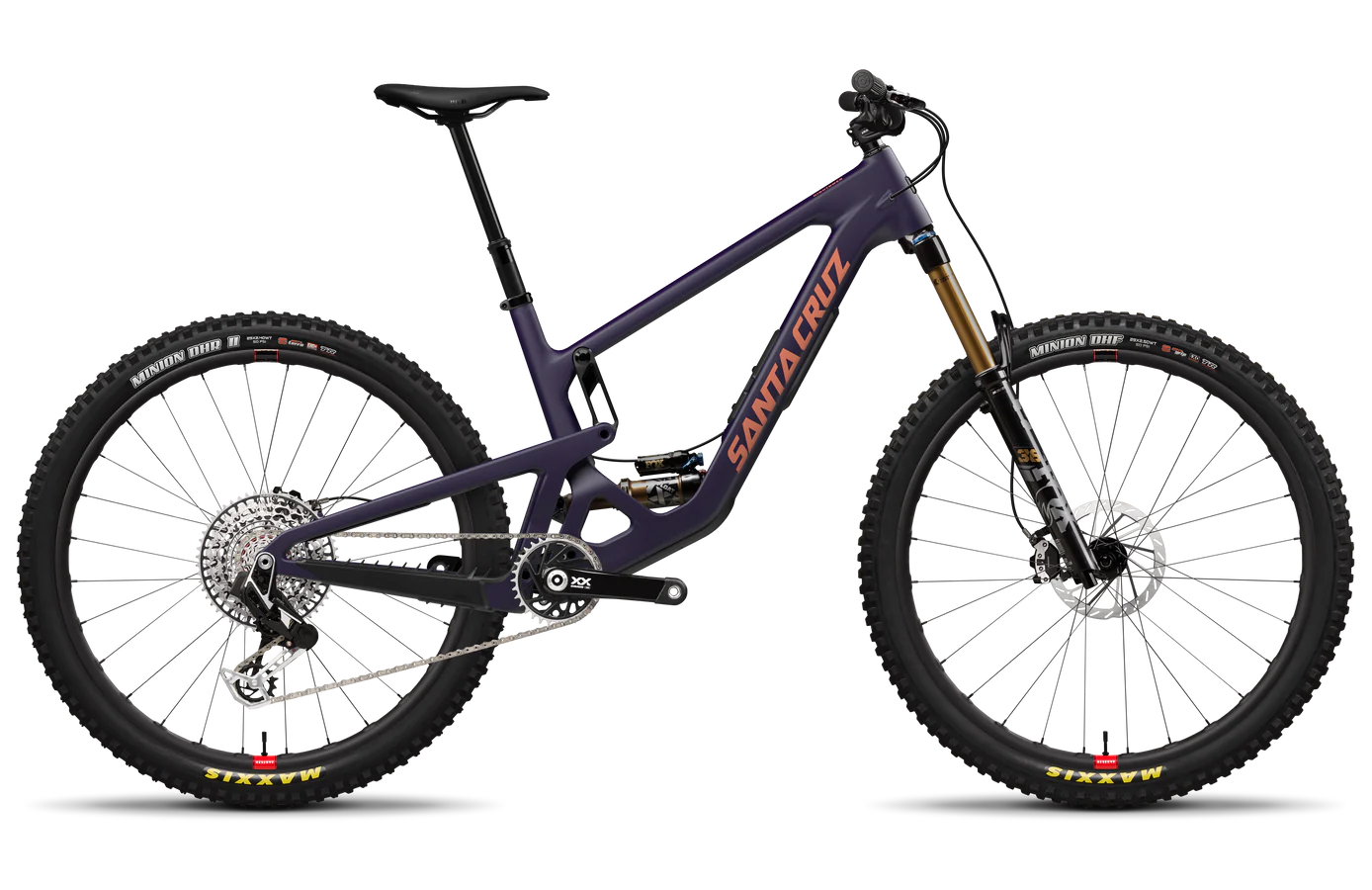

Santa Cruz Hightower 4 CC XX AXS Reserve
Santa Cruz Hightower 4 CC XX AXS Reserve
The definitive mountain bike
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. Plenty of travel, 29-inch wheels, and a do-it-all attitude makes Hightower a go-to choice for modern mountain biking. Whether that includes the rarefied air of the alpine or local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
An all-terrain thriller
For local laps or international riding vacations, Hightower goes. The combination of travel, poised geometry, 29-inch wheels, and a can-do attitude make Hightower an easy choice when you're not sure exactly what's down the trail. Light enough to pedal, and long-legged enough to send, you'll come home with plenty of stories no matter how far you went.
For modern mountain biking
The Hightower has the brawn to back up the brains. 150mm-travel VPP™ provides a plush, open feel with a lot of traction. This suspension travel sweetspot provides a broad riding envelope, meaning you’ll be pushing yourself and not the bike.
Geometry
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/457 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 623/625 | 632/634 | 641/643 | 659/661 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (Hi/Lo) | 110 | 120 | 130 | 150 | 160 |
| Rear Center (Hi/Lo) | 434 | 436 | 439 | 442 | 445 |
| Front Center (Hi/Lo) | 771 | 800 | 825 | 853 | 883 |
| BB Height (Hi/Lo) | 344/341 | 344/341 | 344/341 | 344/341 | 344/341 |
| BB Drop Front (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| BB Drop Rear (Hi/Lo) | 29/32 | 29/32 | 29/32 | 29/32 | 29/32 |
| Wheelbase (Hi/Lo) | 1206 | 1237 | 1264 | 1296 | 1328 |
| Top Tube Length (Hi/Lo) | 572 | 595 | 614 | 636 | 662 |
| Seat Tube Length (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.6°/77.3° | 77.9°/77.6° | 78.2°/77.9° | 78.3°/78° | 78.4/°78.1° |
| Standover Height (Hi/Lo) | 721 | 723 | 725 | 727 | 731 |
Specs
| Frame | ||
|---|---|---|
|
Material |
Carbon CC | |
|
Travel |
150mm | |
|
Weight |
31.7 lbs / 14.38 kg | |
|
Wheel Size |
29 | |
| Suspension | ||
|
Fork |
Fox 36 Float Factory, Grip X2, 160mm | |
|
Shock |
FOX Float X Factory, 230x57.5 | |
| Drivetrain | ||
|
Bottom Bracket |
SRAM DUB 73mm MTB Wide BB | |
|
Cassette |
SRAM XX Eagle T-Type, 10-52t | |
|
Chain |
SRAM XX SL Eagle T-Type, Flattop, 12spd | |
|
Crankset |
SRAM XX Eagle DUB T-Type Crankset, 32t | |
|
Rear Derailleur |
SRAM XX Eagle AXS T-Type, 12spd | |
|
Right Shifter |
SRAM AXS Pod Controller Rocker Paddle | |
| Brakes | ||
|
Brakes |
SRAM Maven Ultimate Stealth | |
|
Front Rotor |
SRAM HS2 180mm | |
|
Rear Rotor |
SRAM HS2 180mm | |
| Cockpit | ||
|
Dropper Length |
S - 120mm, M - 150mm, L - 180mm, XL - 210mm, XXL - 210mm | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | |
|
Handlebars |
Santa Cruz 35 Carbon Bar, 800mm | |
|
Headset |
Chris King DropSet 3 Integrated Headset | |
|
Saddle |
WTB Silverado Medium Fusion, Stainless | |
|
Seatpost |
OneUp Dropper Post, 31.6 | |
|
Stem |
Industry Nine A35, 40mm | |
| Wheels | ||
|
Front Rim |
Reserve 30|HD Carbon | |
|
Front Hub |
Industry Nine Hydra, 15x110, 6-Bolt 28h | |
|
Front Tire |
Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO | |
|
Rear Rim |
Reserve 30|HD Carbon | |
|
Rear Hub |
Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h | |
|
Rear Tire |
Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ | |
|
Valves |
Reserve Fillmore Valves | |
| Ebike | ||
|
Battery Charger |
SRAM eTap Powerpack 1 Battery & Charger | |
| Specs | ||
|
Bottom Bracket Shell |
73mm Threaded | |
|
Rear Brake Mount |
180 PM | |
|
Shock Length |
230mm | |
|
Fork Offset |
44mm | |
|
Front Derailleur Mount |
No compatibility | |
|
Headset |
Integrated (IS41/52) | |
|
Max Chainring Size |
36t | |
|
Max Rotor Size |
223mm | |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" | |
|
Recommended Sag |
30% (17.25mm) | |
|
Seat Clamp Diameter |
36.4mm | |
|
Seat Post Diameter |
31.6mm | |
|
Shock Bushing Size Front |
40x10 (standard bushing) | |
|
Shock Bushing Size Rear |
30x8 (roller bearing) | |
|
Shock Stroke |
57.5mm | |
|
Suspension System |
VPP | |
|
Water Bottle Mounts |
1 | |
