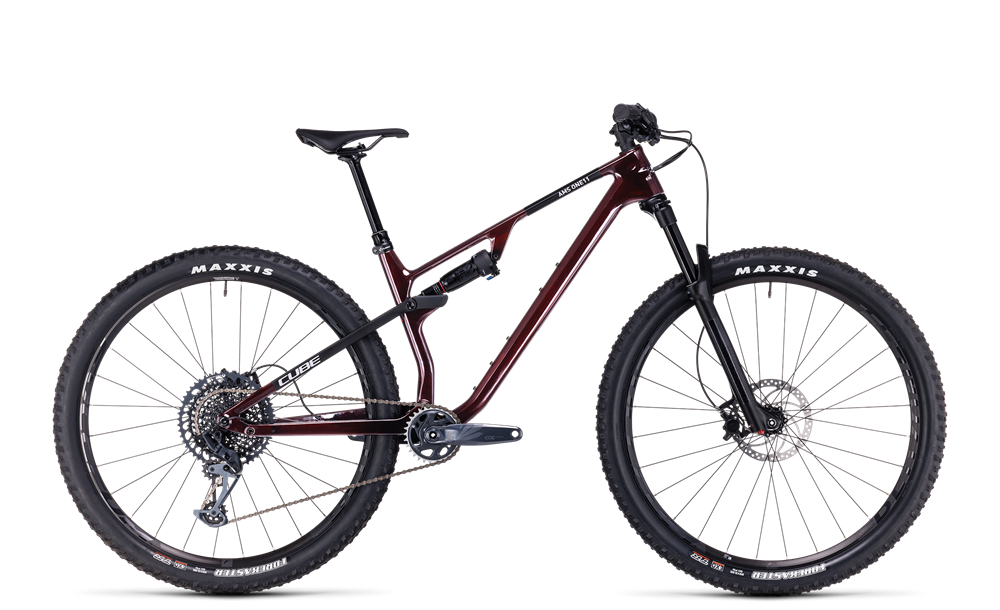

AMS ONE11 C62 Pro 29 liquidred n carbon
Description
When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 100mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.
Specifications
Frame |
C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH |
Sizes |
29: S, M, L, XL |
Suspension Fork |
RockShox Recon Gold RL Air, Tapered, 15x110mm, 100mm |
Shock |
RockShox Deluxe Select+, 190x42.5mm |
Shock Hardware |
Front: 26x8mm, Rear: 30x8mm |
Brake System |
Magura MT Thirty, Front/Rear 2-Piston, Hydr. Disc Brake (180/180) |
Rear Derailleur |
Sram GX Eagle, 12-Speed |
Shifters |
Sram GX Eagle Trigger |
Bottom Bracket |
Sram DUB MTB, 92mm Pressfit |
Crankset |
Sram GX Eagle Boost DUB, 30T |
Cassette |
Sram XG-1275 Eagle, 10-52T |
Chain |
Sram SX Eagle |
Headset |
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment |
Stem |
Newmen Evolution SL 318.4, 31.8mm |
Handlebar |
Newmen Evolution 318.20, 760mm |
Grips |
SDG Thrice |
Wheelset |
Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Tyres |
Maxxis Forekaster, EXO, Tubeless Ready, 2.35 |
Saddle |
Natural Fit Nuance |
Seat Post |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm |
Seat Clamp |
CUBE Screwlock, 34.9mm |
Colour |
liquidred´n´carbon |
Weight |
12.5 kg |
Structural Weight |
115 kg |
