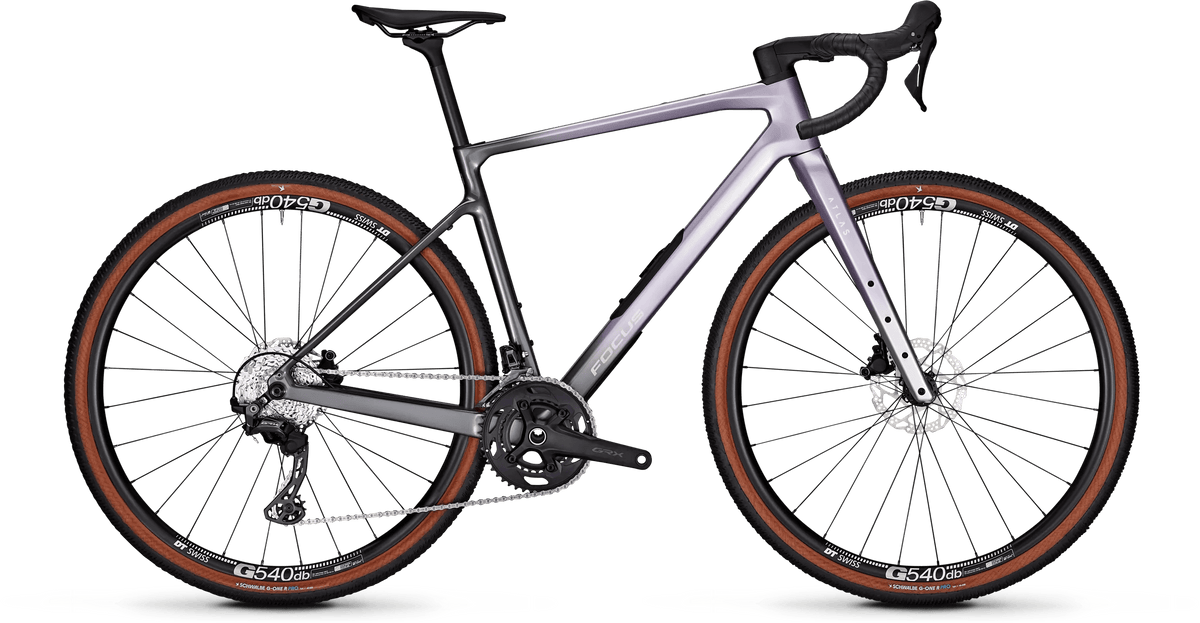

Focus Atlas 8.7

Carbon, Shimano GRX 2x12, DT Swiss G540 Rims

  • 24 months interest free available

  • Workride Provider

  • Northride Partner

Colour: Lavender
Size
$4,19900
Focus

Ride till sunset and beyond. These smart features take you even further.

Specs

  • Frame Carbon technology, disc, 142x12 mm thru axle, flat mount 160 mm
  • Special Features Prep Pocket & Prep Pack
  • Fork Carbon technology, disc, 100x12 mm thru axle, flat mount 160 mm
  • Shifter Shimano GRX 610
  • Front derailleur Shimano GRX 820
  • Rear derailleur Shimano GRX 820, 12-speed
  • Cassette Shimano CS-HG710, 11-36T
  • Chain Shimano CN-M6100
  • Crankset Shimano GRX610, 46/30 T
  • Bottom bracket Shimano, BSA 24 mm
  • Handlebar Focus Gravel Bar, alloy, 31,8 mm, drop: 115 mm, reach: 70 mm, flare: 16°
  • Stem FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount
  • Headset ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated
  • Saddle FOCUS
  • Seatpost Carbon, 27,2 mm, set-back: 15 mm
  • Brakes front | rear Shimano GRX 610 | Shimano GRX 610
  • Disc brake rotors Shimano RT54, front: 180 mm (Size L-XL), 160 mm (Size XS-M) / rear: 160 mm
  • Rim front DT Swiss G540, alloy, rim height: 20 mm, width: 24-622
  • Rim rear DT Swiss G540, alloy, rim height: 25 mm, width: 24-622
  • Front hub Alexrims BRD-503
  • Rear hub Alexrims BRD-504
  • Tyres front | rear Schwalbe G-One R Pro, super race, tubeless ready, 45-622 | Schwalbe G-One R Pro, super race, tubeless ready, 45-622
  • Weight 10.1 kg
  • Permissible system weight 135 kg

Geometry

XS S M L XL
Size in mm 480 510 540 570 600
Handlebar width 380 400 420 440 440
Stem length 70 70 80 90 100
Crank length 170 170 172.5 172.5 175
Seatpost length 350 350 350 350 400
Seat tube length 440 470 500 530 560
Top tube length 506 531 548 564 593
Head angle (°) 70 70.5 70.5 70.5 70.5
Seat angle (°) 74.5 74 73.5 73.5 73
Chainstay length 425 425 425 425 425
Bottom bracket drop 75 75 75 75 75
Head tube length 105 120 140 160 190
Fork length 425 425 425 425 425
Fork offset 53 53 53 53 53
Wheelbase 1015 1031 1042 1059 1084
Stack 556 572 591 610 638
Reach 365 380 385 395 410
Standover height 757 778 802 825 852
Effective 416 432 447 467 482
Effective Stack 612 628 647 667 695
