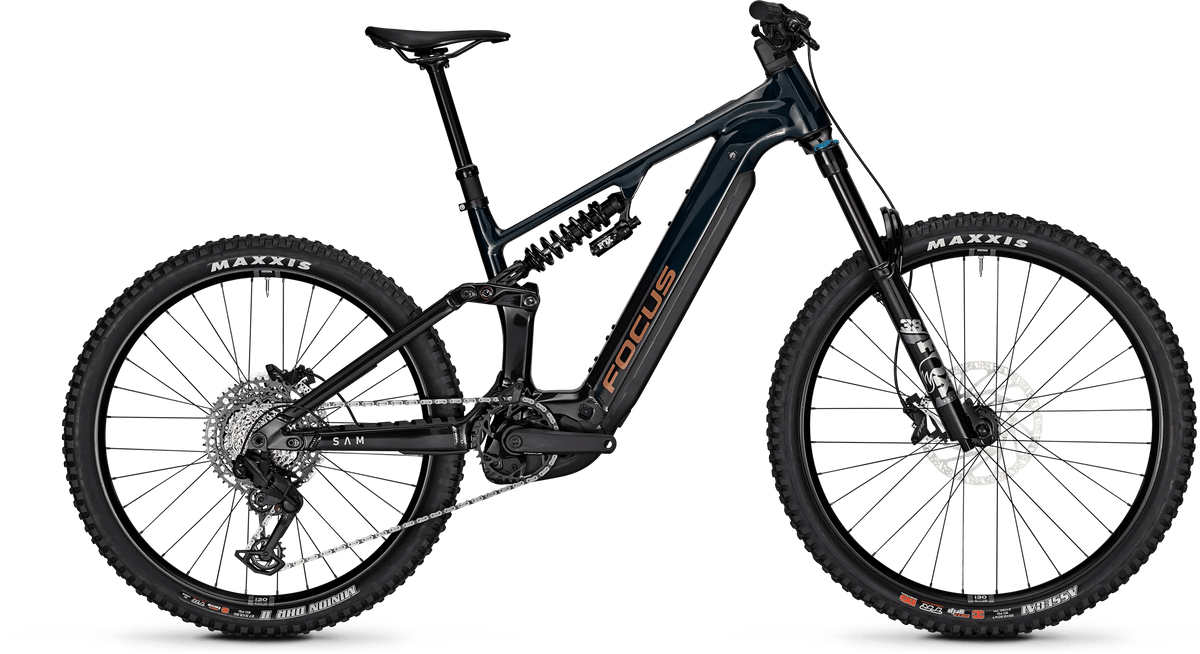

Focus Sam 8

Designed for down

• Aluminium frame with Bosch Performance Line CX e-drive & 600 or 800 Wh battery

• FOX 38 Rhythm fork & FOX DHX Performance coil shock

• SRAM EAGLE 70 12-speed & mullet wheels

Specs

• Frame 7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
• Special Features Geometry adjustment of head angle and chainstay length, Tool bag (exluding size S), Hidden AirTag or Chipolo holder
• Fork FOX 38 Rhythm, Grip 2-Position, 170 mm
• Shock FOX DHX Performance, Coil: 350/450/500/600 lbs (S/M/L/XL), 165 mm
• Motor Bosch Performance Line CX, 85 NM, 120 NM update via Flow App
• Battery Bosch PowerTube Li-Ion 800 Wh
• Display & Remote Bosch Mini Remote + System Controller
• Shifter SRAM Eagle 70
• Rear derailleur SRAM Eagle 70, 12-speed
• Cassette SRAM Eagle 70 Transmission, 10-52T
• Chain SRAM Eagle 70
• Crankset Samox, 160 mm
• Chainring SRAM T-Type, 36 T
• Handlebar Alloy, width: 800 mm, rise: 30 mm
• Grips VP Lock-On Grips
• Stem FOCUS C.I.S. 2.0, 40 mm
• Headset ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
• Saddle Focus
• Seatpost Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 34,9 mm
• Brakes front | rear TRP EVO Comp, 4-piston | TRP EVO Comp, 4-piston
• Disc brake rotors TRP S06E, front: 220 mm / rear: 220 mm
• Rim front WTB Sti30 TGH, alloy, 29"
• Rim rear WTB Sti30 TGH, alloy, 27,5"
• Front hub Formula DC-611
• Rear hub Formula DC-648
• Tyres front | rear Maxxis Assegai, DoubleDown, 3C MaxxGrip 29 x 2,5" | Maxxis Minion DHR II, Downhill, 3C MaxxTerra 27,5 x 2,5"
• Weight 27 kg (800 Wh)
• Permissible system weight 150 kg

Geometry
