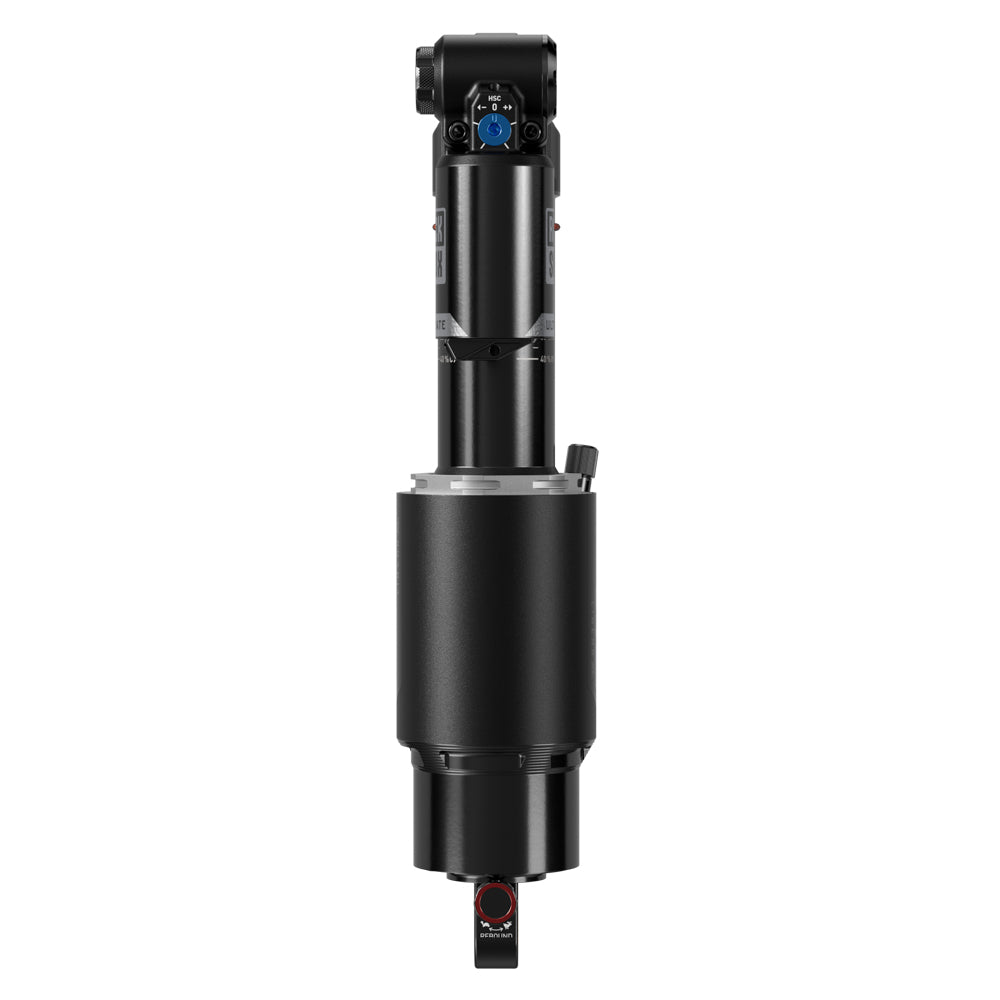

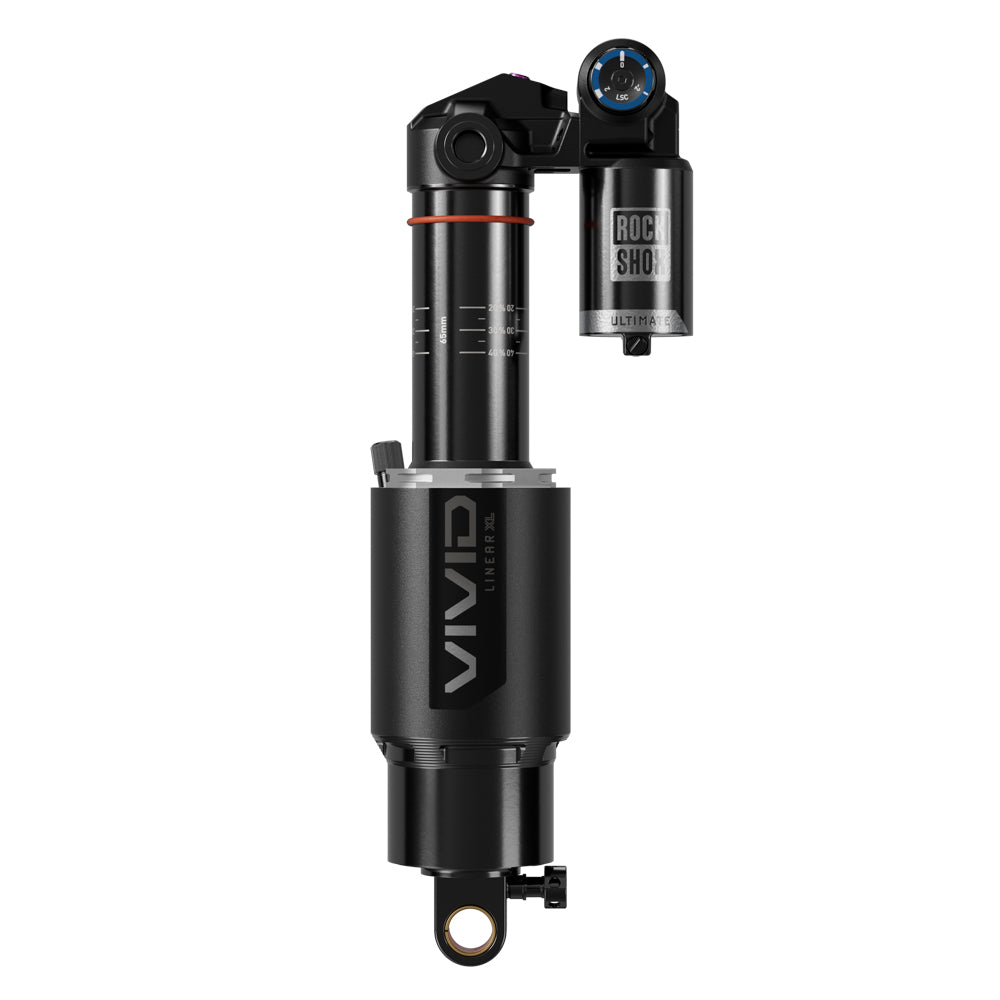

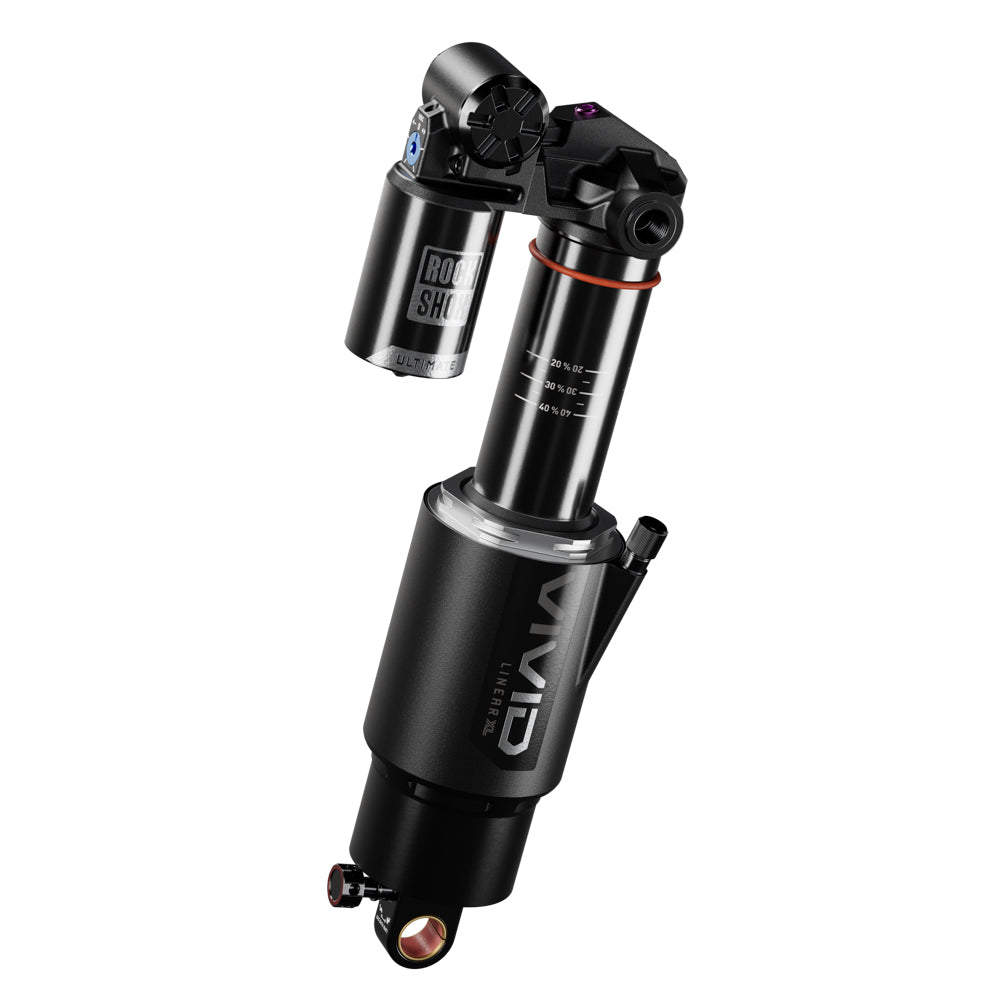

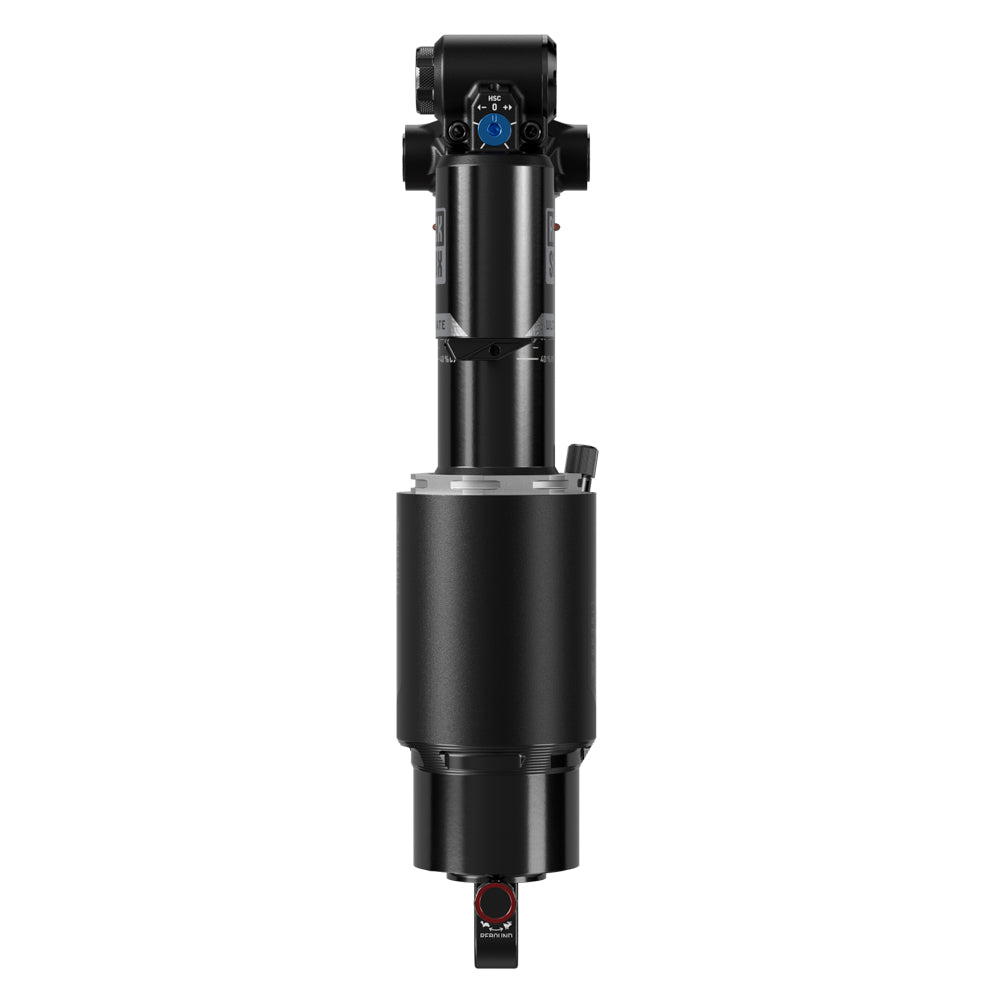

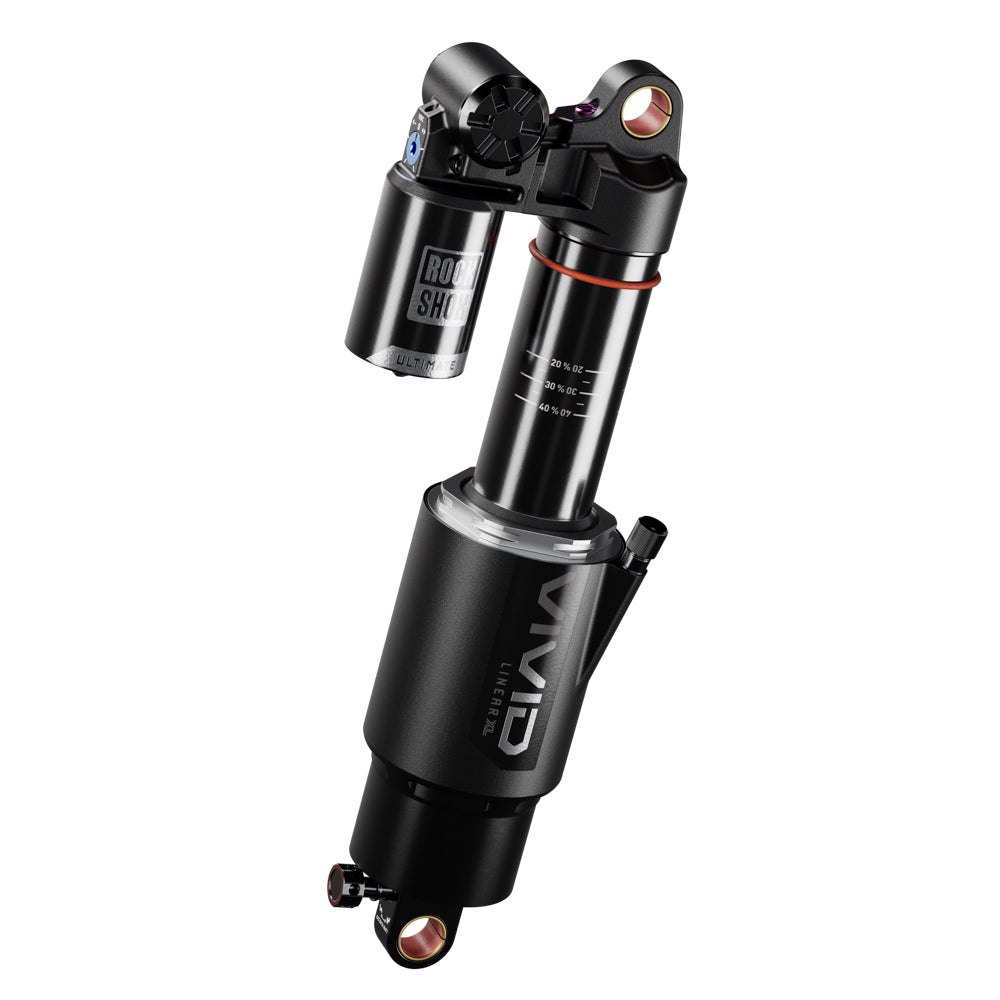

RockShox Vivid Air Ultimate DH

$1,59500
Stock Item
RockShox  |  SKU SHOCKZ548000

Dispatch Time Estimates
Most orders are dispatched within 1 business day, with a few exceptions. The checkout page will show estimated dispatch times.

Don't see what you're after? Let's go find it.
Use the chat below to see if any other colours, sizes or options are available.

ROCKSHOX VIVID AIR ULTIMATE DH

World Cup-proven and built to charge, Vivid Ultimate DH sets a new standard in downhill performance. The LinearXL air spring delivers a coil-like feel—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out for confident endstroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your BoXXer, the RC2 damper’s new main piston compression tunes provide mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Bigger, more aggressive, and ready to push limits on downhill bikes—Vivid Ultimate DH redefines what a rear shock is capable of.

SPECIFICATIONS

Eye to eye / Stroke 225x70(TR), 225x72.5(TR), 225x75(TR), 230x65, 250x70, 250x72.5, 250x75
Damper Type RC2 Adj. Hydraulic Bottom Out
Rebound tune R25, R55
Compression tune C30, C34, C37
Lockout force N/A-V5
Shaft Eyelet Standard
Body Eyelet No Bushing, Standard, Trunnion
E-Bike Approved E-bike Approved
Bottom Out Externally Adjustable Bottom Out
High Speed Tune n/a





FEATURES

  • NEW LinearXL air spring delivers a consistent and predictable ride feel tunable with easy-to-change bottomless tokens
  • NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
  • NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping
  • NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction
  • NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support
  • Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
  • Removable Rebound knob doubles as HSC and ABO adjuster
  • 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights
  • 8x30 Bearing Adapter available for all standard eyelets, sold as an upgrade kit.
  •
  •
  •
