Santa Cruz Blur 5 CC Deore

RockShox Sid, Fox Rhythm, Shimano Deore M7200 Drivetrain

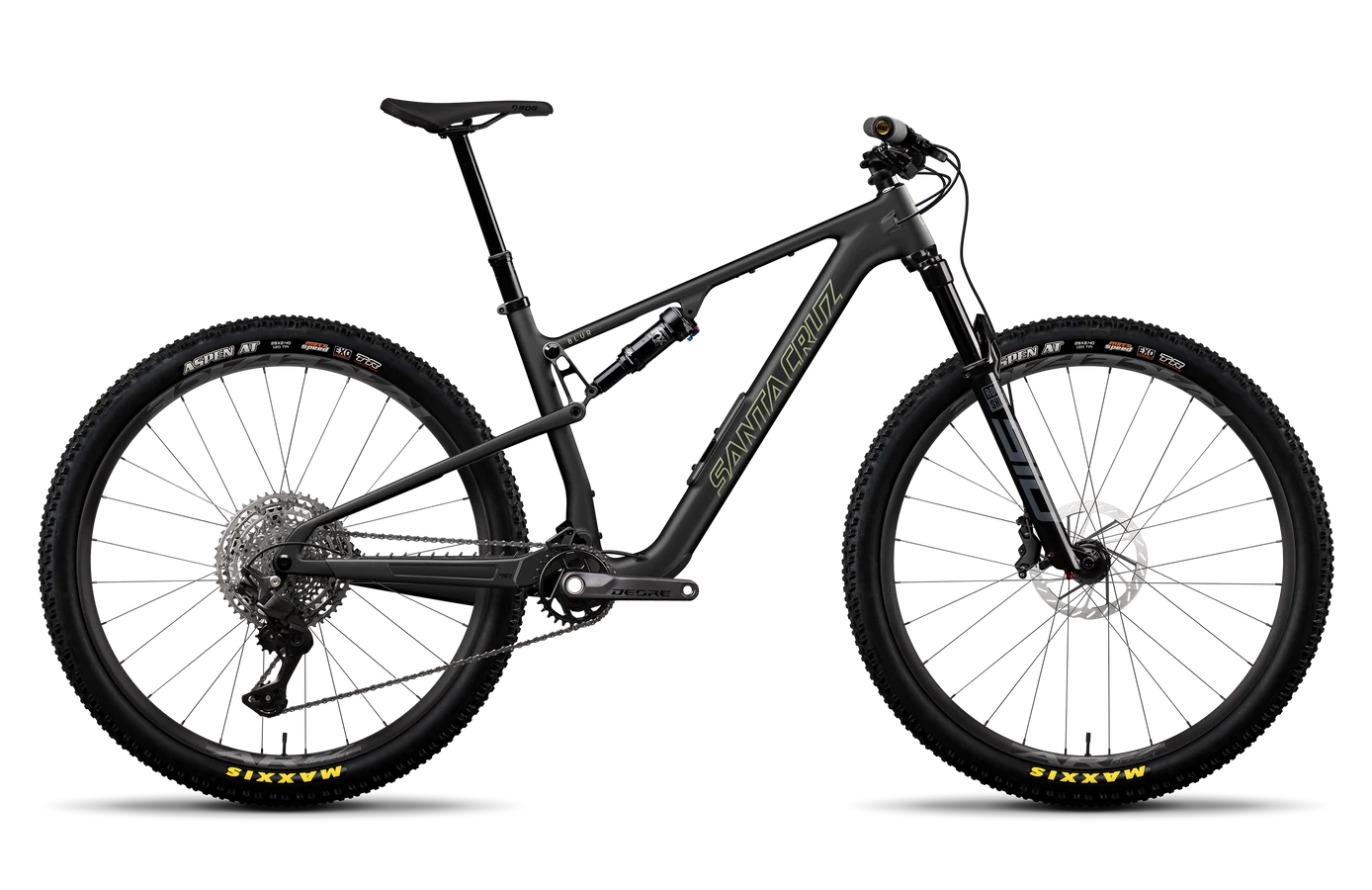

Colour: Matte Charcoal
Size
Regular price $8,19900
Santa Cruz

For Race Days and Weekdays

The new Blur is made for trails, whether you’re racing for podiums or hammering into the sunrise. The suspension, geometry, and chassis combine to deliver a platform capable of the top step, the rest is up to you.

Santa Cruz bumped up the travel, updated the geometry, and spent a lot of time tweaking the suspension kinematics to encourage you to obliterate the boundaries of a traditional “XC bike.” The Blur is right at home sprinting for the hole shot, but it’s also a lightweight and immensely capable short-travel trail bike for the days between the races. Whether you're sprinting out of the gate or out of a corner, aiming for the horizon or the apex, the Blur takes XCO and injects some 'oh, hell yeah!' into every ride, Monday through Sunday.

Reduced & Refined

Less surface area means less weight. Santa Cruz slimmed down the frame tubes, tweaked the shapes, and took a pair of shears to nearly every carbon ply to reduce the amount of material required to make the frame. Despite the weight loss program, Blur is still built tough enough for a lifetime of riding on rough trails, and carries our legendary lifetime warranty for peace of mind.

Dialed Geometry

Santa Cruz extended the reach significantly, and paired it with shorter stems (50mm on standard builds, 60mm on race builds) to make you feel more like you’re riding “in” the bike instead of “on” the bike. Combined with a 75-degree seat tube angle and a 66-degree head tube angle, the new Blur encourages and rewards hard, aggressive riding on both the climbs and descents. That steeper seat tube is also shorter to allow for better seatpost insertion and longer droppers.

Geometry

S M L XL
Reach 425 450 475 500
Stack 588 588 597 611
Head tube angle 66° 66° 66° 66°
Head Tube Length 90 90 100 115
Rear Center 433 435 437 439
Front Center 718 743 772 803
BB Height 334 334 334 334
BB Drop 38.5 38.5 38.5 38.5
Wheelbase 1151 1178 1209 1242
Top Tube Length 575 596 622 650
Seat Tube Length 405 405 440 490
Seat Tube Angle 75.7° 76° 76.1° 76.2°
Seat Tube Angle at Saddle Height 75.0 at 680 75.1 at 730 75.1 at 780 75.1 at 830
Standover Height 735 743 745 744

Specs

Frame

Material

Carbon CC

Frame

Carbon CC 29" 120mm Travel Superlight™

Travel

120mm

Weight

29.12lbs / 13.21kg

Wheel Size

29"
Suspension

Fork

RockShox Sid Base, 3-Position, 120mm, w/ Lever

Shock

FOX Rhythm, 190x45
Drivetrain

Bottom Bracket

Shimano MT501 68/73mm Threaded

Cassette

Shimano Deore M6200, 10-51t

Chain

Shimano Deore M6100, 12spd

Chainguide

OneUp Chainguide

Crankset

Shimano Deore M6200, 32t S: 165mm; M-XL: 170mm

Rear Derailleur

Shimano Deore M7200, 12spd

Right Shifter

Shimano Deore M6200, 12spd w/ Wolf Tooth Shiftmount Adapter for MM
Brakes

Brakes

SRAM DB8

Front Rotor

SRAM Centerline, 180mm

Rear Rotor

SRAM Centerline, 180mm
Cockpit

Grips / Bar Tape

ESI Chunky Grips

Handlebars

RaceFace Ride, 35mm, 10mm Rise All Sizes: 760mm

Headset

FSA IS-2/47/42 ACB

Saddle

SDG Bel-Air V3 Steel

Seatpost

SDG Tellis Dropper, 31.6 S: 125mm, M: 150mm; L: 170mm; XL: 200mm

Stem

RaceFace Ride All Sizes: 50mm
Wheels

Front Rim

RaceFace AR Offset 27 29

Front Hub

Shimano TC500, 15x110, Centerlock, 32h

Front Tire

Maxxis Aspen AT 29x2.4 MaxxSpeed EXO

Rear Rim

RaceFace AR Offset 27 29

Rear Hub

Shimano TC600, 12x148, MicroSpline, Centerlock, 32h

Rear Tire

Maxxis Aspen AT 29x2.4 MaxxSpeed EXO

Valves

Reserve Fillmore Valves
Specs

Bottom Bracket Shell

Threaded 73mm

Derailleur Hanger

UDH

Downtube Storage

Glovebox 2

Shock Length

190mm

Fork Axle to Crown

530mm

Fork Compatibility

120-130mm

Fork Offset

44mm

Headset

Integrated (IS41/52)

Max Chainring Size

38t

Max Rotor Size

180mm

Max Tire Clearance

May vary according to tire and rim model

2.4"

Front Spacing

110mm

Rear Spacing

148mm

Rear Travel

120mm

Recommended Sag

13mm

Seat Clamp Diameter

36.4mm

Seat Post Diameter

31.6mm

Shock Bushing Size Front

8x20

Shock Bushing Size Rear

8x20

Shock Stroke

45mm

Suspension System

Superlight

Water Bottle Mounts

2
