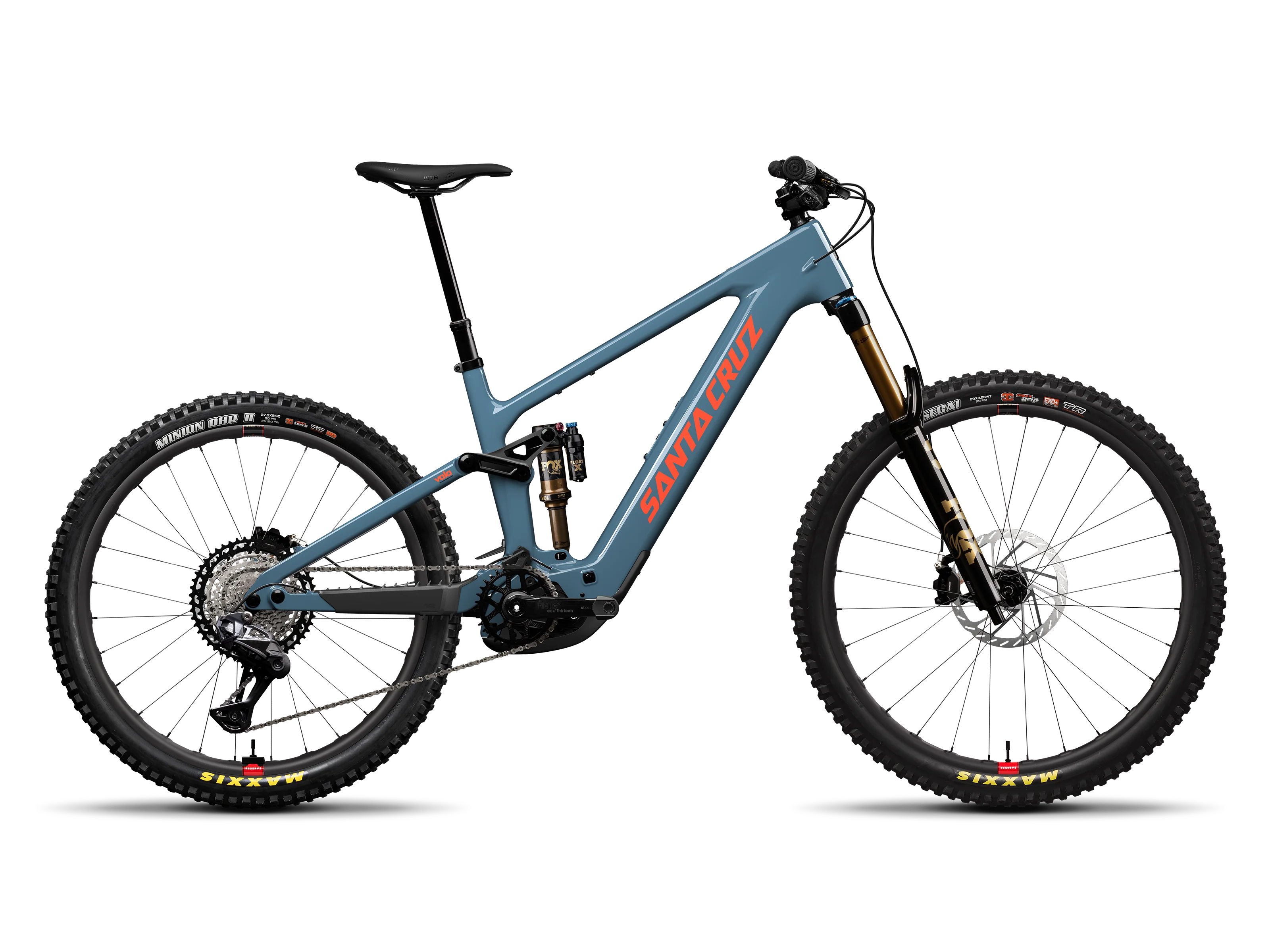

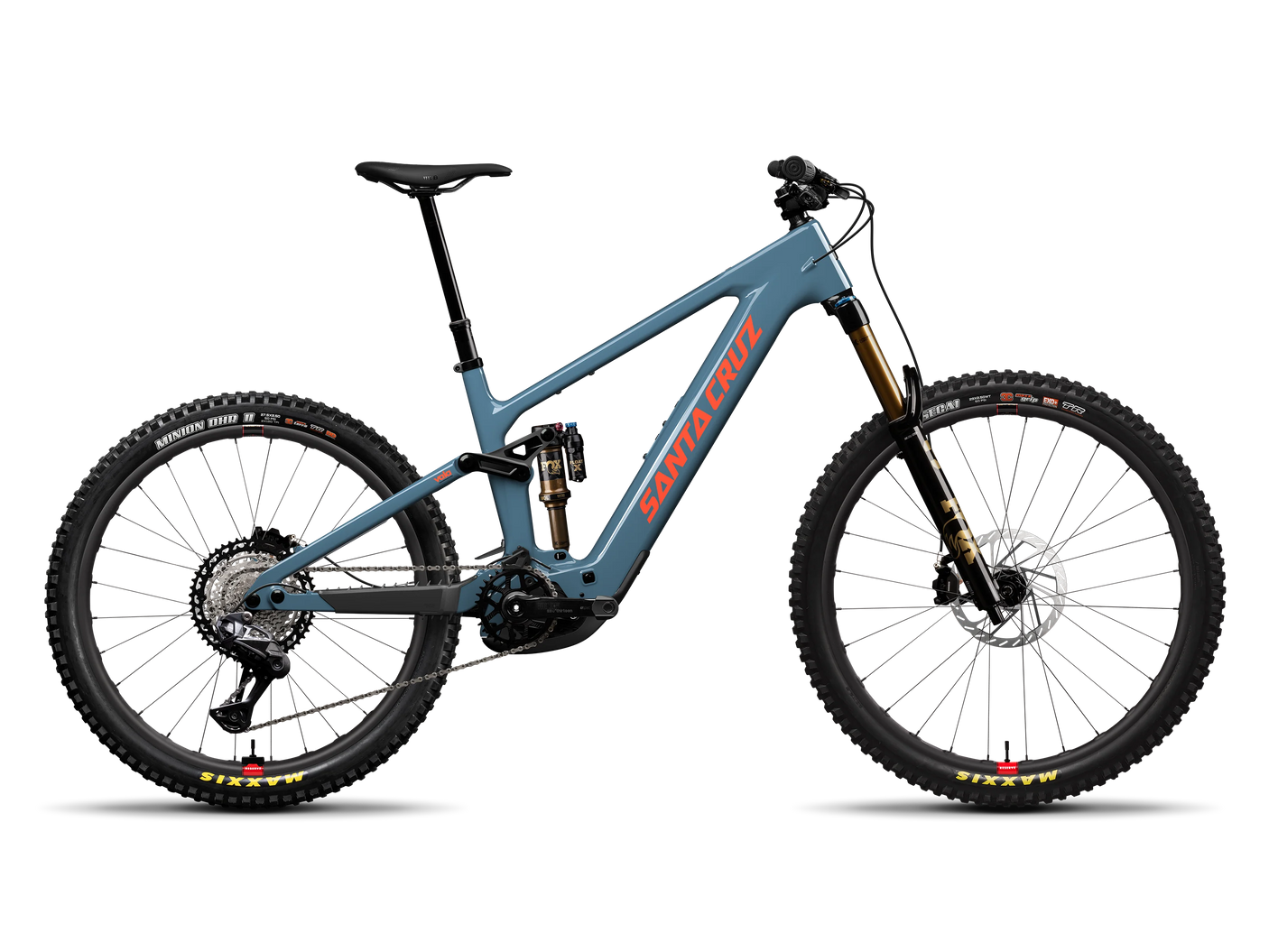

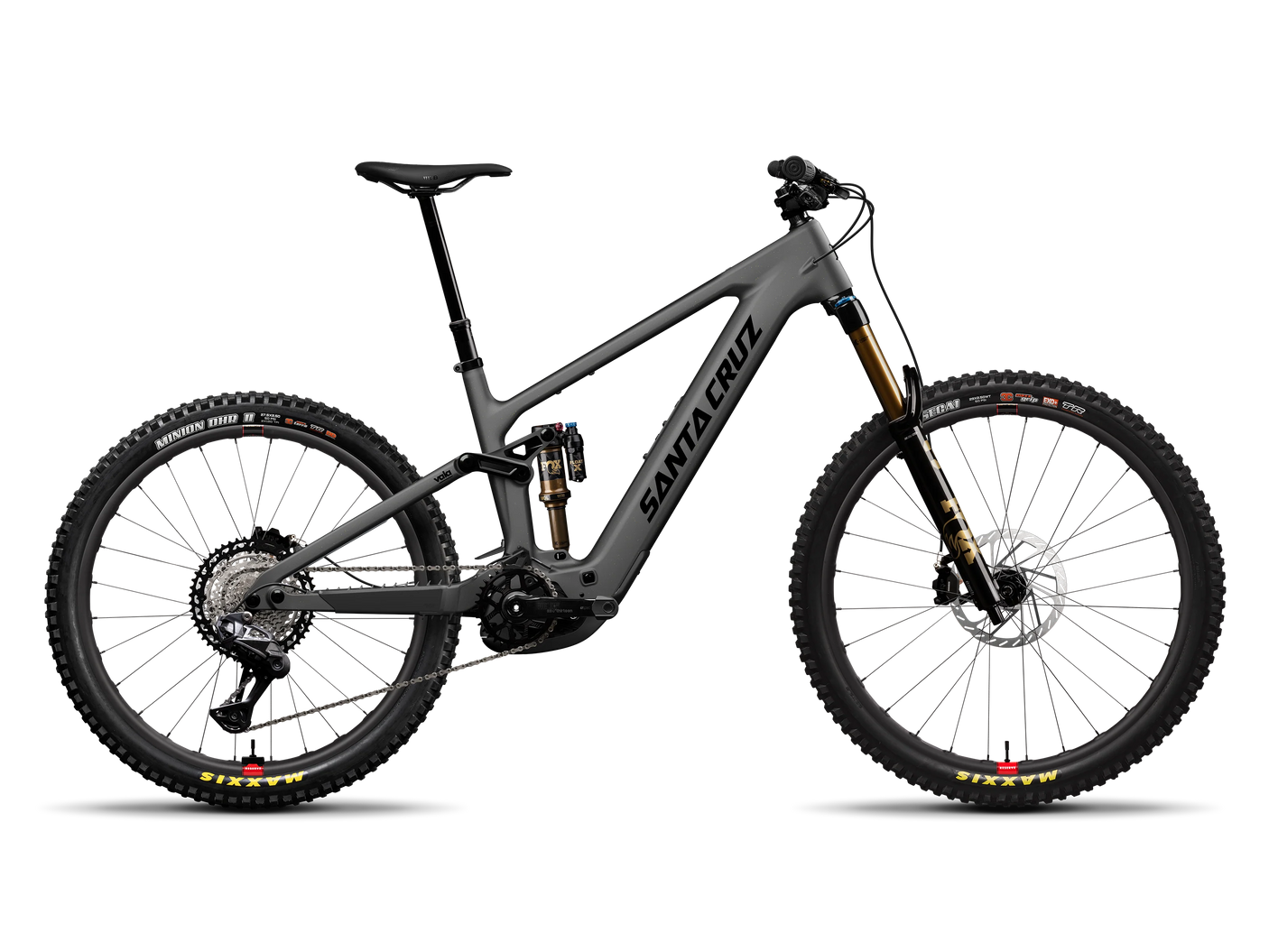

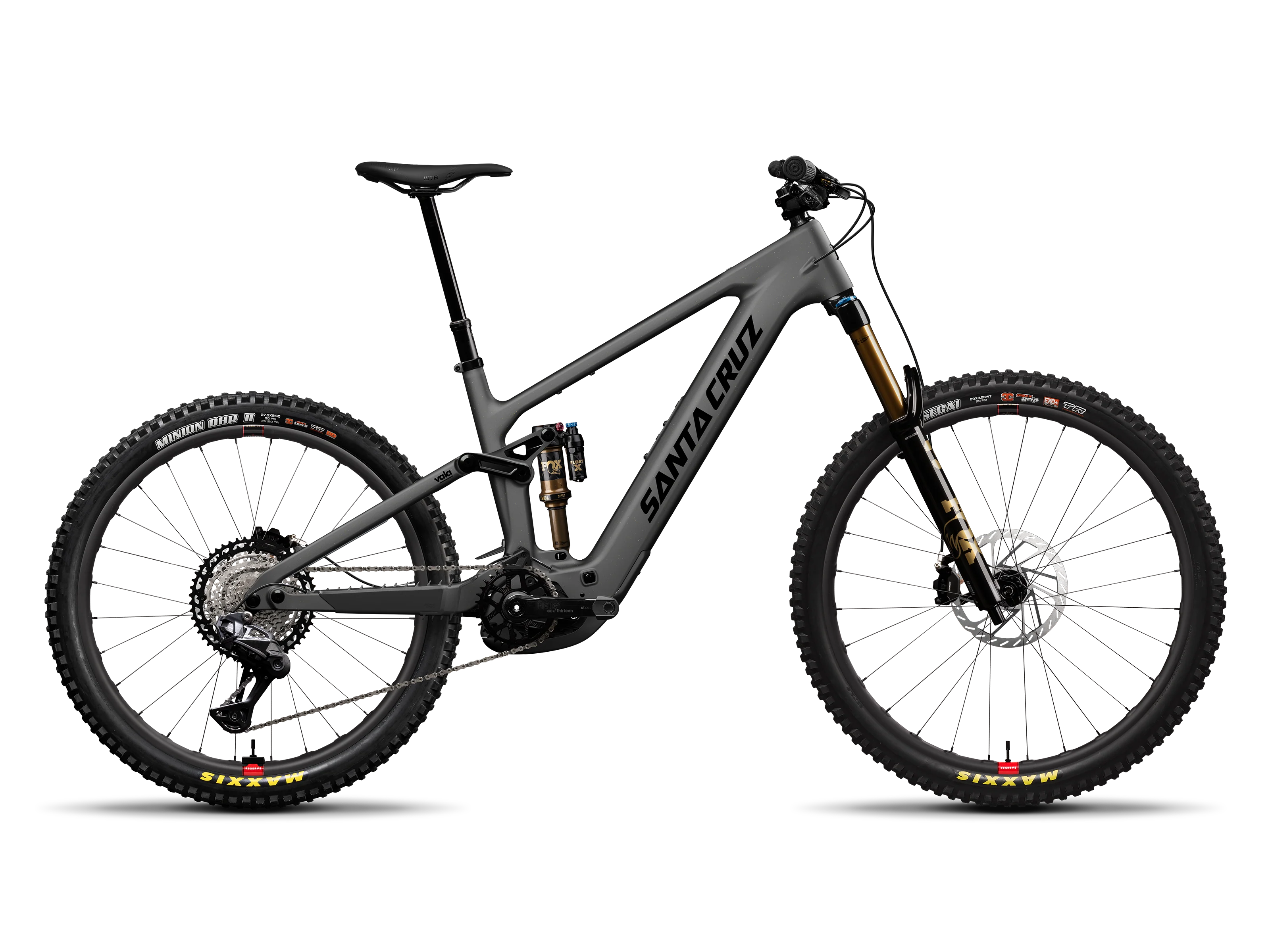

Santa Cruz Vala CC XT Di2 Reserve
For rides of exceptional quality
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
Class-leading power and handling
All the legendary Santa Cruz dynamics—supreme handling, great suspension, and longevity—are paired with the class-leading new Bosch Performance Line CX motor and a versatile battery solution. The Vala is a full-power eMTB built for real trails, not tribulations.
Geometry (Hi)
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 623 | 632 | 641 | 655 | 668 |
| Head tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 344 | 344 | 344 | 344 | 344 |
| BB Drop Front | 28 | 28 | 28 | 28 | 28 |
| BB Drop Rear | 11 | 11 | 11 | 11 | 11 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
Geometry (Lo)
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 432 | 456 | 477 | 497 | 522 |
| Stack | 625 | 635 | 643 | 657 | 670 |
| Head tube angle | 63.9° | 63.9° | 63.9° | 63.9° | 63.9° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 340 | 340 | 340 | 340 | 340 |
| BB Drop Front | 32 | 32 | 32 | 32 | 32 |
| BB Drop Rear | 15 | 15 | 15 | 15 | 15 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.2° | 77.2° | 77.2° | 77.2° | 77.2° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
Specs
| Frame | ||
|---|---|---|
|
Material |
Carbon CC | |
|
Frame |
Carbon CC MX 150mm Travel 4-Bar | |
|
Travel |
150 | |
|
Weight |
47.11 lbs / 21.37 kg | |
|
Wheel Size |
MX | |
| Suspension | ||
|
Fork |
FOX 38 Factory, Grip X2, 160mm | |
|
Shock |
FOX Float X Factory, 205x60 | |
| Drivetrain | ||
|
Cassette |
Shimamo XT M8200, 10-51t | |
|
Chain |
Shimano XT M8100, 12spd | |
|
Chainguide |
OneUp Chainguide | |
|
Crankset |
e13 Helix Race Alloy e*spec All Sizes: 160mm | |
|
Rear Derailleur |
Shimano Deore XT Di2 M8260, SGS, 12spd | |
|
Right Shifter |
Shimano Deore XT M8250 Shift Switch w/ Wolf Tooth Shiftmount Adapter for MM | |
| Brakes | ||
|
Brakes |
SRAM Maven Silver | |
|
Front Rotor |
SRAM HS2 200mm | |
|
Rear Rotor |
SRAM HS2 200mm | |
| Cockpit | ||
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | |
|
Handlebars |
OneUp Carbon Bar, 35mm S: 760mm, 20mm Rise M-XXL: 800mm, 35mm Rise | |
|
Headset |
Cane Creek 50 IS Integrated Headset | |
|
Saddle |
WTB Silverado Medium Fusion, CroMo SL | |
|
Seatpost |
OneUp Dropper Post, 31.6 S: 120mm, M: 180mm, L: 210mm, XL-XXL: 240mm | |
|
Stem |
Santa Cruz CNC All Sizes: 40mm | |
| Wheels | ||
|
Front Rim |
Reserve 30|HD Carbon | |
|
Front Hub |
DT Swiss 350, 15x110, 6-Bolt, 28h | |
|
Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ | |
|
Rear Rim |
Reserve 30|HD Carbon | |
|
Rear Hub |
DT Swiss 350 DEG DF, 12x148, MiscroSpline, 6-Bolt, 28h | |
|
Rear Tire |
Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown | |
|
Valves |
Reserve Fillmore Valves | |
| Ebike | ||
|
Battery |
Bosch PowerTube Battery 600Wh | |
|
Drive Unit |
Bosch Performance CX BDU38 | |
| Specs | ||
|
Headset |
Integrated (IS41/52) | |
|
Fork Axle to Crown |
571mm | |
|
Fork Offset |
44mm | |
|
Suspension System |
Four-bar | |
|
Rear Travel |
151mm | |
|
Recommended Sag |
30% | |
|
Shock Length |
205mm | |
|
Shock Stroke |
60mm | |
|
Bottom Bracket Shell |
EMTB | |
|
Max Chainring Size |
36t | |
|
Front Derailleur Mount |
No Compatibility | |
|
UDH Compatible |
Yes | |
|
Rear Spacing |
148mm | |
|
Rear Brake Mount |
200mm PM | |
|
Max Rotor Size |
220mm | |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" | |
|
Seat Post Diameter |
31.6mm | |
|
Seat Clamp Diameter |
36.4mm | |
|
Water Bottle Mounts |
1 | |
