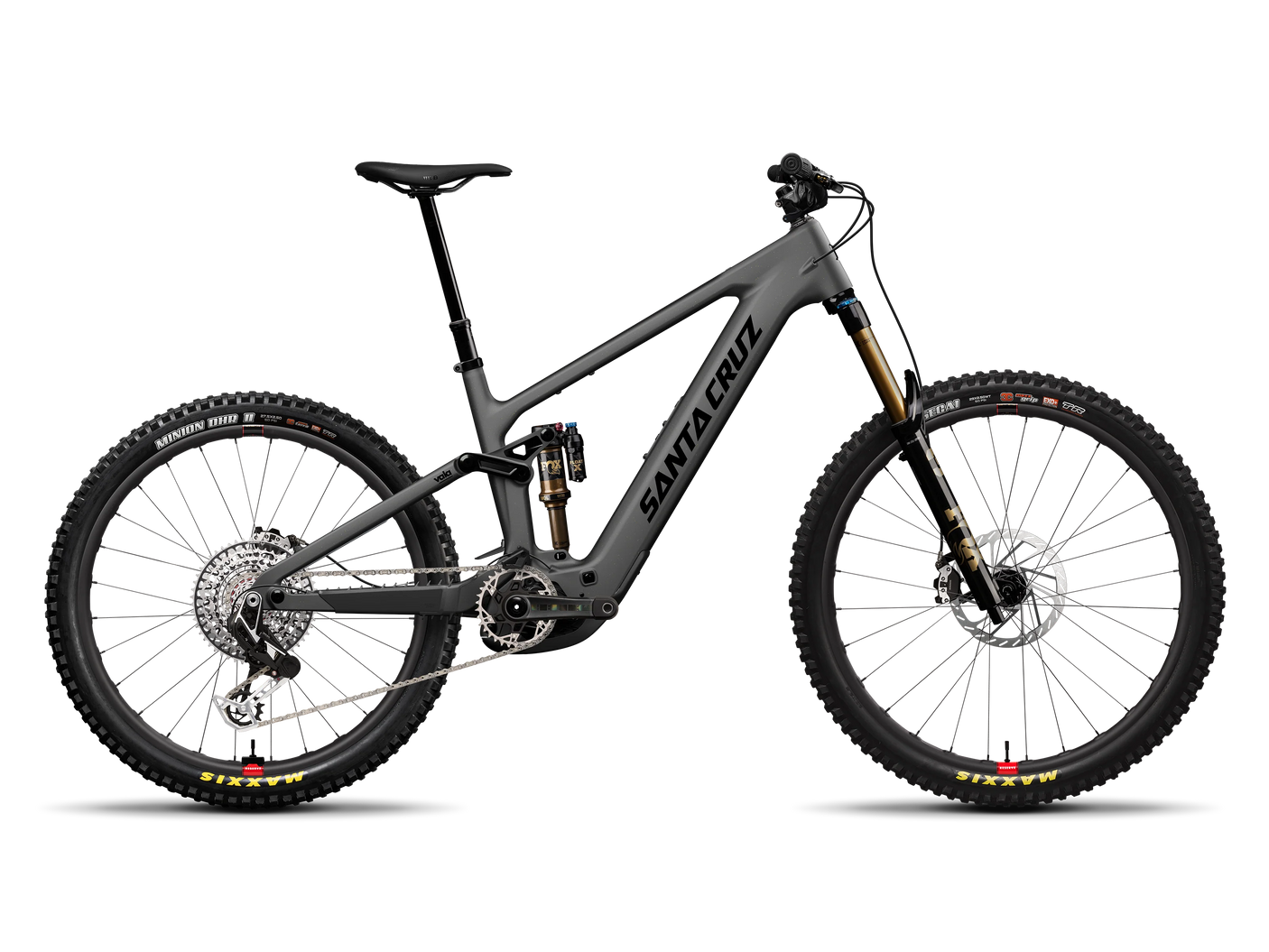

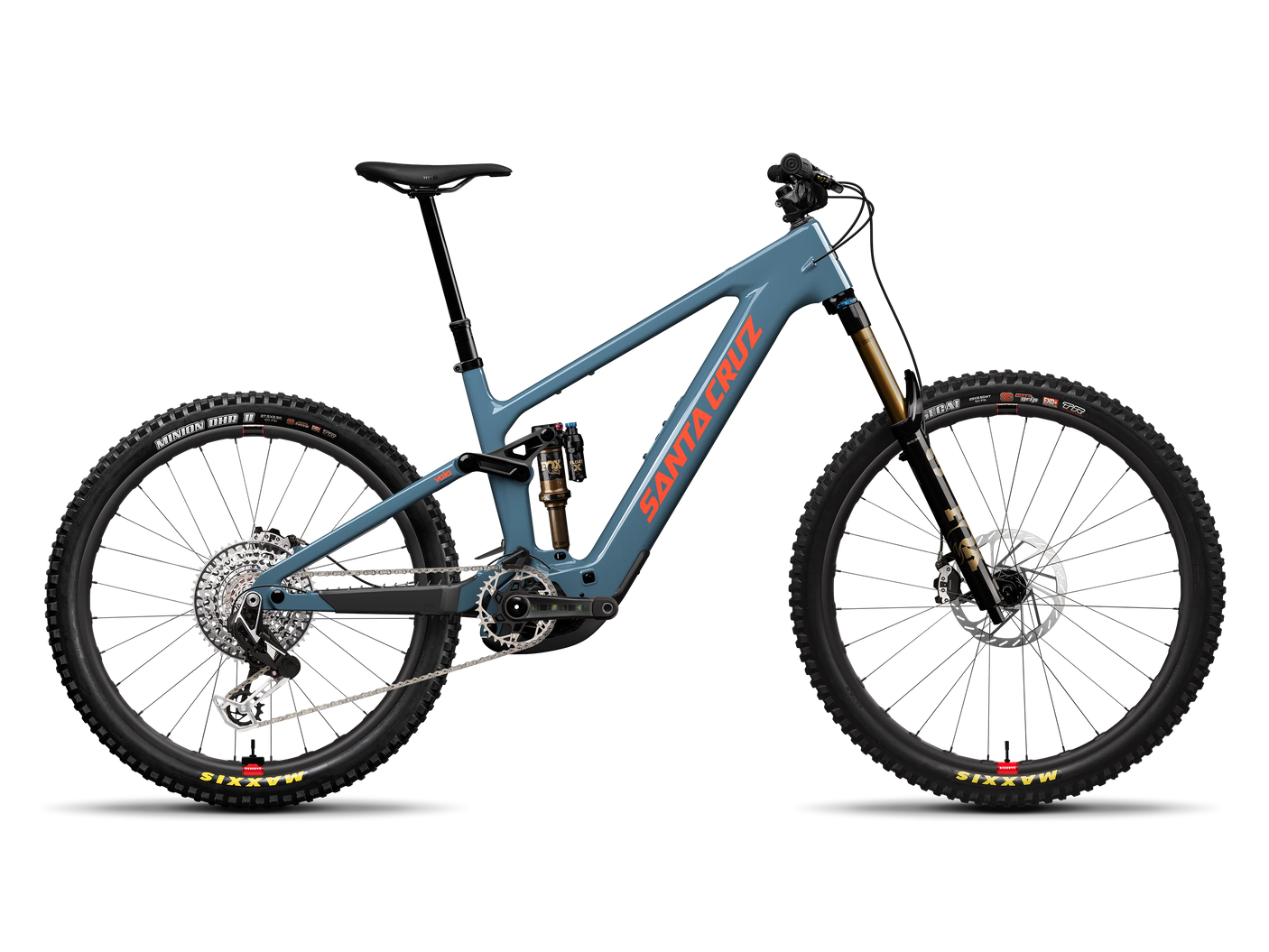

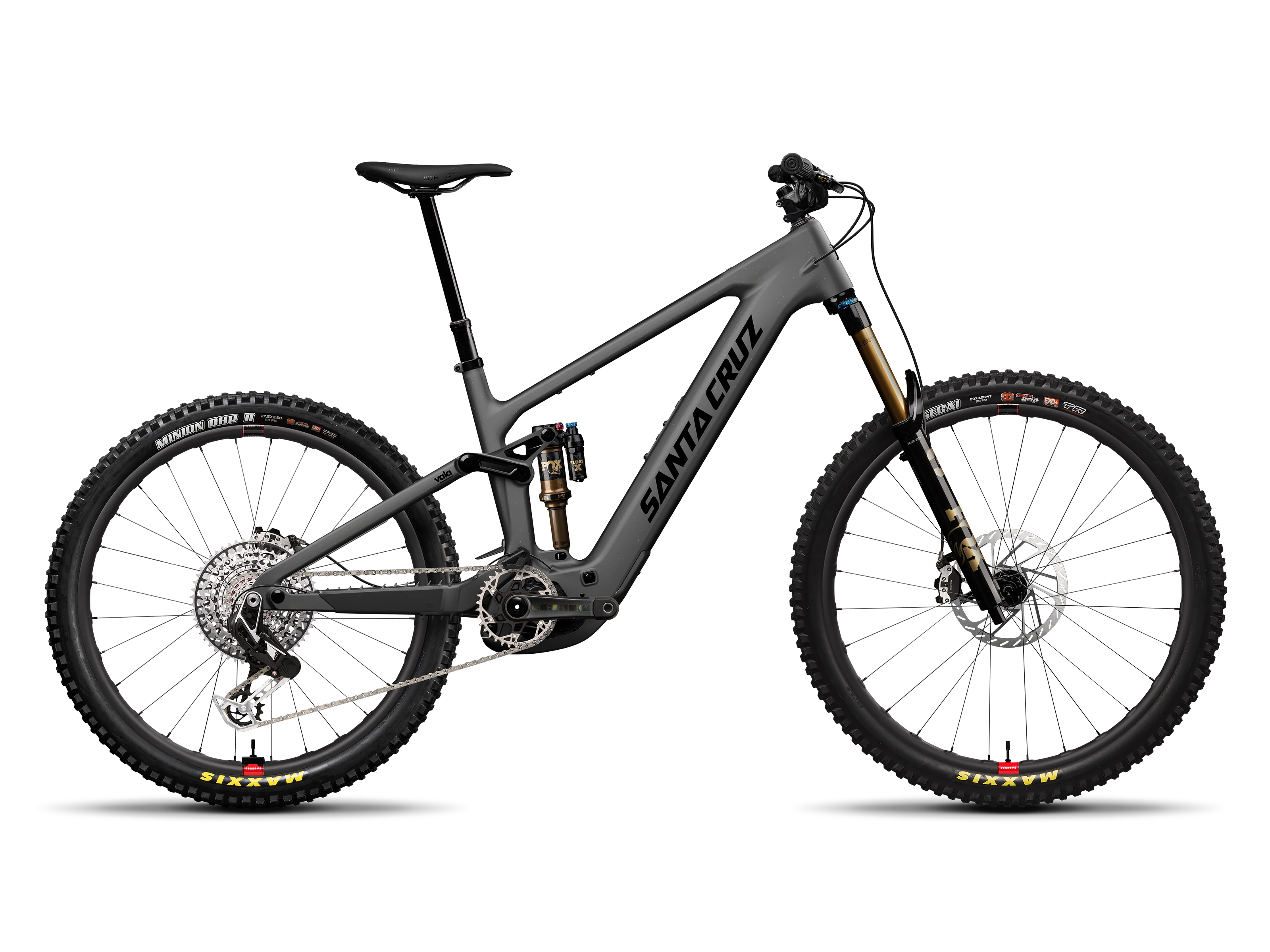

Santa Cruz Vala CC XX AXS Lite Reserve
The New Vala Lite
Built on the same chassis as the Vala, and using the same full-power Bosch motor, the Vala Lite build kits swap some of the smash-ready components for a optimised build that will save you up to 680 grams. You'll find a Fox 36 instead of a 38, and lighter wheels and tyres to reduce rotational weight. The result is a full-power e-bike that's easier to lift over trail obstacles, accelerates faster, and leaves you less fatigued at the end of a lap. Ready for another one?
For rides of exceptional quality
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
Class-leading power and handling
All the legendary Santa Cruz dynamics—supreme handling, great suspension, and longevity—are paired with the class-leading new Bosch Performance Line CX motor and a versatile battery solution. The Vala is a full-power eMTB built for real trails, not tribulations.
Geometry (Hi)
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 623 | 632 | 641 | 655 | 668 |
| Head tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 344 | 344 | 344 | 344 | 344 |
| BB Drop Front | 28 | 28 | 28 | 28 | 28 |
| BB Drop Rear | 11 | 11 | 11 | 11 | 11 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
Geometry (Lo)
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 432 | 456 | 477 | 497 | 522 |
| Stack | 625 | 635 | 643 | 657 | 670 |
| Head tube angle | 63.9° | 63.9° | 63.9° | 63.9° | 63.9° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height | 340 | 340 | 340 | 340 | 340 |
| BB Drop Front | 32 | 32 | 32 | 32 | 32 |
| BB Drop Rear | 15 | 15 | 15 | 15 | 15 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle | 77.2° | 77.2° | 77.2° | 77.2° | 77.2° |
| Standover Height | 741 | 735 | 734 | 734 | 728 |
Specs
| Frame | ||
|---|---|---|
|
Material |
Carbon CC | |
|
Frame |
Carbon CC MX 150mm Travel 4-Bar | |
|
Travel |
150 | |
|
Weight |
45.50 lbs / 20.64 kg | |
|
Wheel Size |
MX | |
| Suspension | ||
|
Fork |
FOX 36 Float Factory, Grip X2, 160mm | |
|
Shock |
FOX Float X Factory, 205x60 | |
| Drivetrain | ||
|
Bottom Bracket |
n/a | |
|
Cassette |
SRAM XX 1297 Eagle T-Type, 10-52t | |
|
Chain |
SRAM XX Eagle T-Type, Flattop, 12spd | |
|
Chainguide |
OneUp Chainguide | |
|
Crankset |
e13 Helix Race Carbon e*spec All Sizes: 160mm | |
|
Rear Derailleur |
SRAM XX Eagle AXS T-Type, 12spd | |
|
Right Shifter |
SRAM AXS Pod Controller Rocker | |
| Brakes | ||
|
Brakes |
SRAM Maven Ultimate Carbon | |
|
Front Rotor |
SRAM HS2 200mm | |
|
Rear Rotor |
SRAM HS2 200mm | |
| Cockpit | ||
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips | |
|
Handlebars |
OneUp Carbon Bar, 35mm S: 760mm, 20mm Rise M-XXL: 800mm, 35mm Rise | |
|
Headset |
Chris King DropSet 3 Integrated Headset | |
|
Saddle |
WTB Silverado Medium Fusion, Stainless | |
|
Seatpost |
OneUp Dropper Post, 31.6 S: 120mm, M: 180mm, L: 210mm, XL-XXL: 240mm | |
|
Stem |
Industry Nine A35 All SIzes: 40mm | |
| Wheels | ||
|
Front Rim |
Reserve 30|HD Carbon | |
|
Front Hub |
DT Swiss 240, 15x110, 6-Bolt, 28h | |
|
Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ | |
|
Rear Rim |
Reserve 30|HD Carbon | |
|
Rear Hub |
DT Swiss 240 DEG DF, 12x148, XD, 6-Bolt, 28h | |
|
Rear Tire |
Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, EXO+ | |
|
Valves |
Reserve Fillmore Valves | |
| Ebike | ||
|
Battery |
Bosch PowerTube Battery 600Wh | |
|
Drive Unit |
Bosch Performance CX BDU38 | |
|
Battery Charger |
n/a | |
| Specs | ||
|
Headset |
Integrated (IS41/52) | |
|
Fork Axle to Crown |
571mm | |
|
Fork Offset |
44mm | |
|
Suspension System |
Four-bar | |
|
Rear Travel |
151mm | |
|
Recommended Sag |
30% | |
|
Shock Length |
205mm | |
|
Shock Stroke |
60mm | |
|
Bottom Bracket Shell |
EMTB | |
|
Max Chainring Size |
36t | |
|
Front Derailleur Mount |
No Compatibility | |
|
UDH Compatible |
Yes | |
|
Rear Spacing |
148mm | |
|
Rear Brake Mount |
200mm PM | |
|
Max Rotor Size |
220mm | |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" | |
|
Seat Post Diameter |
31.6mm | |
|
Seat Clamp Diameter |
36.4mm | |
|
Water Bottle Mounts |
1 | |
