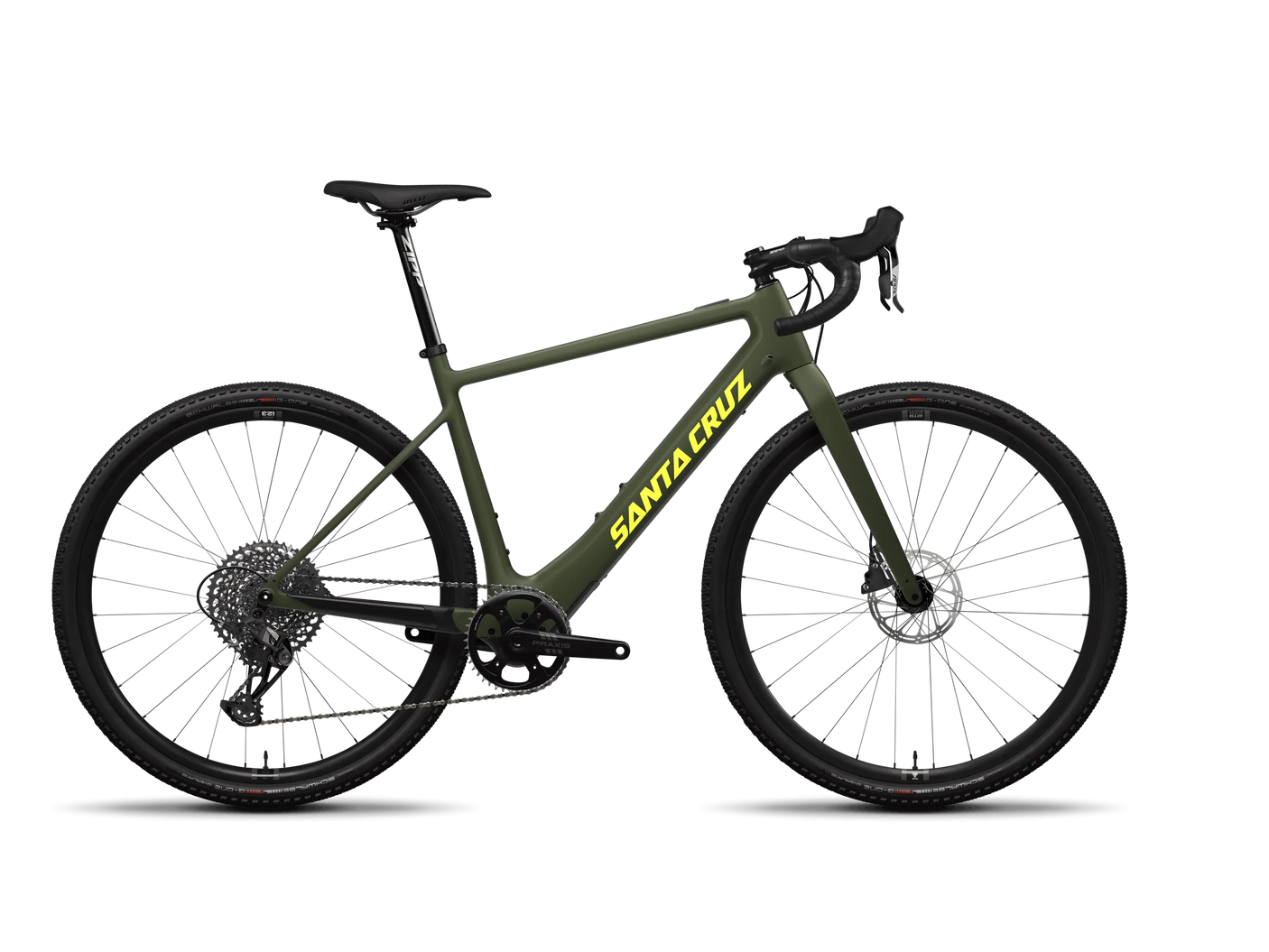

Santa Cruz Skitch
Select a build kit for an indication of price and please contact us for lead times and availability.
Santa Cruz Skitch - Skitch 1 CC 700C 24 APEX US is backordered and will ship as soon as it is back in stock.
For more info on availability of this bike, please contact us on 03 384 0355 or click below.
The Skitch is the ultimate city-slicking, traffic-flicking, alleycat-slipping, rat race-escaping teleportation device. The powerful and light motor gives you a nudge to spend less time behind a glass windscreen and more time with your knees in the breeze. You’ll look for even more excuses to get on your bike because even a city commute can be as much fun as bike park laps.
Available in: CC Carbon
Wheel Size: 700c
Battery Size: 430 Wh
Images may not show actual build kit content. Pricing and build specifications are subject to change without notice.
Skitch Frame Specifications
| Wheel Size | 700x45 |
| Max Tire Size | 50mm |
| Fork AC | 430mm |
| Fork Offset | 45mm |
| Rear Spacing | 148mm |
| UDH Compatible | Yes |
| Headset | IS 41 /IS52 |
| Max Chainring | 46t |
| Brake Mount | Flatmount 160mm Direct |
| Max Rotor Size | 180mm |
Geometry
All units are in millimeters or degrees.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 390 | 405 | 420 | 435 | 450 |
| Stack | 563 | 579 | 596 | 610 | 630 |
| Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
| Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| Front Center | 624 | 646 | 668 | 689 | 711 |
| BB Height | 279 | 281 | 281 | 283 | 283 |
| BB Drop | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1047 | 1070 | 1092 | 1112 | 1135 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Head Tube Length | 105 | 125 | 145 | 160 | 180 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Standover Height | 728 | 753 | 778 | 804 | 830 |
