Santa Cruz Tallboy 6 CC GX AXS

  • 24 months interest free available

  • Workride Provider

  • Northride Partner

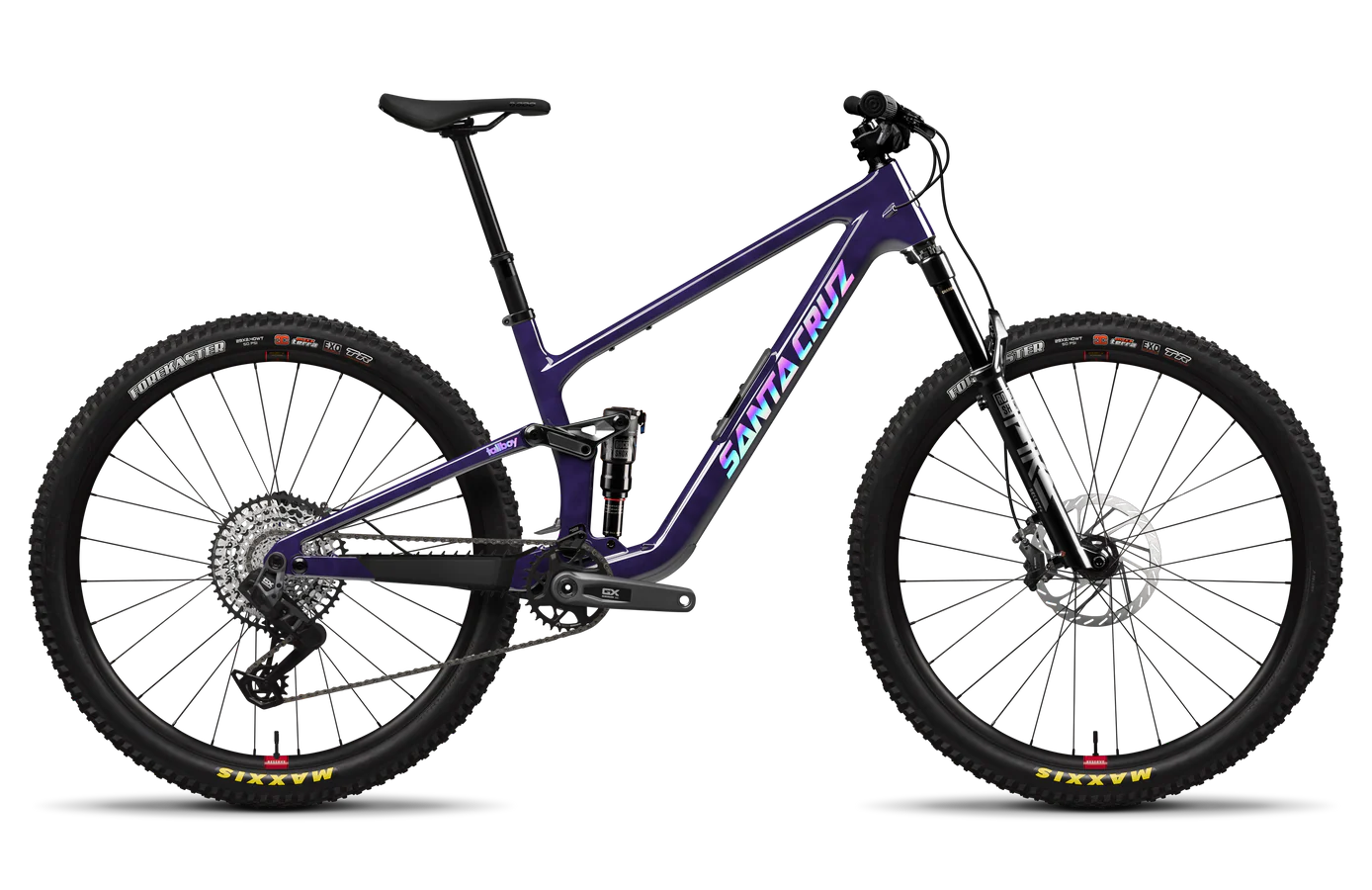

Colour: Gloss Midnight Violet
Size
$11,49900
Santa Cruz  |  SKU 58-27324-334-2-948-184701

Let’s Get You Set Up
Our goal is that your new bike is ready-to-ride with minimal assembly and setup required.

Built Right
All bikes are first properly built by us and test ridden at our Christchurch shop before being carefully re-boxed to ship to you.

Some Assembly Required
While the main components like gears and brakes are setup and ready to go, some knowledge to reassemble will be required. Feel free to contact us to discuss options for another bike shop to reassemble it for you.

Delivery & Shipping
Bikes that are in-store now are usually boxed and dispatched in a few business days.

Bikes that are available to order are first ordered to us and can take about a week before we can box and dispatch them to you.

If there will be a significant delay in shipment of your order, we will contact you.

Rural Deliveries
Bikes can't usually be delivered to rural addresses, please contact us first.

See full shipping details

The Tallboy is a short-travel bike with long legs. Our perennial 29-inch bike has gone on a diet and bulked up the amount of travel to fit the kind of rider looking to maximize power hours or just ride all the hours. It’s light and efficient enough to climb with the best of them, yet punches way above its weight class as soon as the trail turns down. Excellent suspension, big wheels, thoroughly-tuned carbon layup and rock-solid reliability let you go as hard as you want.

Geometry

XS S M L XL XXL
Reach (Hi/Lo) 410/407 435/432 455/452 475/472 495/492 520/517
Stack (Hi/Lo) 601/603 610/612 624/626 633/635 646/649 660/662
Head Tube Angle (Hi/Lo) 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8° 65.1°/64.8°
Head Tube Length 90 100 115 125 140 155
Rear Center (Hi/Lo) 435/435.5 435/435.5 435/435.5 438/438.5 440/440.5 444/444.5
Front Center (Hi/Lo) 721/721 750/750 777/776 801/801 827/827 858/858
BB Height (Hi/Lo) 336/333 336/333 336/333 336/333 336/333 336/333
BB Drop (Hi/Lo) 36/39 36/39 36/39 36/39 36/39 36/39
Wheelbase (Hi/Lo) 1156/1156 1185/1186 1212/1212 1239/1239 1267/1267 1302/1303
Top Tube Length (Hi/Lo) 542/542 569/570 596/596 616/616 637/638 666/666
Seat Tube Length (Hi/Lo) 360/370 380/380 400/400 420/430 450/450 500/500
Seat Tube Angle (Hi/Lo) 77.6°/77.3° 77.6°/77.3° 77.3°/77° 77.4°/77.2° 77.5°/77.3° 77.5°/77.3°
Seat Tube Angle at Saddle Height (Hi/Lo) 77.4/77.1 at 640 77/76.8 at 680 76.5/76.3 at 730 76.5/76.3 at 780 76.5/76.3 at 830 76.5/76.3 at 870
Standover Height (Hi/Lo) 699/695 703/699 718/714 728/725 742/739 758/755

Specs

Frame

Material

 Carbon CC

Frame

 Carbon CC 29" 130mm Travel 4-Bar

Travel

 130mm

Weight

 29.35 lbs / 13.31 kg

Wheel Size

 29"
Suspension

Fork

 RockShox Pike Select+, 140mm

Shock

 RockShox Deluxe Select+, 185x50
Drivetrain

Bottom Bracket

 SRAM DUB 73mm MTB Wide BB

Cassette

 SRAM GX 1275 Eagle T-Type, 10-52t

Chain

 SRAM GX Eagle T-Type, Flattop, 12spd

Chainguide

 OneUp Chainguide

Crankset

 SRAM GX Eagle DUB T-Type, 32t XS-S: 165mm, M-XXL: 170mm

Rear Derailleur

 SRAM GX Eagle AXS T-Type, 12spd

Right Shifter

 SRAM AXS Pod Controller
Brakes

Brakes

 SRAM Motive Bronze

Front Rotor

 SRAM HS2 200mm

Rear Rotor

 SRAM HS2 180mm
Cockpit

Grips / Bar Tape

 Santa Cruz Bicycles House Grips

Handlebars

 OneUp Carbon Bar, 35mm XS-M: 760mm, 20mm Rise, L-XXL: 800mm, 35mm Rise

Headset

 Cane Creek 50 IS Integrated Headset

Saddle

 SDG Bel-Air V3 Lux-Alloy Atmos

Seatpost

 OneUp Dropper Post, 31.6 XS: 120mm, S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm

Stem

 OneUp Enduro Stem All Sizes: 42mm
Wheels

Front Rim

 Reserve 30|SL AL 6069

Front Hub

 DT Swiss 370, 15x110, 6-Bolt, 28h

Front Tire

 Maxxis Forekaster 29"x2.4", MaxxTerra, EXO

Rear Rim

 Reserve 30|SL AL 6069

Rear Hub

 DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h

Rear Tire

 Maxxis Forekaster 29"x2.4", MaxxTerra, EXO

Valves

 Reserve Fillmore Valves
Specs

Bottom Bracket Shell

 73mm Threaded

Rear Brake Mount

 Postmount 180mm

Chainguide Standard

 Integrated upper guide

Chainline

 55

Derailleur Hanger

 UDH

Downtube Storage

 Glovebox

Shock Length

 185

Fork Axle to Crown

 554

Fork Compatibility

 140-150

Fork Offset

 44

Headset

 Integrated (IS41/52)

Max Chainring Size

 34

Max Rotor Size

 203mm

Max Tire Clearance

May vary according to tire and rim model

2.4"

Rear Spacing

 148mm

Rear Travel

 130mm

Recommended Sag

 30%

Seat Clamp Diameter

 36.4

Seat Post Diameter

 31.6

Shock Mounting Hardware Lower

 25x8

Shock Mounting Hardware Upper

 Trunnion

Shock Stroke

 50

Suspension System

 4-Bar

UDH Compatible

 Yes

Water Bottle Mounts

 1
