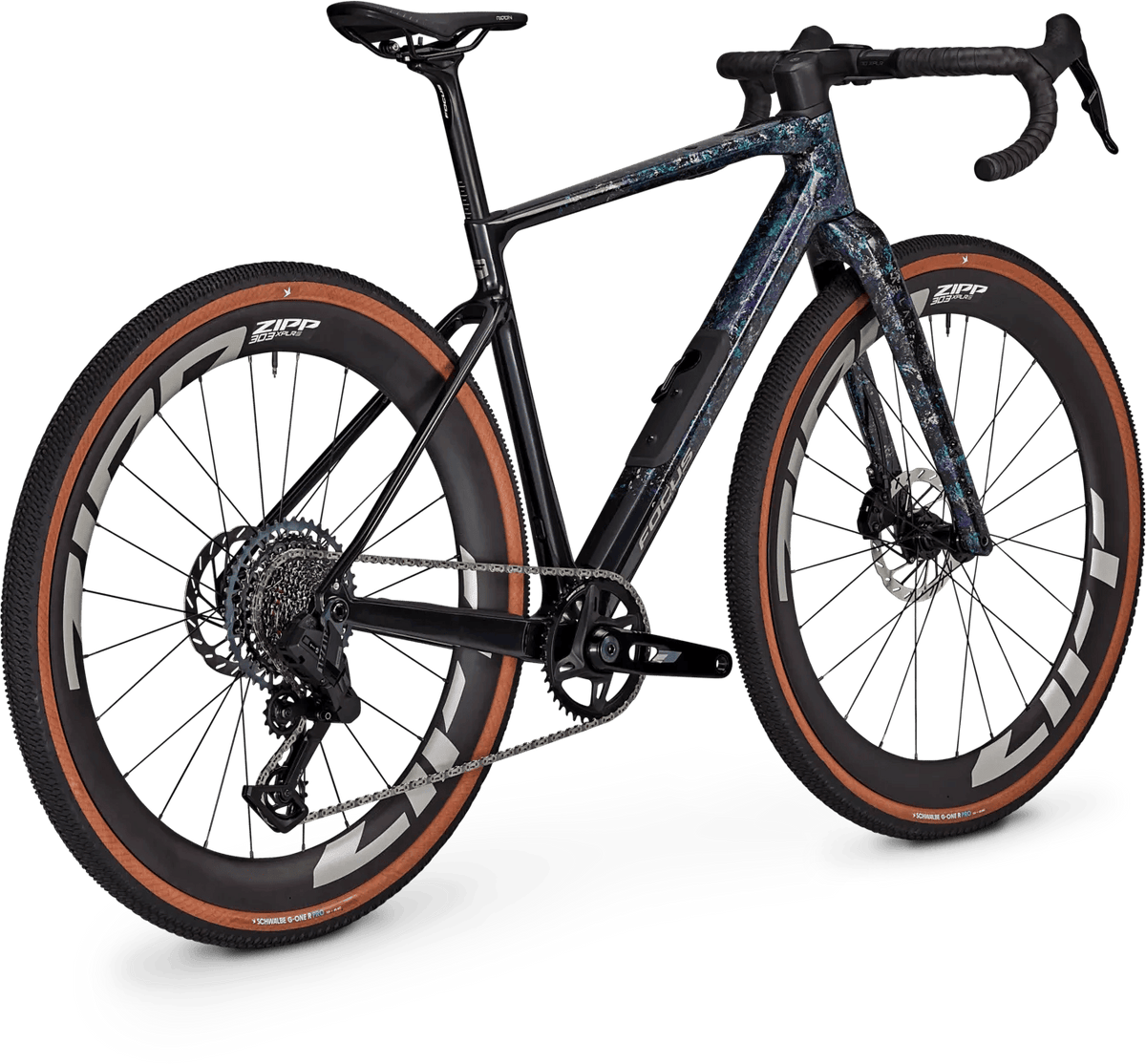

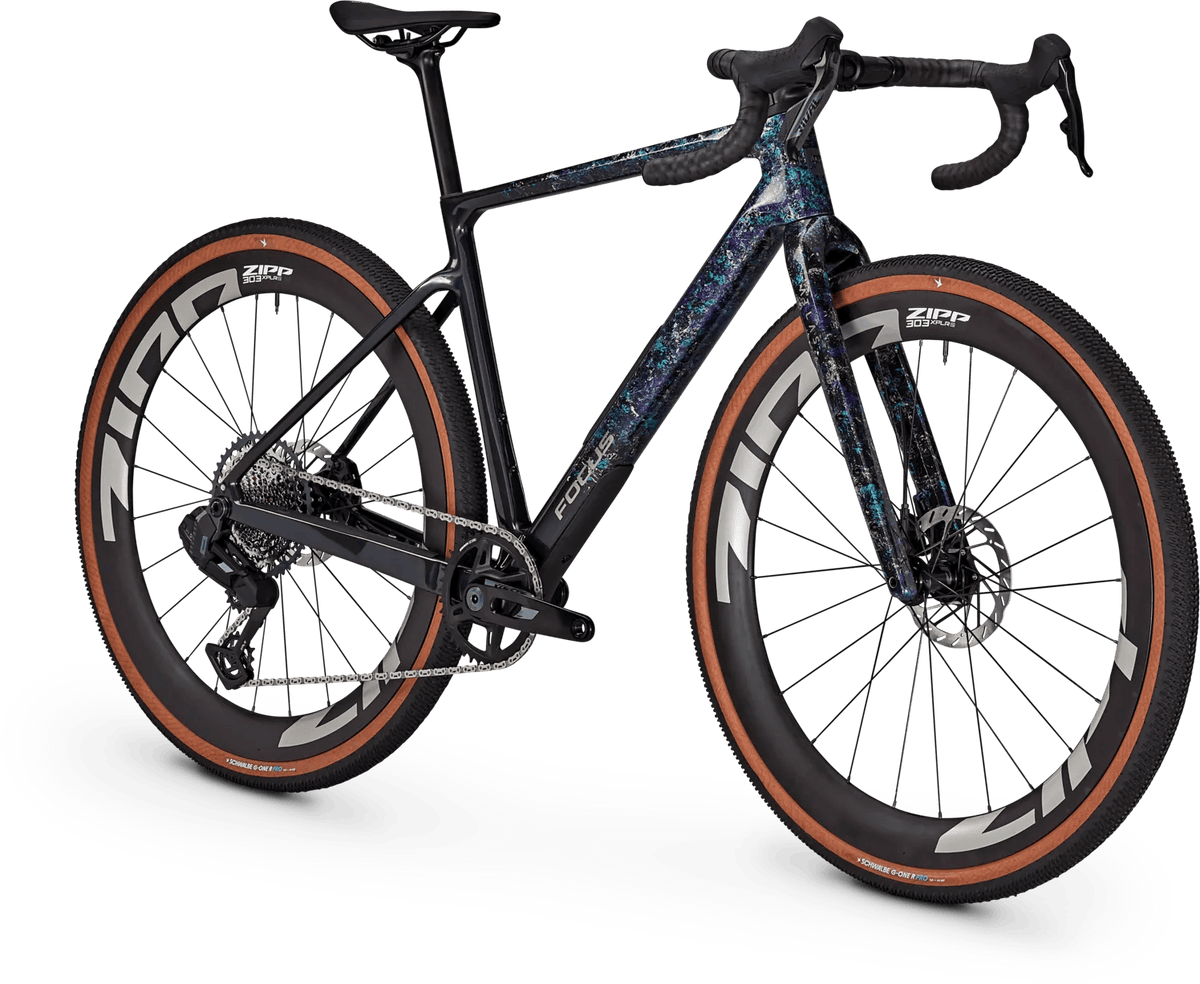

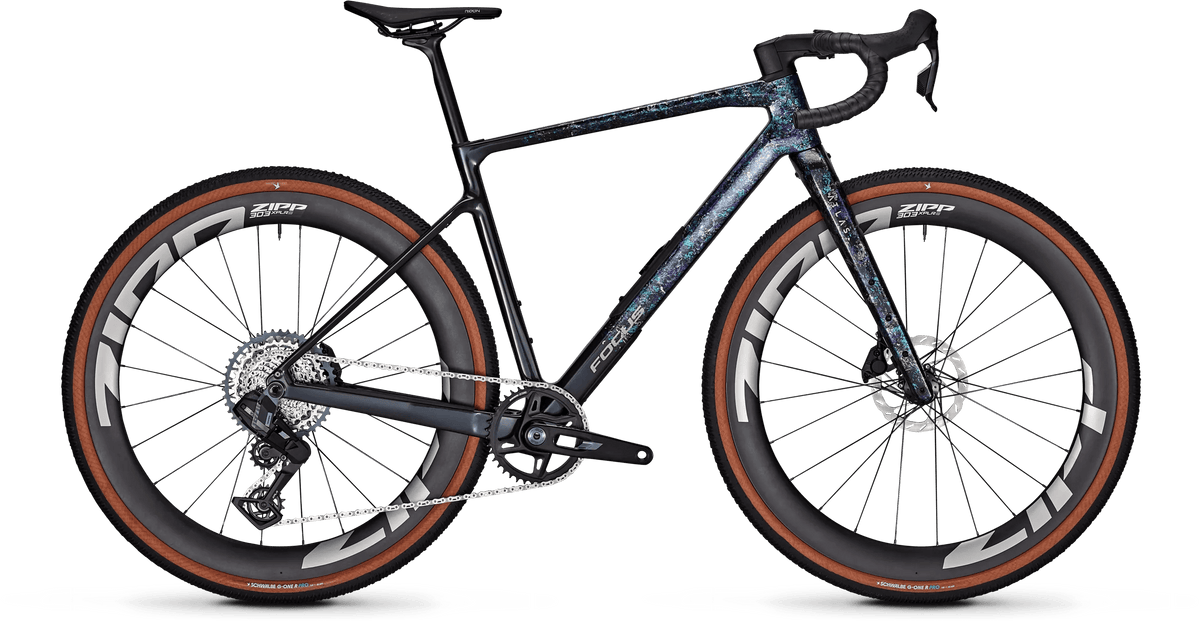

Focus Atlas 8.9

Carbon, SRAM Rival AXS 1x13, Zipp 303 Wheels

  • 24 months interest free available

  • Workride Provider

  • Northride Partner

Colour: Spaceclouds
Size
$7,99900
Focus  |  SKU D690006500

Let’s Get You Set Up
Our goal is that your new bike is ready-to-ride with minimal assembly and setup required.

Built Right
All bikes are first properly built by us and test ridden at our Christchurch shop before being carefully re-boxed to ship to you.

Some Assembly Required
While the main components like gears and brakes are setup and ready to go, some knowledge to reassemble will be required. Feel free to contact us to discuss options for another bike shop to reassemble it for you.

Delivery & Shipping
Bikes that are in-store now are usually boxed and dispatched in a few business days.

Bikes that are available to order are first ordered to us and can take about a week before we can box and dispatch them to you.

If there will be a significant delay in shipment of your order, we will contact you.

Rural Deliveries
Bikes can't usually be delivered to rural addresses, please contact us first.

See full shipping details

For gravel fans who refuse to choose between race-ready agility and all-day comfort, the Focus Atlas 8.9 hits the sweet spot.

Specs

  • Frame Carbon technology disc, 142x12 mm thru axle, flat mount 160 mm
  • Special Features Prep Pocket & Prep Pack
  • Fork Carbon technology, disc, 100x12 mm thru axle, flat mount 160 mm
  • Shifter SRAM Rival E1
  • Rear derailleur SRAM Rival E1 XPLR AXS, 13-speed
  • Cassette SRAM XG-1351 XPLR, 10-46T
  • Chain SRAM Rival E1
  • Crankset SRAM Rival E1, 40 T
  • Bottom bracket Sram, BSA DUB
  • Handlebar Zipp Service Course SL 70 XPLR, alloy, 31,8 mm, drop: 115 mm, reach: 70 mm, flare: 5° with 11° drop outsweep
  • Stem FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount
  • Headset ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated
  • Saddle fi'zi:k Ridon X5
  • Seatpost Carbon, 27,2 mm, set-back: 11mm
  • Brakes front | rear SRAM Rival E1 | SRAM Rival E1
  • Disc brake rotors SRAM HS2, front: 180 mm (Size L-XL), 160 mm (Size XS-M) / rear: 160 mm
  • Wheelset Zipp 303 XPLR S, carbon, rim height: 54 mm, width: 32-622
  • Tyres front | rear Schwalbe G-One R Pro, super race, tubeless ready, 45-622 | Schwalbe G-One R Pro, super race, tubeless ready, 45-622
  • Weight 8.7 kg
  • Permissible system weight 135 kg

Geometry

XS S M L XL
Size in mm 480 510 540 570 600
Handlebar width 380 400 420 440 440
Stem length 70 70 80 90 100
Crank length 170 170 172.5 172.5 175
Seatpost length 350 350 350 350 400
Seat tube length 440 470 500 530 560
Top tube length 506 531 548 564 593
Head angle (°) 70 70.5 70.5 70.5 70.5
Seat angle (°) 74.5 74 73.5 73.5 73
Chainstay length 425 425 425 425 425
Bottom bracket drop 75 75 75 75 75
Head tube length 105 120 140 160 190
Fork length 425 425 425 425 425
Fork offset 53 53 53 53 53
Wheelbase 1015 1031 1042 1059 1084
Stack 556 572 591 610 638
Reach 365 380 385 395 410
Standover height 757 778 802 825 852
Effective 416 432 447 467 482
Effective Stack 612 628 647 667 695
