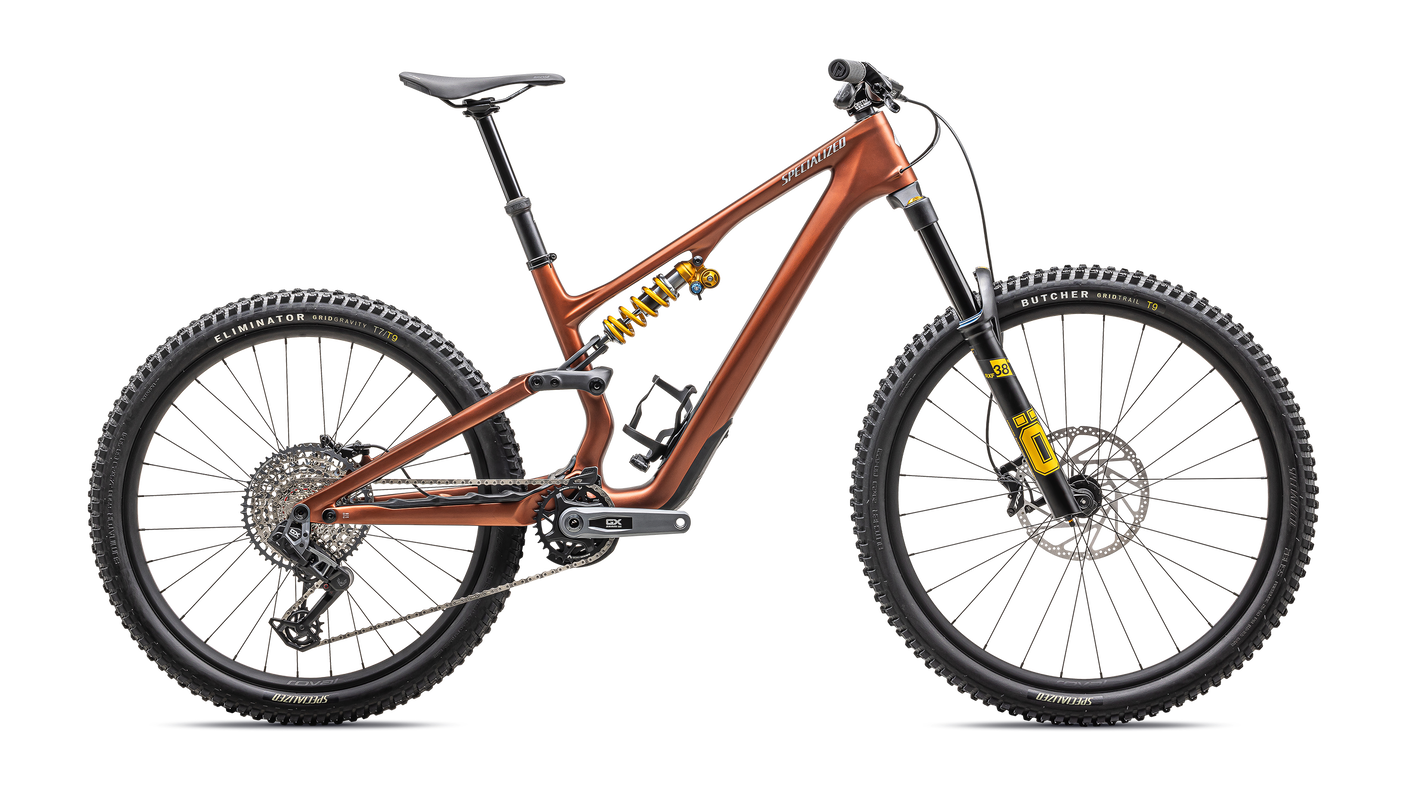

Specialized Stumpjumper 15 Ohlins Coil
Loading...
Delivery & Shipping
Orders for bikes available at our store are usually processed in 2-3 business days. Bikes coming from our supplier can take longer. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, please allow additional days for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone. Full shipping details.
Some Assembly Required
Shipped bikes will require some assembly.
Stumpjumper 15 is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check. KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics. HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough. RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket can be fine-tuned for stability or clearance. FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the FACT 11M carbon chassis—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding. WHEEL SIZE: All coil-sprung models come with mixed wheels. WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected. CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever. MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.
- SWAT
- SWAT 4.0 internal downtube storage
- Frame
- FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
- Seat Binder
- Alloy, 38.6mm
- Fork
- Öhlins RXF38 M.2 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 15x110mm, 44mm offset, 160mm of travel

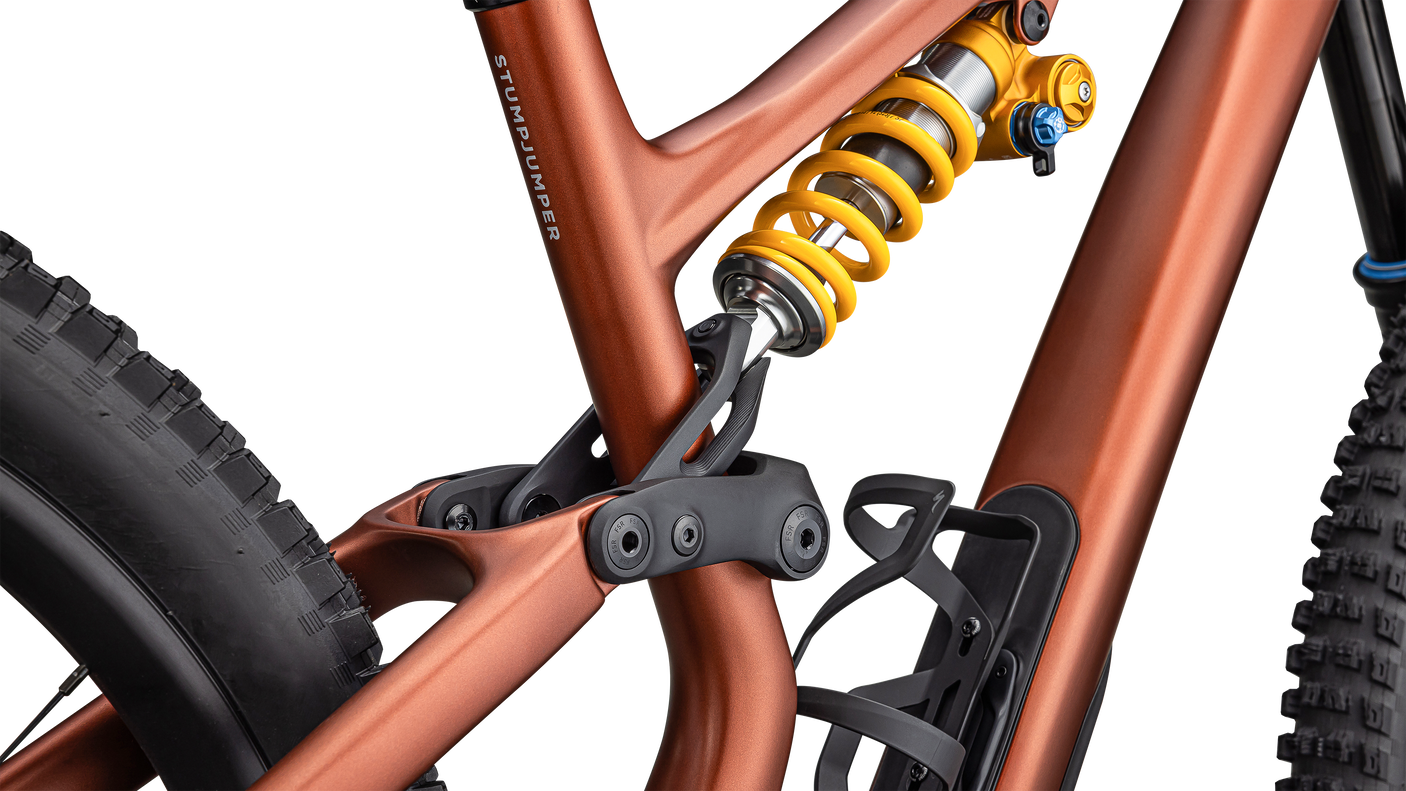

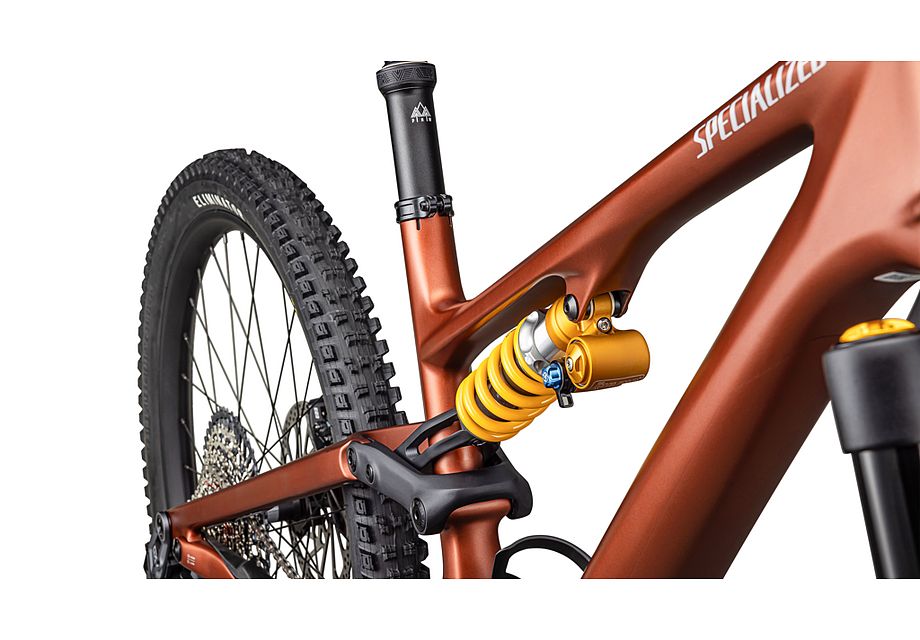

- Rear Shock
- Öhlins TTX 22 M Coil, Ride Dynamics trail tune, external rebound adjust, external high and low speed compression adjustment, 210x55, S2: 434lbs, S3: 480lbs, S4: 525lbs, S5: 571lbs, S6: 605lbs
- Front Brake
- TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm
- Rear Brake
- TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm
- Chain
- SRAM GX Eagle Transmission Flattop Chain
- Cassette
- SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
- Bottom Bracket
- SRAM DUB, BSA 73mm Wide, Threaded
- Shift Levers
- SRAM AXS POD Controller
- Crankset
- SRAM GX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm
- Rear Derailleur
- SRAM GX Eagle Transmission Derailleur
- Rims
- Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5
- Front Hub
- DT Swiss 370, 15x110mm, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Rear Hub
- DT Swiss 370, 12x148mm, 32h
- Rear Tire
- Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
- Spokes
- Sapim Force
- Inner Tubes
- Standard, Presta valve
- Front Wheel
- TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS
- Rear Wheel
- TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS
- Saddle
- Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
- Stem
- Deity, 35mm clamp, 35mm length
- Grips
- Diety, Supracush, Black

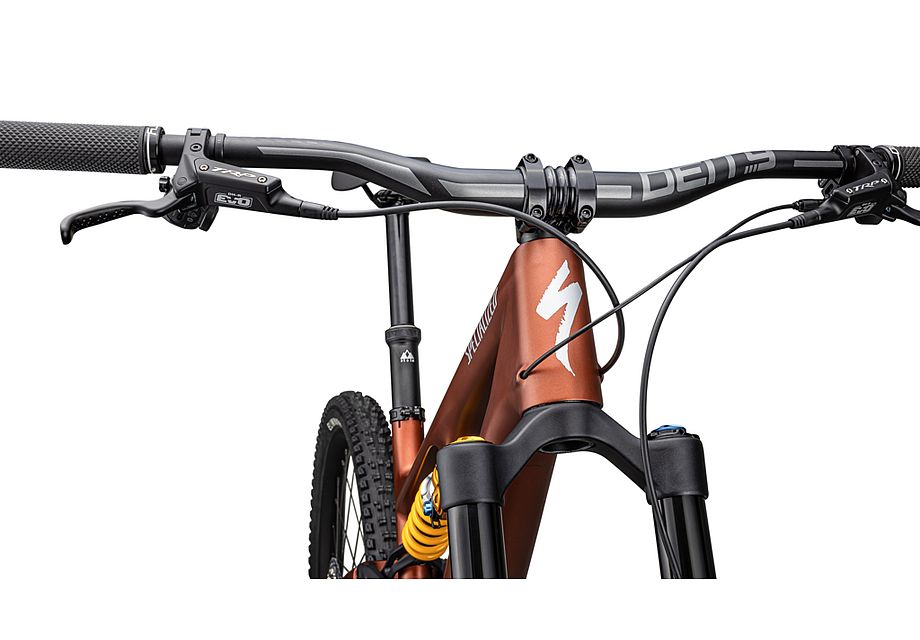

- Handlebars
- Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise; S3-S6: 38mm rise
- SeatPost
- PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm
- Pedals
- PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED
- Product ID
- 221405
- Weight
- 15.30kg (33 lb, 11.7 oz)
- Weight Size
- S4
S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|
Crank Length | 165 | 165 | 170 | 170 | 170 |
Handlebar Width | 810 | 810 | 810 | 810 | 810 |
Stem Length | 35 | 35 | 35 | 35 | 35 |
Saddle Width | 155 | 143 | 143 | 143 | 143 |
Seatpost Length | 150 | 170 | 200 | 200 | 200 |
Stack | 621 | 630 | 644 | 657 | 671 |
Reach | 420 | 445 | 470 | 495 | 525 |
Headtube Length | 100 | 110 | 125 | 140 | 155 |
Headtube Angle | 64 | 64 | 64 | 64 | 64 |
BB Height | 340 | 340 | 340 | 340 | 340 |
BB Drop | 35 | 35 | 35 | 35 | 35 |
Trail | 134 | 134 | 134 | 134 | 134 |
Fork Length (full) | 573 | 573 | 573 | 573 | 573 |
Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
Front Center | 755 | 785 | 816 | 848 | 884 |
Chainstay Length | 432 | 432 | 432 | 442 | 442 |
Wheelbase | 1186 | 1216 | 1247 | 1288 | 1325 |
Top-tube Length (horizontal) | 574 | 596 | 625 | 649 | 678 |
Bike Standover Height | 751 | 745 | 745 | 745 | 751 |
Seat Tube Length | 385 | 405 | 425 | 445 | 465 |
Seat Tube Angle | 76.5 | 76.5 | 76 | 76 | 76 |
Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
Max Seatpost Insertion | 245 | 255 | 255 | 285 | 285 |
Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
